CI68BB/200VAC/LESS HULL UNIT/B

Doppler Speed Log & Current Indicator Ref : IMD02678043

BLACK BOX CURRENT INDICATOR 244 kHz

PRICE : NC

Find a dealer

Description

FISHING OR SURVEY VESSELS

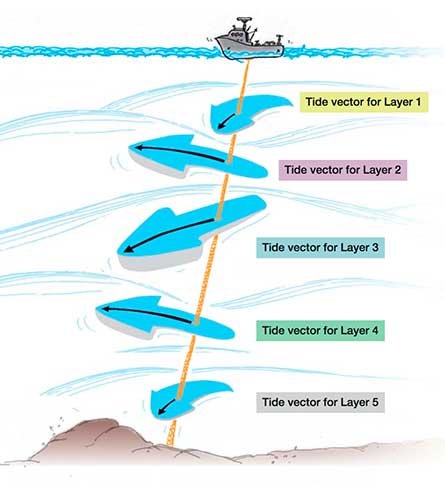

CI68 is able to identify direction and speed of the current on five different points of sea depth called strata or layers. Thanks to this information it is possible to predict the positioning of the fishing net and its movement. The CI68 is equipped with a triple beam transducer capable of providing very accurate measurement of current and speed through the water. Thanks to this device it is possible to contrast the effects of rolling, pitching and rising caused by the waves thanks to a precise and reliable datum. If you are in deep waters where it is not possible to detect the depth of the seabed, the data is calculated through the position and speed provided by the on-board GPS, while the direction data comes from the satellite compass or gyrocompass

vectors

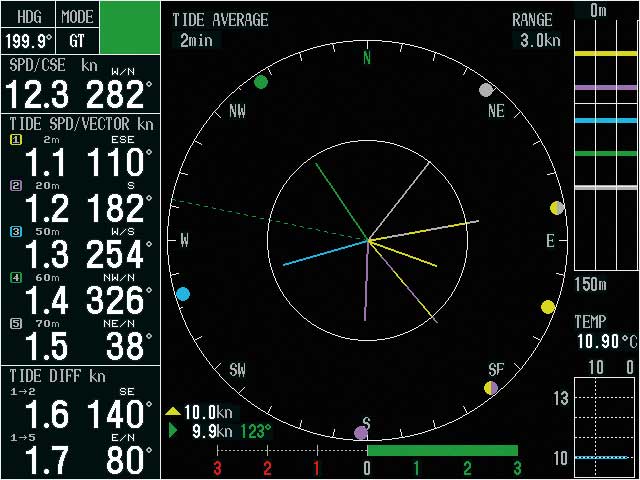

The speed and direction of the current for each of the five different layers is displayed graphically as a vector. The depth of each layer can be set manually with one meter interval between one and the other

speed and direction

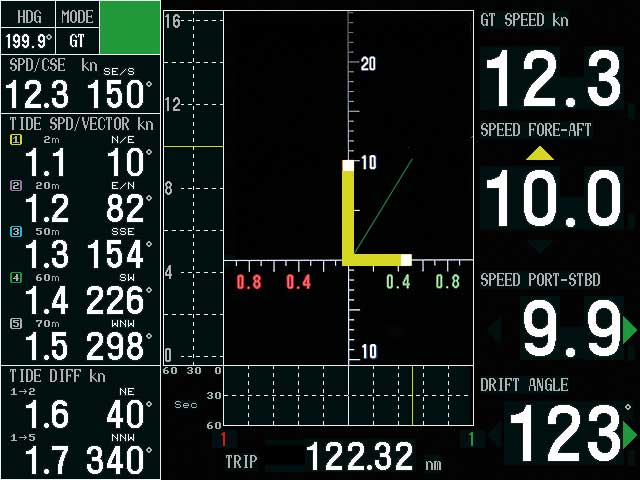

CI68 is able to provide sensitive data such as speed and direction in order to make the best evaluations for tacking operations. Speed is selectable between ground speed and water speed

Product advantages

Compact 3-unit design for ease of installation and maintenance
High definition 10.4" color LCD
Black box system configuration allows for use of optional CRT or LCD monitors
Continuous display of tide speed and direction at five different depth layers
Triple-beam system for less error in tide current detection
True tide current presentation with external GPS navigator and Satellite compass

Features

Obtain highly accurate water current measurements using FURUNO's reliable acoustic technology. The CI-68 displays tide speed and direction at three depth layers and ship's speed on a high definition 10.4color LCD.

In the box

1 x Transceiver Unit CI-6810
1 x Control Unit CI-6888
1 x Junction Box CI-630
1 x Cable Assembly 20 m
1 x Installation Materials

Technical characteristics

Frequency : 244 kHz
Power input : 100-240 V
Resolution : 640 x 480 Pixels
RGB OUTPUT : 1
Type : CURRENT INDICATOR

Parts and accessories

00006999900	DC/AC INVERTER TR-2451 -	NC
00144150000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159680000	NC
00003374200	MU-100C-CI MONITOR UNIT	NC
00144151000	4P CABLE Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159681000	940,60 € With VAT (22%)
00144152000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159682000	NC
00144153000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159683000	NC
00144154000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4 - Replaced by 00159684000	NC
00150992000	CP66-02201 INSTALLATION MATERIALS FOR J-BOX	NC
00159680000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4	NC
00159681000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4	NC
00159682000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4	NC
00159683000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4	NC
00159684000	Z-6FVNV-SX-C 3P+1PLF 4 PAIR CABLE 66S1067-4	NC
00655626000	KIT MONTAGGI CNTR UNIT CI68/88 CONTROL UNIT MOUNTING KIT FP06-01120 PER CI-68/88	NC
00655632000	KIT MONTAGGIO INCASSO CI68/88 OP06-18 CONTROL UNIT FLUSH MOUNT KIT	NC
00691668000	FP66-00601 BRACKET ASSEMBLY V TYPE	NC
00692733000	CP66-00703 INSTALLATION MATERIALS FOR J-BOX	NC
00014608800	Z-6FVNV-SX-C 15M CABLE 3P+1P - Replaced by 00159682000	NC
00006848300	MU-100C MONITOR UNIT CH-250 - Replaced by 00003374200	NC
00002914600	CI-630-CS JUNCTION BOX 10M CBL COLLEGAMENTO TRASDUTTORE CI-68/88 DS-80/85	NC
00014608600	Z-6FVNV-SX-C 5M CABLE 3P+1P - Replaced by 00159680000	NC
00014608700	Z-6FVNV-SX-C 10M CABLE 3P+1P - Replaced by 00159681000	NC
00014608900	Z-6FVNV-SX-C 20M CABLE 3P+1P - Replaced by 00159683000	NC
00014609000	Z-6FVNV-SX-C 30M CABLE 3P+1P - Replaced by 00159684000	NC

00007001500	CI-620-1-68 TRASDUTT 10M CI68 CAVO 10M PER CI-68 CI-68	NC
00007001600	CI-620-2-68 TRASDUTT 20M CI68 CAVO DA 20M PER CI-68 CI-68	NC
00124056000	66S1238 10M CABLE EQUIPE	618,59 € With VAT (22%)
00124058000	66S1238 30M CABLE ASSEMBLY 66S1238-0	1 280,49 € With VAT (22%)
00124059000	CABLE ASSEMBLY 66S1238 50M 66S1238-0	1 987,99 € With VAT (22%)
00006975400	CI-620-K-F TUBO PASSA-SCAFO PER CI-60/68 PER SCAFO IN FRP	NC
00130867000	66S1239-2 10M CABLE ASSEMBLY 66S1239-2	432,03 € With VAT (22%)
00006975300	CI-620-K-S TUBO PASSA-SCAFO PER CI-60/68 PER SCAFO ACCIAIO -	NC
00006975200	CI-620-T-F TANK TRASDUTT CI-68 TANK PER CI-60/68 PER SCAFO IN FRP	NC
00006975100	CI-620-T-S TANK TRASDUTT CI-68 TANK PER CI-60/68 PER SCAFO IN ACCIAIO	NC
00130868000	66S1239-2 5M CABLE ASSEMBLY 66S1239-2	346,21 € With VAT (22%)
00014849300	66S1239-0 5M CABLE ASSEMBLY CI-6888/MU-100C - Replaced by 00130868000	NC
00014849800	66S1239-0 10M CABLE ASSEMBLY CI-6888/MU-100C - Replaced by 00130867000	NC

00124057000	66S1238 20M CABLE EQUIPE	NC
00002730800	CI-6888-5E UNITE DE CONTROLE	NC
00007000600	CI-6810-E-200 TRANSCEIVER	NC
00006983500	CI-630-A BOITE DE JONCTION	NC

00701321000	66P3922(LF) PTX6 TX MODULE CI-6810	3 577,83 € With VAT (22%)
00701324000	66P3932(LF) PPW6 POWER SUPPLY ASSEMBLY CI-6810	2 729,37 € With VAT (22%)
00701308000	66P3924(LF) PCN PRINTED CIRCUIT BOARD CI-6810/8810	1 581,78 € With VAT (22%)
00655793000	MU-100C/101C PNL/FIL FRONT BEZEL WITH FILTER PANEL/FILTER	934,95 € With VAT (22%)
00289200000	66P3920(LF) PCP PRINTED CIRCUIT BOARD CI-6810	3 787,39 € With VAT (22%)
00016052910	VA-25 RUBBER PACKING -	18,84 € With VAT (22%)
00014848700	66S1238-0 20M CABLE ASSEMBLY CI-68/88 - Replaced by 00124057000	903,87 € With VAT (22%)
