DRS12A-XCLASS

Radars Antennas Ref : IMD03416000

12kW, 96 n.m., UHD Digital Radar for TZtouch and TZtouch2, less 3.5', 4 or 6 antenna and, cable.

PRICE : 7 185,80 € With VAT (22%)

Find a dealer

Description

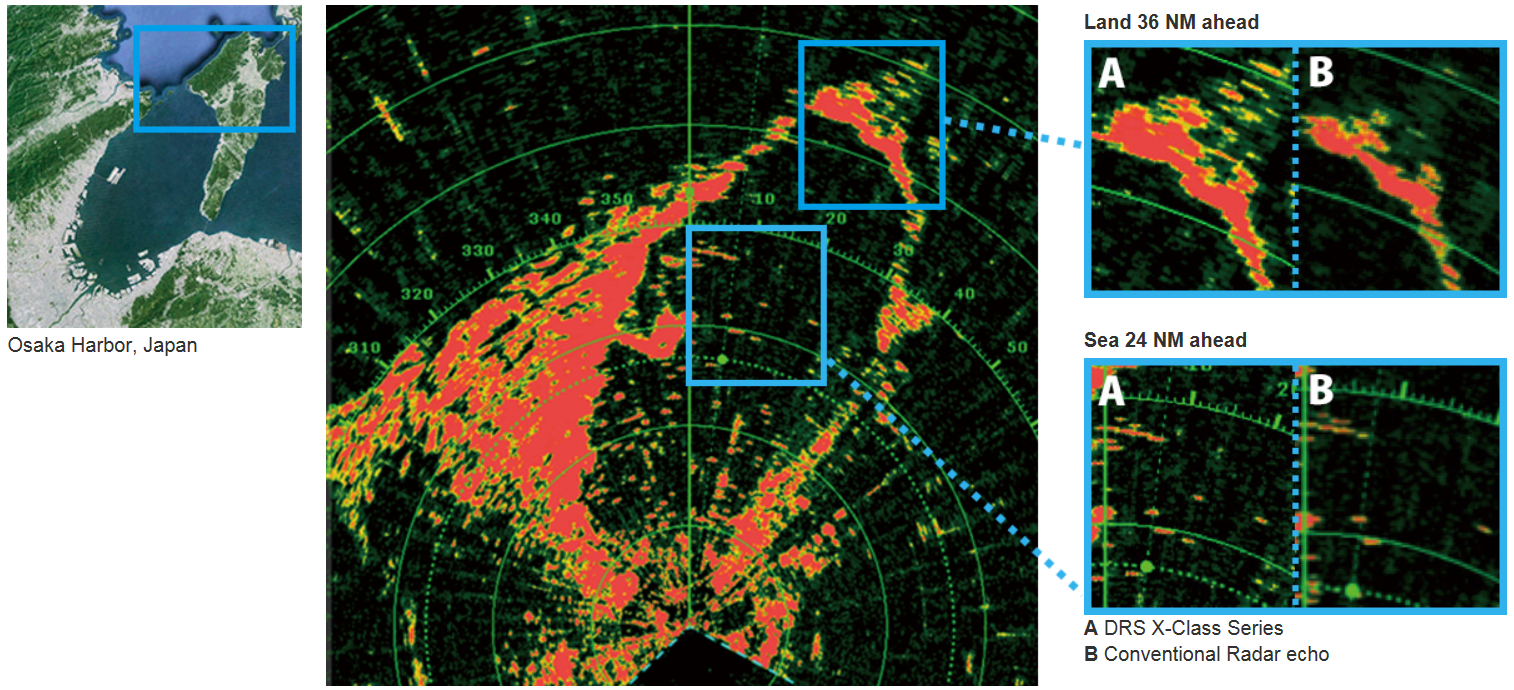

Long and short range performance improved

With an excellent long range performance, you can even spot land masses in detail at great distances.

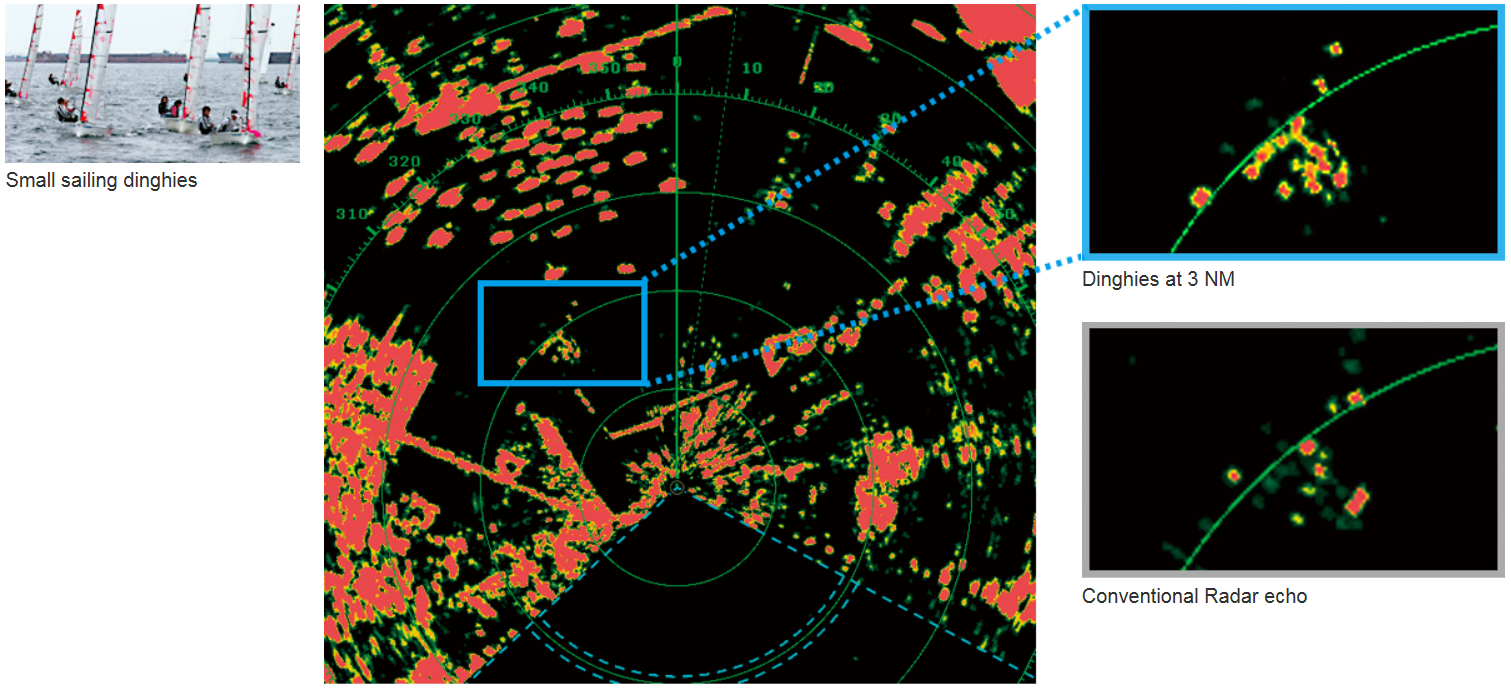

Excellent target separation at short range

Improved short range detection gives you unprecedented target separation for use in identifying hazardous targets.

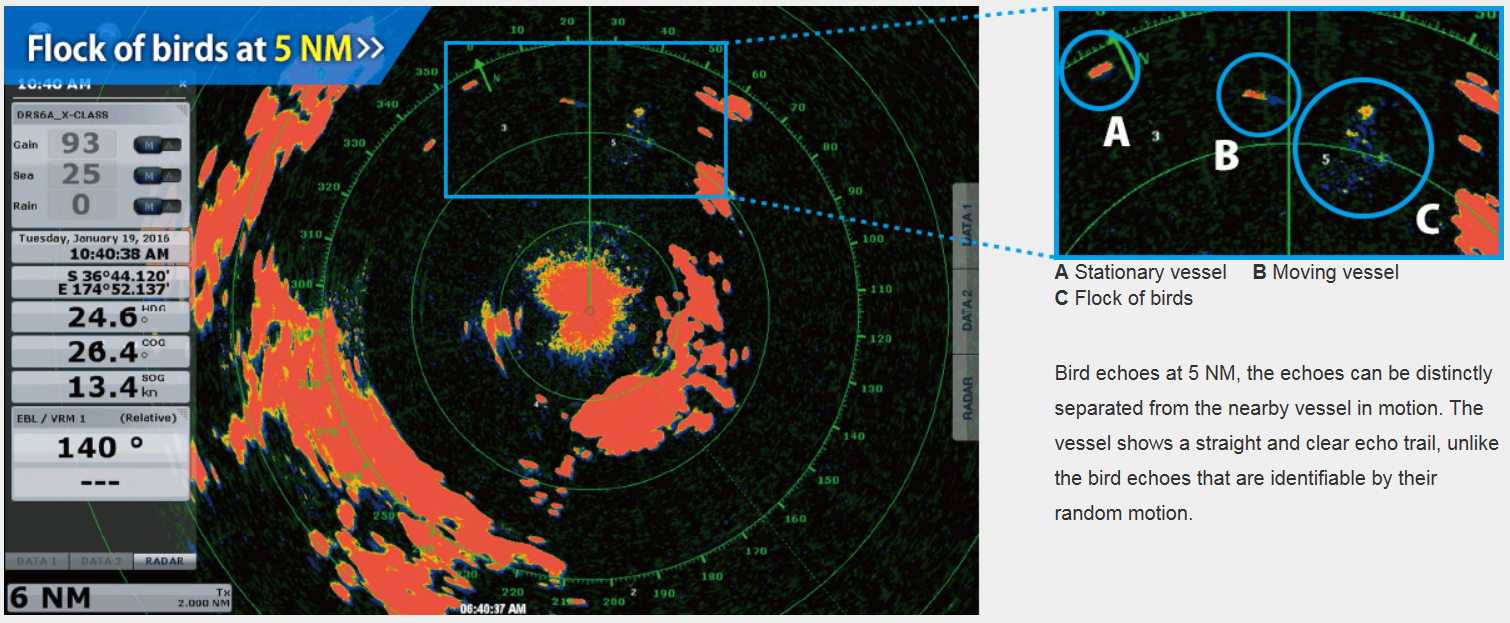

Spot flocks of birds far away, incredible performance without compromise

Bird echoes at 5 NM, the echoes can be distinctly separated from the nearby vessel in motion. The vessel shows a straight and clear echo trail, unlike the bird echoes that are identifiable by their random motion.

Product advantages

Pushing the boundaries of what is possible with conventional Radar technology, the DRS X-Class Series mark yet another leap forward for FURUNO. Improved in almost all aspects features improved short range detection, as well as an impressive long range detection. Utilizing technology previously only available on rugged commercial-grade radars, the X-Class offers stunning performance and reliability. For the fisherman, the new "Bird Mode" on NavNet TZtouch and FR gives you incredible bird detection performance.

Advantages :

Enhanced target detection, both short and long range
Minimum detection range of 20 m approx.
Fast Target Tracking™, display up to 30 targets simultaneously
Instant target vectors show heading and speed info with Fast Target Tracking™
Bird Mode, track birds to find the best fishing grounds
Moving targets (vessels and birds) display targets trails for easy identification
Choose antenna size from 3.5', 4' or 6'
New gearbox pedestal unit is 20% lighter than previous DRS Series unit, updated low noise motor
No PSU unit required, simple installation

Features

Antenna Size: 3.5 ft or 4 ft or 6 ft
Antenna Type: Open Array
Band: X-Band
Display Size: Supplied Separately
Display Type: Supplied Separately
Power Usage: 24 VDC
Power Output: 12 kW
Range: 96 nm

In the box

1 X Scanner Unit RSB-134-113
1 X Installation Materials
Spare Parts

Technical characteristics

Antenna Rotation Speed : 24/36/48 RPM
Beam : 1.9/1.4 °
Functions : Target Analyser + RezBoost + Bird Mode
Power : 12k W
Power input : 24 V
Range : 96 NM
Size : 4'/6'
Solid-State : Magnetron
Type : Open
Weight : 21/23 Kg
Size : 4/6 ft

Videos

FURUNO Marine RADAR DRS X-Class series

Parts and accessories

00001348600	PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT	750,30 € With VAT (22%)
SW-PMA-57-M1	PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7"""	NC
00116790010	LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181	151,72 € With VAT (22%)
00116789010	MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB	89,06 € With VAT (22%)
00116788010	LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181	83,94 € With VAT (22%)
00016714010	JOINT BOX TL-CAT-012 -	37,66 € With VAT (22%)
00110578010	M12-05BFFM-010 M12-05BFFM-010 19S1163	64,56 € With VAT (22%)
00110580010	M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000	94,43 € With VAT (22%)
SW-ADA-R1	ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE	NC

00003308500	CP03-37430 30MT ANTENNA CABLE WITH FUSE DRS12A/25A_X CLASS DRS12A/25A_ X CLASS FURUNO - Replaced by 00151268000	366,93 € With VAT (22%)
00003308400	CP03-37420 20MT ANTENNA CABLE WITH FUSE DRS12A/25A_X CLASS DRS12A/25A_ X CLASS FURUNO	245,61 € With VAT (22%)
00003308300	CABLE 15M(DRS12A/25A_X) CABLE 15M DRS12A/25A_X - Replaced by 00151262000	209,83 € With VAT (22%)
XN12A	XN12A	1 403,00 € With VAT (22%)
XN13A	XN13A 6' (FR8065/FR8125/XCLASS/DRS12A)	2 379,00 € With VAT (22%)
00003308200	CP03-37400 10M CABLE 10M DRS12A/25A_XCLASS - Replaced by 00151260000	148,50 € With VAT (22%)
