DS60
Doppler Speed Log & Current Indicator Ref : IMD02940003Doppler Speed Log 3-Axis IMO 8.4" 320 kHz
PRICE : NCDescription
REAL TIME INFORMATION

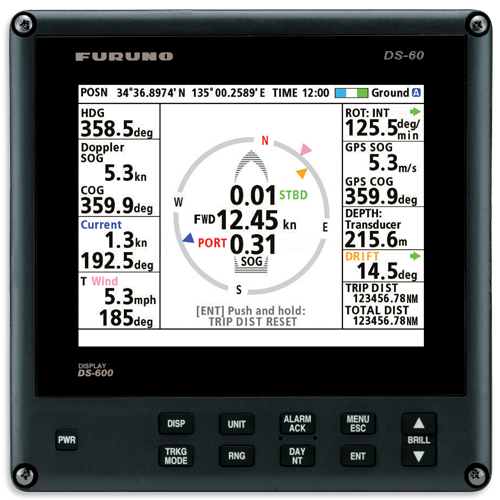

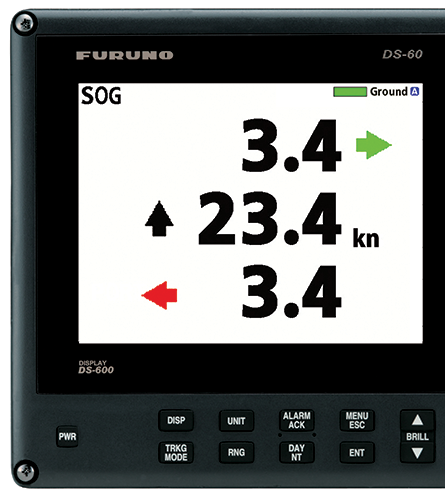

DS60 is a IMO MSC.36(63 )compliant Doppler Sonar IMO MSC.36(63), MSC.96(72), A.694(17) and A.824(19) designated for units greater than or equal to 50,000 GT, capable of providing sensitive information on vessel mooring and docking operations. The 8.4-inch color LCD display provides alphanumeric and graphical data with three operating modes: speed on the three axes, mooring and navigation data. For installation on starboard or port fins, an optional display protection box with IP56 degree of protection is available.

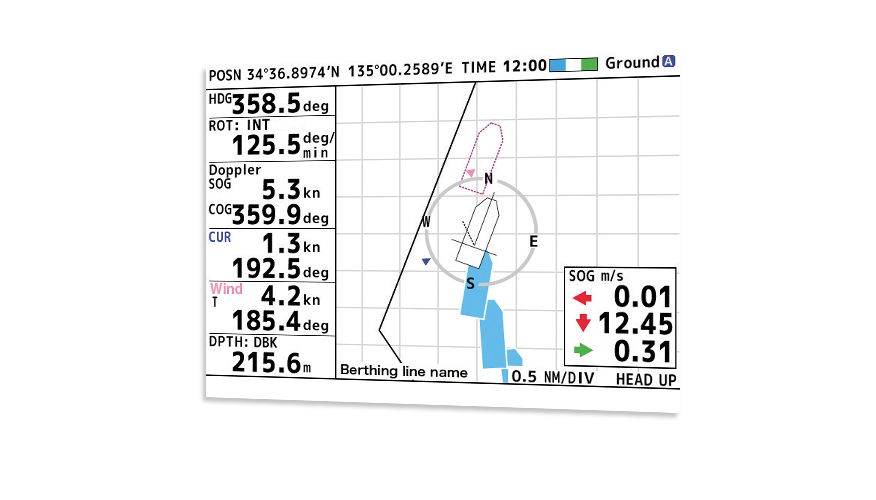

MOORING ASSISTANCE AND SAFE NAVIGATION
DS-60 is able to provide a series of parameters related to the boat's speed. Speed can be measured relative to the ground or to the water by providing data from different directions (bow-stern or starboard-port). The leeway measurement capability is vital when docking large vessels or navigating narrow channels.
SMALL HULL DIMENSIONS FOR SIMPLE INSTALLATION
Compared to previous models, DS60 is equipped with a smaller unit on the hull which facilitates installation by reducing time. The compact high frequency transducer is capable of providing information from both a longitudinal (stern-bow) and transverse (starboard-port) reading of speed under the keel.
Product advantages
- Full compliance with IMO MSC.36 (63), MSC.96 (72), A.694 (17) and A.824 (19), required for vessels of 50,000 GT and above
- Provides high precision measurements needed for mooring and docking maneuvers.
- The 3-beam transmission reduces the effects of vessel pitching and rolling for accurate measurements.
- Ground tracking speed measurement range up to 200m.
- The installation workload has been greatly reduced thanks to its compact transducer.
- The 8.4-inch color LCD display offers high readability and real-time information in both graphics and alphanumerics.
- Remote controller and dimmer controller available. (optional supply)
- Waterproof display box for wing installation. (optional supply)
- Additional remote display can be selected from color LCD (DS-600 / RD-50) and red LED displays. (RD-20)
- Waterproof connector available for transducer. (selectable based on the purchase order)
Features
FURUNO DS-60 Doppler sonar provides accurate real-time vessel motion and water speed information for safe mooring and docking operations
In the box
1 x Display Unit
1 x Transceiver Unit
1 x Distribution Uni
Technical characteristics
Frequency : 320 kHz
Power input : 100-240 V
Resolution : 640 x 480 Pixels
Screan size : 8.4
Type : LOCH DOPPLERS
Parts and accessories
| 00001619700 | Remote controle (RD20 / RD50) | NC |
| 00001619800 | DIMMER (RD20/ RD50) | NC |
| 00001631300 | Bracket (RD50) | NC |
| 00001639800 | DS-605-R SCATOLA STAGNA WATERPROOF BOX PER DISPLAY DS-60 & RD-50 | NC |
| 00003869700 | DS-662-AB-N-TA BALL VALVE DS-60 | 16 381,10 € With VAT (22%) |
| 00003869600 | DS-662-LR-N-TA BALL VALVE DS-60 | 16 381,10 € With VAT (22%) |
| 00003869500 | DS-662-DG-N-TA BALL VALVE DS-60 | 16 381,10 € With VAT (22%) |
| 00003869400 | DS-662-NK-N-TA BALL VALVE DS-60 | 16 381,10 € With VAT (22%) |
| 00003869800 | DS-662-BV-N-TA BALL VALVE DS-60 | NC |
| 00003869900 | DS-662-KR-N-TA BALL VALVE DS-60 | 16 381,10 € With VAT (22%) |
| 00108295000 | OP66-7 HANDLE ASSEMBLY | NC |
| 00693114000 | FE-90 ANALOG DISPLAY | NC |
| 00001599710 | FL-200S-1 INDICATORE ANALOGICO ANALOG INDICATOR | NC |
| 00001672700 | DS-605-L SCATOLA STAGNA WATERPROOF BOX PER DISPLAY DS-60 & RD-50 | NC |
| 00001644900 | DS-661-NK-N-TA GATE VALVE DS60 GATE VALVE TRASDUTTORE DS-60 DS-60 | NC |
| 00001640000 | OP66-6 FLANGE ASSEMBLY DS-660 | NC |
| 00001639600 | DS-640-S JUNCTION BOX DS-60 JUNCTION BOX | NC |
| 00001638900 | DS-660-A-NK CARENAGE POUR SONDE | NC |
| 00001638800 | DS-660-A TRANSDUCER TANK | NC |
| 00001638100 | DS-660-N-NK TRANSDUCER TANK | NC |
| 00001621700 | DS-645B JUNCTION BOX DS-60 | NC |
| 00001619900 | DS-645A JUNCTION BOX DS-60 | NC |
| 00001617200 | DS-670 RATE-OF-TURN GYRO DS-60 | NC |
| 00001616410 | SL-200-2 INDICATEUR ANALOGIQUE | NC |
| 00001600010 | SL-200-1 INDICATORE ANALOGICO ANALOG INDICATOR | NC |
| 00001599810 | FL-200S-2 ANALOG INDICATOR | NC |
| 00001635000 | DS-630-S-50M TRASDUTTORE DS-60 CON CAVO DA 50M DS60 - Replaced by 00003433200 | 11 563,12 € With VAT (22%) |
| 00003433300 | DS-630-S-60M TRANSDUCER DS-60 | NC |
| 00003434100 | DS-631-S-60M TRANSDUCER W/WATERTIGHT CON DS-60 | NC |
| 00003434000 | DS-631-S-50M TRANSDUCER W/WATERTIGHT CON DS-60 | NC |
| 00003433900 | DS-631-S-40M TRANSDUCER W/WATERTIGHT CON DS-60 | NC |
| 00003433800 | DS-631-S-30M TRANSDUCER W/WATERTIGHT CON DS-60 | NC |
| 00003433200 | DS-630-S-50M TRANSDUCER DS-60 | NC |
| 00003433100 | DS-630-S-40M TRANSDUCER DS-60 | 11 630,92 € With VAT (22%) |
| 00003433000 | DS-630-S-30M TRANSDUCER DS-60 | NC |
| 00001638000 | DS-660-N TANK TRASDUTTORE DS60 TRANSDUCER TANK | NC |
| 00001631700 | DS-600-S DISPLAY UNIT DS-60 DISPLAY UNIT SENZA STAFFA - | NC |
| 00001634000 | DS-620-S TRANSCEIVER | NC |
| 00002759700 | DS-610-E-S DISTRIBUTOR | NC |
| 00102645000 | KNOB(N2.5) KNOB MFDBB | 44,38 € With VAT (22%) |
| 00109793000 | 66P3960(LF) MAIN PRINTED CIRCUIT BOARD DS-620 | 8 456,87 € With VAT (22%) |
| 00109807000 | DS-600 PNL/LCD FACE AVANT AVEC LCD - - Replaced by 00153109000 | 1 264,35 € With VAT (22%) |
