Antenna Rotation Speed
Power
Range
Size
Description

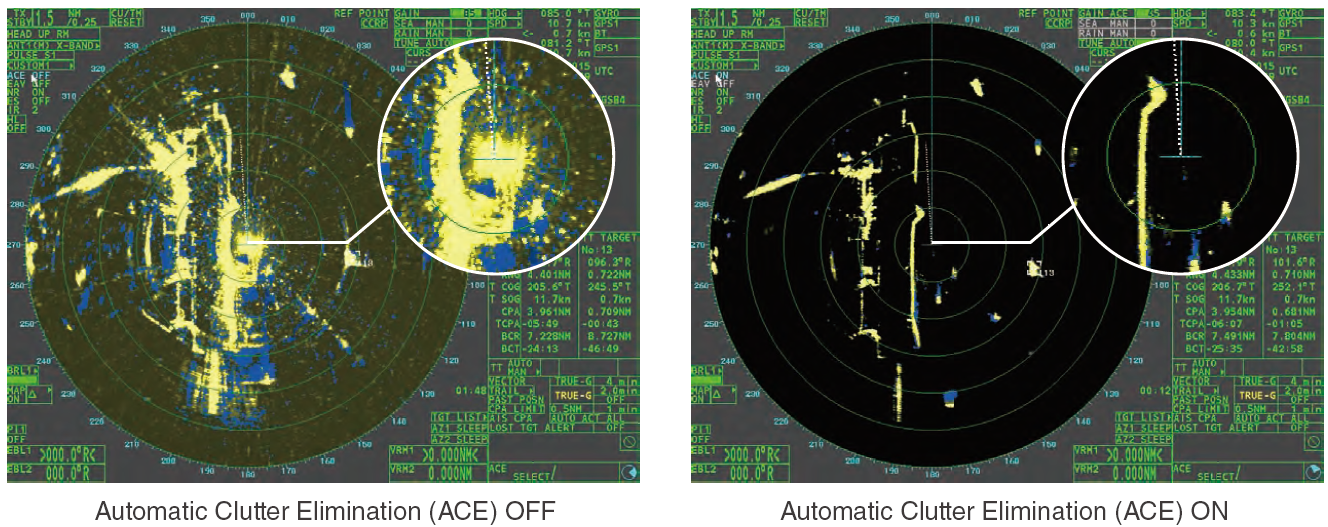

Automatic Clutter Elimination (ACE)
Quickly adjust the radar image with the push of a single button press. When the ACE function is activated, the system automatically adjusts clutter reduction filters and gain control according to the sea and weather conditions selected by the user (calm/rough sea/hard rain).

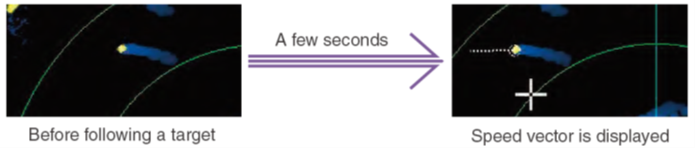

Fast Target Tracking (ARPA)
It only takes a few seconds after a target has been selected, that a speed and course vector is displayed.
With accurate tracking information, estimation of other vessel's course and speed is made easier.

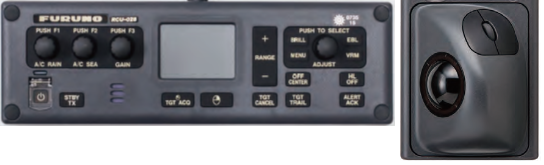

Easy to operate control unit
Simple and efficient operation is made possible with individual knobs for setting gain/rain/sea clutter suppression, as well as a RotoKey and touch panel. The optional trackball unit, as well as a regular USB mouse, can also be used.
Product advantages
- Automatic Clutter Elimination (ACE)
- Fast Target Tracking (ARPA)
- Scalable Ethernet Network System
- Easy User Inteface
Features
High performance Radar with Cat.2 (500 - 10,000 GT) and Cat.3 (< 500 GT) support
Technical characteristics
Antenna Rotation Speed : 26/48 RPM
DVI OUTPUT : 1
Power : 25k W
Power input : 24/100-230 V
Range : 96 NM
Resolution : 1024 x 768 Pixels
RGB OUTPUT : 1
Size : 4/6.5/8 ft
Parts and accessories
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00002515900 | PR-850A ALIMENTATION AC/DC FS2570-75/FS5070-75 | NC |
| RCU-030 | RCU-030 TRACKBALL CONTROL UNIT USB PER ECDIS & RADAR - | NC |
| 00002785800 | RCU-028 CONTROL UNIT | NC |
| 00002871000 | RSB-120-100-1 AERIEN | 7 907,28 € With VAT (22%) |
| 00002871100 | RSB-121-100-1 AERIEN | 9 710,99 € With VAT (22%) |
| 00002871200 | RSB-120-101-1 AERIEN | 12 003,76 € With VAT (22%) |
| 00002871300 | RSB-121-101-1 SCANNER UNIT FAR-1427/1528BB | NC |
| 00003042000 | RU-1803 700DOT8-6 AC440V-AC110V | 1 355,81 € With VAT (22%) |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003044300 | RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V | 1 276,72 € With VAT (22%) |
| 00003049700 | RU-3424 ALIMENTATION AC/DC 220VAC--->24V | 2 259,68 € With VAT (22%) |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| HUB-100 | HUB-100 SWITCH RESEAU LAN FAR-28X7 | NC |
| 00015794310 | MJ-A3SPF0024-035C CABLE ASSEMBLY 08S0358-1 | NC |
| 00017895210 | TS-10-066 CABLE ASSEMBLY 02S100580 | NC |
| 00108085000 | OP26-4 KIT MONTAGGIO A INCASSO FLUSH MOUNT KIT MU-150HD - Replaced by 00149745000 | NC |
| 00110362010 | RW-4864 *1M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110363010 | RW-4864 *5M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110364010 | RW-4864 *10M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110365010 | RW-4864 *15M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00113296010 | DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4 | NC |
| 00113398010 | DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658 | 912,35 € With VAT (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € With VAT (22%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 89,06 € With VAT (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € With VAT (22%) |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| PM32 | PERFORMANCE MONITOR FAR-15X8 PM-32A PER RADAR FAR-15x8 RSB-120/121 | NC |
| 00149745000 | OP26-36 FLUSH MOUNT KIT MU-152 | NC |
| 00157811000 | TM000-FDX06_TXRX_30M DVI/USB_REPEATER 86S000050 | NC |
| 00157812000 | TM000-FDX06_RX DVI/USB_REPEATER 86S000050 | NC |
| 00157813000 | TM000-FDX06_TX DVI/USB_REPEATER 86S000050 | NC |
| 00157814000 | WO2511 30M CABLE ASSEMBLY 86S000050 | NC |
| 00157815000 | WO2512 50M CABLE ASSEMBLY 86S000050 | NC |
| 00157816000 | WO2513 100M CABLE ASSEMBLY 86S000050 | NC |
| 00157817000 | TM000-FDX06_TXRX_50M DVI/USB_REPEATER 86S000050 | NC |
| 00157818000 | TM000-FDX06_TXRX100M DVI/USB_REPEATER 86S000050 | NC |
| 00157819000 | TM000-FDX06_TXRX DVI/USB_REPEATER 86S000050 | NC |
| 00158956000 | TS-10-068 CABLE ASSEMBLY 86S000070 | NC |
| 00854246000 | CP03-28901 CONNECTEUR | 60,52 € With VAT (22%) |
| 00107722010 | 3COX-2P-6C CAVO VGA RGB 10M 3COX-2P-6C 10M 10S2195 | 251,32 € With VAT (22%) |
| 00107723010 | 3COX-2P-6C CAVO VGA RGB 5M 3COX-2P-6C 5M 10S2195 | 178,12 € With VAT (22%) |
| 00142344000 | RW-0030 CAVO ANT 15M FAR-15x8 RW-0030 L15M FAR-1518/1528 03S000300 | NC |
| 00142345000 | RW-0030 CAVO ANT 20M FAR-15x8 RW-0030 L20M FAR-1518/1528 03S000300 | NC |
| 00142346000 | RW-0030 CAVO ANT 30M FAR-15x8 RW-0030 L30M FAR-1518/1528 03S000300 | NC |
| XN20AF | RADIATEUR XN20AF 6.5FT (FR1510MK3/FR2115/FAR2117/FAR1518) - Replaced by 00163361000 | NC |
| XN24AF | XN24AF RADIATEUR 8FT 8FT | NC |
| 00019229910 | RW-0030 L100M 29 CORE CABLE 03S000300 | 6 052,73 € With VAT (22%) |
| 00019239110 | RW-0030 L200M 29 CORE CABLE 03S000300 | 12 098,19 € With VAT (22%) |
| 00019239210 | RW-0030 L300M 29 CORE CABLE 03S000300 | 18 143,64 € With VAT (22%) |
| 00111082000 | RSB-120/121 R-JOINT ROTARY JOINT ASSEMBLY | 587,52 € With VAT (22%) |
| 00111083000 | 03-2291(SWITCH-R2P) SWITCH ASSEMBLY RSB-120/121 | 369,89 € With VAT (22%) |
| 00111085000 | 03-2295(MOTOR P2P) SCANNER MOTOR W/CONNECTOR RSB-120 | 1 265,42 € With VAT (22%) |
| 00111086000 | 03-2296(MOTOR P2P) SCANNER MOTOR W/CONNECTOR RSB-121 | 3 411,72 € With VAT (22%) |
| 00111088000 | RTR-101 TRANSCEIVER UNIT | 6 592,62 € With VAT (22%) |
| 00111096000 | 03-2302(FAN-2P) BL-XH CONNECTOR ASSEMBLY RTR-100/101 | 517,84 € With VAT (22%) |
| 00111134000 | RTR-100/101 AMP ASSY AMP CASE ASSEMBLY | 4 483,85 € With VAT (22%) |
| 00113016000 | 03P9347A(LF) BP PLATINE RSB-96/7/103/109 - Replaced by 00161669000 | 222,74 € With VAT (22%) |
| 00113211000 | 03P9507A(LF) MD PLATINE MODULATEUR RTR-101 w/RT-9023 - Replaced by 00154494000 | 1 549,50 € With VAT (22%) |
| 00113221000 | 03P9506D(LF) RFC PRINTED CIRCUIT BOARD RTR-101 - Replaced by 00161664000 | 1 267,04 € With VAT (22%) |
| 00114622000 | 05-106-5611/12/13 DISTRESS SWITCH COVER ASSY FS-2575C | 80,43 € With VAT (22%) |
| 00116956000 | MU3955N1 BALL TAS4728N1 SP | 233,76 € With VAT (22%) |
| 00116957000 | MU3955N2 RING UNIT TAS4728N1 SP | 227,85 € With VAT (22%) |
| 00116958000 | MU3955N3 BALL&RING UNIT TAS4728N1 SP | 455,71 € With VAT (22%) |
| 00119462000 | 03-2350(10-10P) PH CONNECTOR ASSEMBLY | 42,37 € With VAT (22%) |
| 00128073000 | MU3955N4 BOARD RCU-030 SP | 145,27 € With VAT (22%) |
| 00128074000 | MU3955N5 TAPPING SCREWS RCU-030 | 44,38 € With VAT (22%) |
| 00128075000 | MU3955N6 SEMS SCREW RCU-030 | 44,38 € With VAT (22%) |
| 00141692000 | 24-045(BUZZER-2P) BUZZER ASSEMBLY CHINA | 164,64 € With VAT (22%) |
| 00141701000 | 03-177-2034/#6601-P KNOB (W/D SPRING) CHINA | 66,44 € With VAT (22%) |
| 00142312000 | 03P9576(LF) FIL *NEW PRINTED CIRCUIT BOARD RPU-023/024 | 782,41 € With VAT (22%) |
| 00142315000 | 03P9488 RF TB PLATINE - Replaced by 00161671000 | 601,64 € With VAT (22%) |
| 00142336000 | RSB-120-1/121-1 RB RADIATOR BRACKET WITH BODY W/SCANNER BODY | 5 125,45 € With VAT (22%) |
| 00142338000 | RSB-120-1 LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 4 830,08 € With VAT (22%) |
| 00142339000 | RSB-121-1 LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 6 166,51 € With VAT (22%) |
| 00142508000 | 03P9559(LF)*NEW*X-PM X-PM PCB WITH CASE RSB128/130/120/ | 2 101,51 € With VAT (22%) |
| 00142839000 | RSB-120-1IMO LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 5 912,30 € With VAT (22%) |
| 00142840000 | RSB-121-1IMO LESS RF SCANNER ASSEMBLY LESS RF LESS RF | 7 173,69 € With VAT (22%) |
| 00142841000 | CP03-33402 INSTALLATION MATERIALS RSB-120/121IMO | 154,95 € With VAT (22%) |
| 00142842000 | RSB-120/121-1IMO SCANNER COVER WITH PM-ANT | 2 262,38 € With VAT (22%) |
| 00142846000 | RPU-024 DC FIL DC FIL ASSEMBLY | 1 189,16 € With VAT (22%) |
| 00142847000 | RPU-024 AC FIL AC FIL ASSEMBLY | 1 189,16 € With VAT (22%) |
| 00142848000 | 03P9341C(LF) FIL PRINTED CIRCUIT BOARD | 740,05 € With VAT (22%) |
| 00142849000 | 03P9547A(LF) SPU PLATINE SPU SEULE RPU-024 - Replaced by 00161716000 | 4 270,40 € With VAT (22%) |
| 00142853000 | 03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD RPU-024 - Replaced by 00161719000 | 1 931,49 € With VAT (22%) |
| 00142854000 | SP03-18001 SPARE PARTS RPU-024(DC) | 28,24 € With VAT (22%) |
| 00142855000 | SP03-18002 SPARE PARTS RPU-024(AC) | 28,24 € With VAT (22%) |
| 00142856000 | 03P9528B(LF) KEY PCB PLATINE RCU-028 - Replaced by 00161683000 | 635,53 € With VAT (22%) |
| 00142857000 | RCU-028 PANEL PANEL ASSEMBLY - | 334,38 € With VAT (22%) |
| 00142858000 | CP03-36601 INSTALLATION MATERIALS RCU-028 | 28,24 € With VAT (22%) |
| 00142862000 | 03P9497B(LF) PWR(DC) PRINTED CIRCUIT BOARD | 2 471,26 € With VAT (22%) |
| 00142865000 | 03P9494B(LF) PWR(AC) PRINTED CIRCUIT BOARD | 2 719,15 € With VAT (22%) |
| 00142867000 | 03P9494D(LF) PWR(AC) PRINTED CIRCUIT BOARD | 2 719,15 € With VAT (22%) |
| 00142868000 | 03P9547A(LF) SPU SPU ASSEMBLY - | 4 318,96 € With VAT (22%) |
| 00142870000 | 03P9497B(LF)PWR ASSY PWR ASSEMBLY (DC) RPU-024 | 2 854,60 € With VAT (22%) |
| 00142873000 | 03P9494B(LF)PWR ASSY PWR ASSEMBLY (AC) RPU-024 100-115VAC | 2 854,60 € With VAT (22%) |
| 00142875000 | 03P9494D(LF)PWR ASSY PWR ASSEMBLY (AC) RPU-024 220-230VAC | 2 854,60 € With VAT (22%) |
| 00149916000 | 03-2119(REED SW-2P) SW-XH CONNECTOR ASSEMBLY RSB096/97/103/ | 64,56 € With VAT (22%) |
| 00154487000 | 03P9507B(LF) MD PLATINE MODULATEUR RTR-101 w/RT-9023B - Replaced by 00161678000 | 1 549,50 € With VAT (22%) |
| 00154494000 | 03P9507B(LF)/RT9023B MD PCB SET RTR-101 - Replaced by 00161679000 | 1 955,71 € With VAT (22%) |
| 00155364000 | TB5211 50G ADHESIVE | 48,42 € With VAT (22%) |
| 00155940000 | 03P9347A(LF) BP PRINTED CIRCUIT BOARD FAR2117/2127 NEW - Replaced by 00161669000 | 222,74 € With VAT (22%) |
| 00160547000 | 03-177-2034 KNOB ASSEMBLY | 66,44 € With VAT (22%) |
| 00161431000 | RPU-024/027 DC FIL DC FIL ASSEMBLY CHINA 03P9576 | 1 189,16 € With VAT (22%) |
| 00161664000 | 03P9506D(LF) RFC PRINTED CIRCUIT BOARD CHINARTR101/135 | 1 267,04 € With VAT (22%) |
| 00161669000 | 03P9347A(LF) BP PRINTED CIRCUIT BOARD CHINA 03E2-7420 | 222,74 € With VAT (22%) |
| 00161671000 | 03P9488(LF)RF TB*NEW PRINTED CIRCUIT BOARD CHINA RSB-120/1 | 601,64 € With VAT (22%) |
| 00161678000 | 03P9507B(LF) MD PRINTED CIRCUIT BOARD CHINARTR101/135 | 1 549,50 € With VAT (22%) |
| 00161679000 | 03P9507B(LF)/RT9023B MD PCB SET CHINARTR101/135 | 1 955,71 € With VAT (22%) |
| 00161683000 | 03P9528B(LF) KEY PRINTED CIRCUIT BOARD CHINA RCU-028 | 635,53 € With VAT (22%) |
| 00161716000 | 03P9547A(LF) SPU PRINTED CIRCUIT BOARD CHINA RPU-024 | 4 270,40 € With VAT (22%) |
| 00161718000 | 03P9341C(LF) FIL PRINTED CIRCUIT BOARD CHINA | 740,05 € With VAT (22%) |
| 00161719000 | 03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD CHINA RPU-024 | 1 931,49 € With VAT (22%) |
| 00848718000 | RSB-0074/75/92/96/97 SCANNER COVER ASSEMBLY 103/109/120/121 | 618,59 € With VAT (22%) |
| 00853472000 | 03-2119(REED SW-2P) CONNECTEUR SW-XH RSB-096/97/103 - Replaced by 00149916000 | 64,56 € With VAT (22%) |
