SC130
Compass Ref : IMD0347000D4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy)
PRICE : NCDescription
Precise and accurate Heading
The SC70 and SC130 are the latest satellite compasses built on FURUNO’s commercial-grade technology platform. These satellite compasses prove their value by increasing the accuracy of other devices, such as Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. They provide a highly accurate heading input to these other technologies by utilizing the very latest GNSS (Global Navigation Satellite System). This satellite system is comprised of GPS, Galileo and GLONASS to ensure the highest precision and a continuous coverage.
Bow and Stern monitoring for safe berthing
The Satellite Compass provides a variety of data, including GPS Positioning, SOG (Speed Over Ground), COG (Course Over Ground), ROT (Rate Of Turn) and 3-axis speed (bow, stern and longitudinal). All of these data assist with critical maneuvers, such as berthing. The Compass is maintenance-free - a great asset for any vessel and connects easily into the existing shipboard network via Ethernet connection.
IMO Type Approved as THD, GPS and ROTI
The SC130 provides highly accurate heading data of 0.25° for autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilots. It is ideal for medium to large vessels navigating in crowded ports and making precise maneuvers, such as berthing and docking, and is IMO Type-approved as THD, GPS and ROTI, complying with the IEC/ISO requirements. It features a rapid follow-up rate 40°/s, twice the IMO high-speed craft requirement of 20°/s.
Features
The SC130 has 4.3 Inch Color LCD Display, Satellite Compass with Three GPS Antenna Receivers (0.25 degree Heading Accuracy):
- Display Size: 4.3 inches
- Display Type: Color LCD
- Power Usage: 12-24 VDC

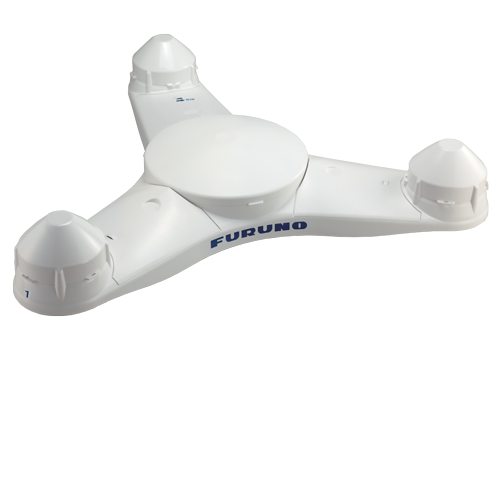

- Receiver Type: 33 inch Tri-Antenna
In the box
1 X Antenna (Supplied without antenna cable)
1 X Display
1 X Junction box
1 X Installation material
Technical characteristics
Brand : FURUNO
Integrated GPS : 3 antennas
NMEA0183 : 9
NMEA2000 : 1 (OPTION)
Power input : 12/24 V
Type : Satellite Compass
Parts and accessories
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € With VAT (22%) |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00142650000 | KIT TENUTA STAGNA DS-8500 OP05-139 WATER PROOF KIT DS85 | 42,70 € With VAT (22%) |
| 00143688000 | OP05-141 F_MOUNT CUSHION KIT | NC |
| 00145982000 | OP20-47 LAN COAX CONV KIT SC-701 - Replaced by 00151611000 | 1 203,29 € With VAT (22%) |
| 00145983000 | OP20-48 LAN COAX CONV KIT SC-703/1303 - Replaced by 00151611000 | 1 149,62 € With VAT (22%) |
| 00145984000 | MPS588-C CONNECTOR | NC |
| 00148287000 | OP20-49 BIRD-REPELLENT FIXTURE | NC |
| 00148507000 | Z-#26X2P+0.3SQX1PL10 3 PAIR CABLE 20S10502 | NC |
| 00148508000 | Z-#26X2P+0.3SQX1PL30 3 PAIR CABLE 20S10502 | NC |
| 00010899700 | FRU-RJ-PLUG-ASSY CONNECTOR 20S10494 - Replaced by 00019231610 | 76,93 € With VAT (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € With VAT (22%) |
| 00124725000 | KIT MONTAGGIO A INCASSO SC-70 FRONT FIXING PANEL FRONT MOUNT KIT | NC |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € With VAT (22%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € With VAT (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € With VAT (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € With VAT (22%) |
| 00151611000 | OP20-47 LAN COAX CONV KIT CHINA SC-701 | 1 203,29 € With VAT (22%) |
| 00151612000 | OP20-48 LAN COAX CONV KIT CHINASC703/1303 | 1 203,29 € With VAT (22%) |
| 00154223000 | OP05-146-1 CABLE ASSEMBLY 5M | NC |
| 00154224000 | OP05-146-2 CABLE ASSEMBLY 10M | NC |
| 00154258000 | OP05-147 CABLE PROTECTION KIT | NC |
| 00159233000 | FRU-NMEA-PMM-02 POUR CONNECTER LE SC70 AU NMEA2000 20S105300 | 44,38 € With VAT (22%) |
| 00438083000 | OP20-36 (FOR OPEN) BIRD-REPELLENT FIXTURE SC-603 (4PCS.) | NC |
| 00438084000 | OP20-37 BIRD-REPELLENT FIXTURE | NC |
| 00110580010 | M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000 | 94,43 € With VAT (22%) |
| 00001010100 | IF-2503 INTERFACCIA SHIP ALARM SYSTEM - Replaced by 00003783100 | NC |
| 00001146900 | IF-NMEASC INTERFACCIA NMEA 0183/2000 SC-30_33_70_130 | 1 398,85 € With VAT (22%) |
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00003331800 | CP20-04300 CAVO LAN 30M ARMATO CON CONNETTORE RJ45 STAGNO PER SC-70/130 | NC |
| 00003331900 | CP20-04310 CAVO LAN 40M ARMATO CON CONNETTORE RJ45 STAGNO PER SC-70/130 | NC |
| 00003332000 | CP20-04320 CAVO LAN 50M ARMATO CON CONNETTORE RJ45 STAGNO PER SC-70/130 | 1 255,38 € With VAT (22%) |
| 00003332300 | CP20-04350 INSTALLATION MATERIALS SC-703/1303 - Replaced by 00003550900 | NC |
| 00003332400 | CP20-04360 CAVO LAN 30M CON CONNETTORE RJ45 STAGNO PER SC-70/130 NON ARMATO | NC |
| 00003550900 | CP20-04300 CAVO LAN 15M CON CONNETTORE RJ45 STAGNO PER SC-70/130 NON ARMATO | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00003783100 | IF-2550-IEC1 DISTRIBUTORE NMEA MULTI-DISTRIBUTOR NMEA0183 CIF/AD-10 E ALLARMI IEC61162-1 | NC |
| 00016860310 | MICRO T-CONNECTOR SS-050505-FMF-TS001 NMEA2000 - Replaced by 00150705000 | 115,40 € With VAT (22%) |
| 00016860510 | TERMINATION RESISTOR(MICRO) LTWMC-05BFFT-SL8001 19S1186-0 - Replaced by 00150706000 | 42,37 € With VAT (22%) |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00110579010 | M12-05BFFM-020 M12-05BFFM-020 19S1163 - Replaced by 00150703000 | 72,64 € With VAT (22%) |
| 00110578010 | M12-05BFFM-010 M12-05BFFM-010 19S1163 | 64,56 € With VAT (22%) |
| 00107703000 | SP26-00101(BOX) SPARE PARTS DS-600/RD-20/50 | NC |
| 00019231610 | FRU-RJ-PLUG-ASSY RJ45 STAGNO CONNETTORE RJ45 TENUTA STAGNA PER SC-70/130 | 14,64 € With VAT (22%) |
| 00019227710 | Z-#26X2P+0.3SQX1PL30 3 PAIR CABLE 20S105020 | NC |
| 00019227610 | Z-#26X2P+0.3SQX1PL10 3 PAIR CABLE 20S105020 - Replaced by 00148507000 | NC |
| 00016860410 | TERMINATION RESISTOR(MICRO) LTWMC-05BMMT-SL8001 MALE NMEA2000 - Replaced by 00150707000 | 42,37 € With VAT (22%) |
| 00152410000 | S-17209-L15 CABLE ASSEMBLY 20S105231 | NC |
| 00147096000 | EDTIC5E350SLA8.815CT SC70 15MT CABLE ASSEMBLY 20S104980 - Replaced by 00152410000 | 429,07 € With VAT (22%) |
| 00147097000 | CAVO LAN 30M CON CONN SC70/130 EDTIC5E350SLA8.830CT CON CONNETTORI RJ45-RJ45 | NC |
| 00152410000 | S-17209-L15 CABLE EQUIPE 15M SC70_SC130 20S105230 - Replaced by 00162902000 | NC |
| 00003729900 | SC-1303-A ANTENNA UNIT CHINA | NC |
| 00003727300 | SC-702-E-1-A DISPLAY UNIT CHINA | NC |
| 00003721000 | SC-701-A JUNCTION BOX CHINA | NC |
