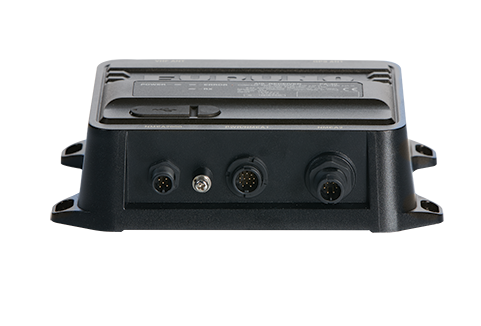

FA40

Product advantages

The FA-40 delivers "Real-Time" AIS information to navigation systems providing critical collision avoidance information in all weather conditions
Acquisition and tracking of traffic around your vessel is absolutely necessary for safe and efficient navigation. FURUNO's FA-40 AIS Receiver provides navigational data about other AIS-equipped vessels, increasing your situational awareness and allowing you to navigate more safely.

Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby
Greatly improves the level of the situational awareness even in fog, darkness or congested waterways
Flexible integration with various AIS compatible radar and chart plotters
Optional GPS antenna can be connected to receive GPS information
Initial setup can be done through the NMEA2000 network (TZT2/TZT3)
Receives both Class-A and Class-B AIS information

Features

Standards:
IEC 60945 Ed.4+CORR.1,
IMO MSC.140 (76)
ITU-R M.1371-5, EN 303 413 V1.1.1 EN 301 843-1 V2.2.1
IEC 62368-1 Ed.3

RX Frequency:
156.025MHz?162.025MHz

Channel Spacing:
25 kHz

Waterproofing:
Antenna Unit: IP56
Other Units: IP55

Power Supply:
12-24 VDC, 0.3-0.2 A

Size:
177(W) x55(H) x158(D) (mm)

Weight:
0.45kg (1lbs)

In the box

1 X FA40
1 X Câble NMEA0183 (2M)
1 X Câble NMEA2000 (2 M)
1 X FUSIBLE 5A
DOCUMENTS (OM, MDC, CD)
* Antenne GPS GPA-C01 en option

Parts and accessories

00153306000	CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI	NC
00147435000	N173F/FEC ETRIER POUR FOUET CX4-3/FEC	NC
00149489000	N174F/FEC ANTENNA FIXING BRACKET 05S097011	NC
00150701000	FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511	NC
00150703000	FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511	NC
00150704000	FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511	NC
00150705000	CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA	NC
00150706000	TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001	NC
00150707000	FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000	NC
00002107100	GPA-017 ANTENNA UNIT	NC
00153307000	FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101	NC
00153308000	FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI	NC
00159593000	8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104691	NC
00159594000	8D-FB-CV 30M ANTENNA CABLE ASSEMBLY 20S104691	NC
00159595000	8D-FB-CV 50M ANTENNA CABLE ASSEMBLY 20S104691	NC
00159608000	MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1	NC
00436578000	KIT FISSAGGIO AD ALBERO GPA017 CP20-01111 FISSAGGIO ANTENNA PER ANTENNA GPS	NC
00438119000	KIT INSTALLAZION CAVO 8D-FB-CV CP20-02701 KIT CONNETTORI PER CAVO ARMATO FURUNO	NC
00117311010	TNC-PS/PS-3D CAVO 15M PER GPS TNC-PS/PS-3D-L15M-R TNC-TNC 20S0216-4	NC
00001363200	PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT	NC
GPA-017S	GPA-017S GPA-017S - - Replaced by 00019273410	NC
GPA-C01	ANTENNA UNIT GPA-C01 - Replaced by 00019411310	NC
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM	NC
00015402910	MJ-A6SPF0003-020C CABLE EQUIPE	NC
00114449010	CX4-3/FEC VHF ANTENNA SANS ETRIER FM8900S/FA150/FA50/FA30 - Replaced by AC-CX4-3	NC
00015405410	Data cable (6PF<->Nu) 5m	NC
00015964310	MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 - Replaced by 00159608000	NC
00016892410	MJ-A6SPF0003-100C SIGNAL CABLE ASSEMBLY 20S0093-1	NC
00107783010	FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 -	NC
00111190010	NO.13-QA310 L-ANGLE MOUNTING BASE 22S0287	NC
00111191010	NO.13-QA330 RIGHT ANGLE MOUNTING BASE 22S0286	NC
00111192010	NO.13-RC5160 HANDRAIL MOUNTING BASE 22S0329	NC
00116317010	8D-FB-CV CABLE EQUIPE 30M AVEC CONNECTEUR non rohs 20S104690 - Replaced by 00159594000	NC
00116319010	8D-FB-CV CAVO 50M ARMATO PER GPS/FELCOM/AIS 20S104690 - Replaced by 00159595000	NC
00116322010	8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104690 - Replaced by 00159593000	NC
CX4-3	Collinear heavy duty antenna, UHF-female connector, 1" 14TPI male & 1 1/4" 11 TPI female mount, incl. N240F	NC
