IV100NX
VSAT Ref : IT-V5-11-U2JWWorld First 105cm KU-KA convertible VSAT Antenna
PRICE : NCDescription
Future-Proof System with Industry Leading RF Performance

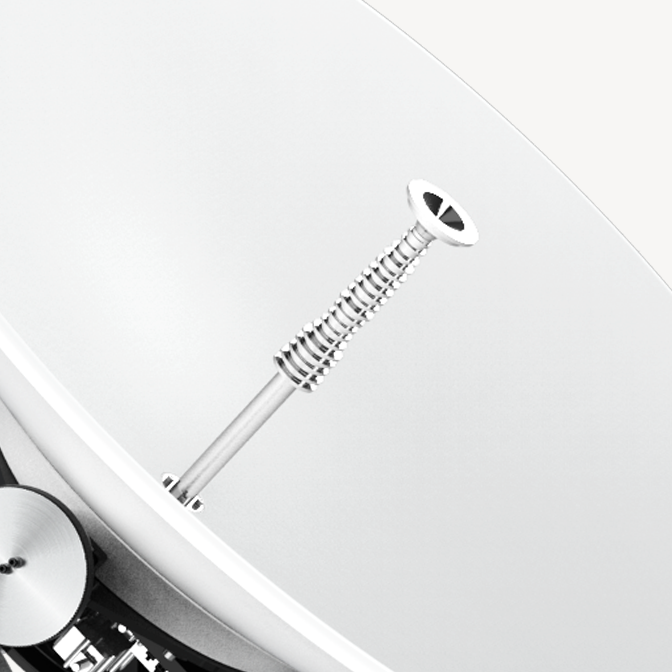

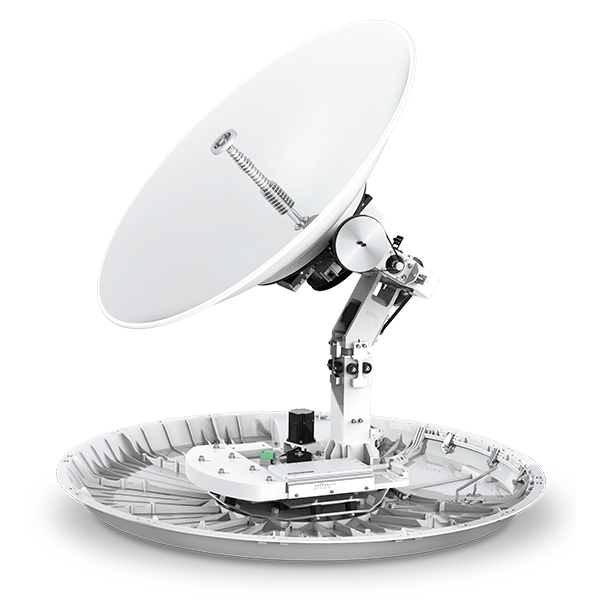

The world's first Ku- to Ka-band convertible antenna, the v100NX can simply be converted from Ku- to Ka-band compatibility by changing the center-mounted RF Assembly and Feed using a conversion kit. The reflector and radome have already been frequency tuned for both satellite bands, which ensures maximum performance across both of them. Also, the v100NX is ready for future NGSO constellation as well as 2.5GHz wideband Ka-band.
Intellian's highly efficient RF design delivers the best performance compared to other 105cm class systems, enabling higher data rates and global operation. The compact 105cm antenna's smaller footprint allows installation on smaller vessels and gives them access to 1-meter designed networks. It also has several different BUC power options available up to 25W that give it a wider operational range. The v100NX is ideal for commercial ships, the oil and gas industry, and mission-critical operations where uninterrupted connectivity is required.
Controlled Costs with Modularized Components
With the modular component design, the number of spare parts is significantly reduced by more than 30%. It now only needs 13 common spare parts to fix most potential problems. Thus, its reliability is improved, its maintenance is simpler, and the total cost of ownership for the system is lowered.
Product advantages
Future-Proof System
Ku-Ka convertible with dual-band optimized reflector and radome
NGSO & 2.5GHz Wideband Ka Ready
Industry Leading RF Performance
Best performing antenna in 105cm-class
Various BUC options up to 25W for wider coverage in a same form factor
Controlled Costs
Reduced spare parts more than 30% with modularized components
Reliability is improved, maintenance is simpler and total cost of ownership is lowered
Simplified Installation
Single coaxial cable with external dome-on connection
Installation wizard with step by step commissioning guide within AptusNX
Enhanced AptusNX
No installation required with embedded web application
Simple operation with automatic and preconfigured settings
Features
Intellian v100NX X-pol and Co-pol w/o BUC
RADOME & ANTENNA:
Radome Height 145.8cm
Radome Diameter 137.9cm
Reflector Diameter 105cm
Weight 113kg
STABILIZED PEDESTAL ASSEMBLY :
Platform 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -20º to +115º
Cross-level Range ±37 º
Stabilization Accuracy 0.2º peak mis-pointing @ max ship motion condition
Motor Brake SystemDynamic braking
RF PERFORMANCE :
TX Frequency 13.75 ~ 14.5 GHz Ku-band
TX Gain 42dBi 14.25 GHz (excl. radome)
RX Frequency 10.7 ~ 12.75 Ghz Ku-band
RX Gain 40.7 dBi 11.7 GHz (excl. radome)
G/T > 20dB / K @12.75 GHz (Clear Sky, 30º Elevation)
BUC Power 8W, 16W, 25W (Optional)
LNB Intellian PLL LNB :
Polarization Linear, Cross & Co-pol
Antenna Cable Single 50 ohm coax cable for Rx, Tx, Fskk, Reference and Power from ACU to ADU
ANTENNA CONTROL UNIT :
Dimensions (WxDxH) 43.1cm x 35.0 cm x 4.4cm / 17? x 13.8? x 1.7?
Weight 5.2kg
Display 256 x 64 Graphic OLED
Gyrocompass Interface NMEA2000 / NMEA0183
Mediator Interface Yes (Embedded in ACU, Primary / Secondary control on AptusNX)
Modem InterfaceEthernet port / RS-232C, -422C / I / O Console
Remote Management Yes
Wi-Fi OperationYes (w/ Wi-Fi dongle)
Management Port Yes
Intellian LAN Port Yes
Power Requirement 100~240 V AC, 50~60 Hz, 4A
