CV7V-WINDYPLUG

Wind and weather sensors Ref : LC-CV7V-WINDYPLUG

Ultrasound anemometer + WINDYPLUG Interface (NMEA2000) for motorboats.

PRICE : NC


Description

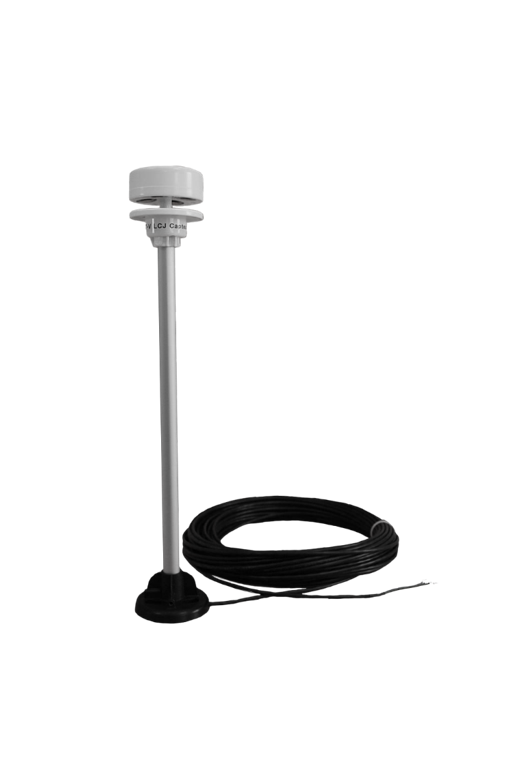

The CV7V-WINDYPLUG NMEA2000 is an ultrasonic wind vane anemometer CV7V with WINDYPLUG interface

The CV7V-WINDYPLUG NMEA2000 is a 9 / 33V vertical arm ultrasonic wind vane anemometer with WindyPlug interface . This sensor has a vertical support of 30cm. In terms of functionality, they are identical to the CV7 ultrasound wind sensor with inclined arm.


Product advantages

CV7V-WindyPlug NMEA2000 is the ultrasonic wind sensor with WindyPlug interface for motorboats.This ultrasonic wind sensor with WindyPlug interface CV7V-WindyPlug NMEA2000 comes with a mounting arm specifically designed for easy installation on any horizontal surface such as the cabin roof, a radar arch or a flybridge. The ultrasonic wind sensor CV7V-WindyPlug NMEA2000 can also be installed on a sailboat where there is not enough space on the masthead. The arm can be fixed to the side of the mast. The ultrasonic wind sensor CV7V-WindyPlug's NMEA2000 bracket is compatible with Glomex© type mounting bases. The small size of this sensor makes it very discreet. This ultrasonic wind sensor with WindyPlug interface CV7V-WindyPlug NMEA2000 can be set up to match the requirements all kinds of slow or fast boats. ICV7-V can be used connected to a PC and any systems featuring an NMEA® input port and specific pieces of equipment using conventional formats. In PC mode, this bidirectional sensor can be set up for angle correction, damping, measure units and interface format.


Features

The CV7V-WINDYPLUG NMEA2000 is an ultrasonic wind vane-anemometer sensor with WINDYPLUG interface :

CV7V:


WINDYPLUG:


In the box

1 x Wind vane sensor CV7V-WINDYPLUG NMEA2000 ultrasonic anemometer CV7V with WINDYPLUG interface
1 x Fixing bracket
1 x 25 m of cable 4X 0.22mm²
1 x Instruction of assembly and use
1 x Guarantee 2 years parts and labour

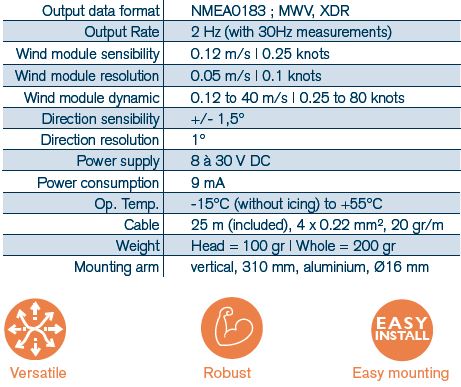

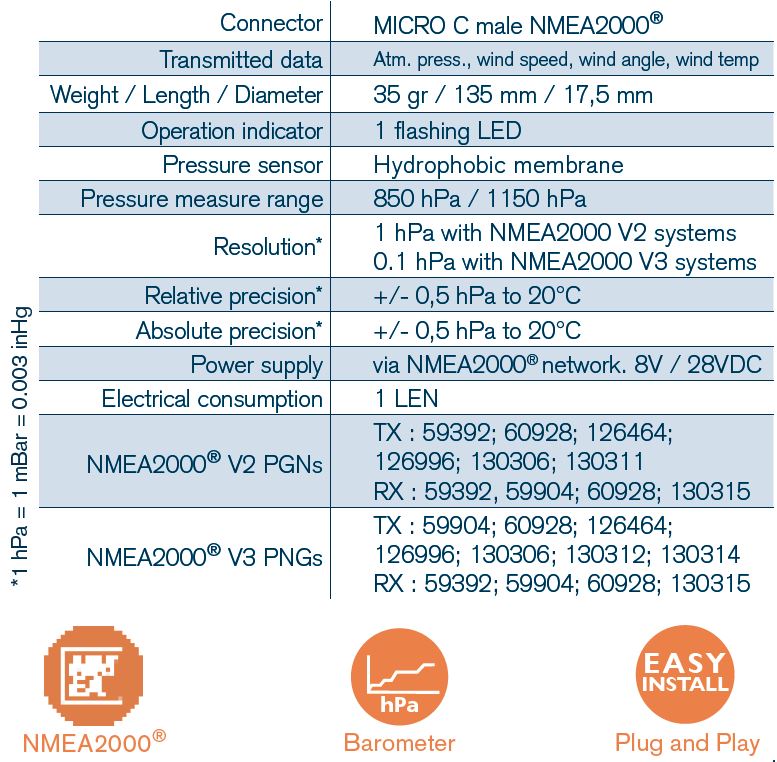

Technical characteristics

Applications : Motorboats
Barometer : YES
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA2000 : 1
Type : Ultrasonic
Power input : 12 V
