Radars FR & FAR series Ref : IMD040240BA10.4 Radar displays with key panels used for DRS series Radar sensors.
PRICE : 2 501,00 € With VAT (22%)Description
NAVIGATE SAFELY BY IDENTIFYING RISKS
The FR-10 and the FR-12 10.4"/12.1" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™ and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.

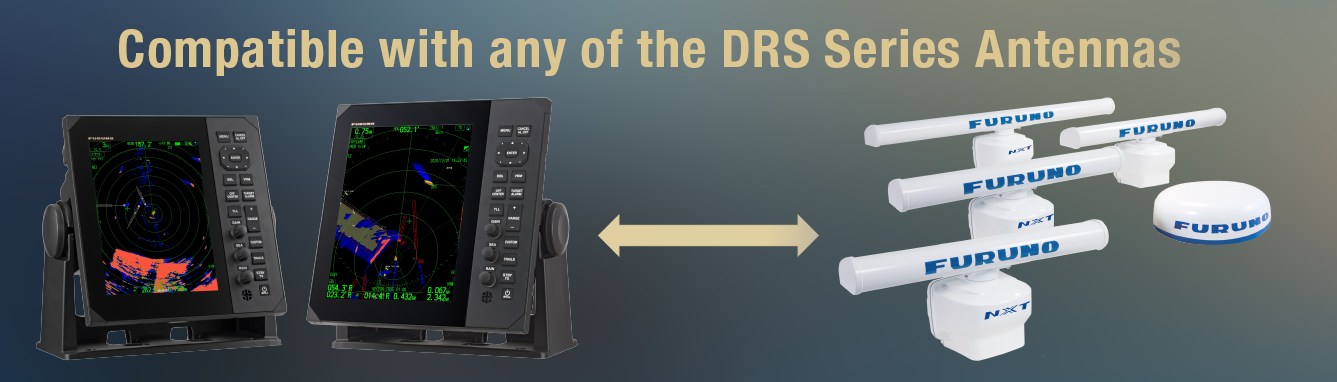

Compatible with Furuno’s powerful DRS series antennas
The FR-10 and FR-12 are compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size and antenna type & size based on what you want to accomplish, you can build the Radar that best meets your needs.
Compatible DRS antennas:
Radome type:
Model DRS2D-NXT
Model DRS4D-NXT
Model DRS4DL+
Open Array type:
Model DRS6A-NXT
Model DRS12A-NXT
Model DRS25A-NXT
Model DRS6A X-Class
Model DRS12A X-Class
Model DRS25A X-Class
RISK VISUALIZERTM

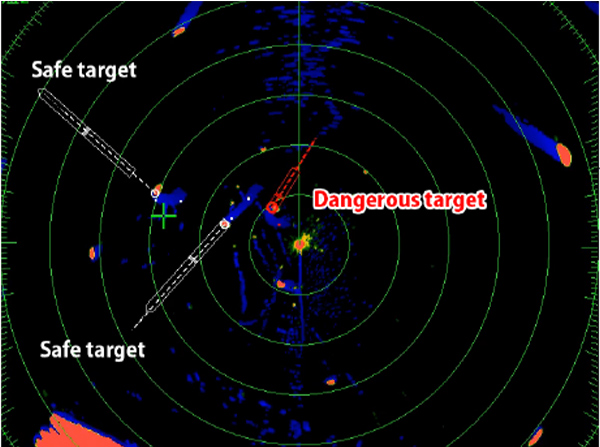

Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Aditionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.
FAST TARGET TRACKINGTM

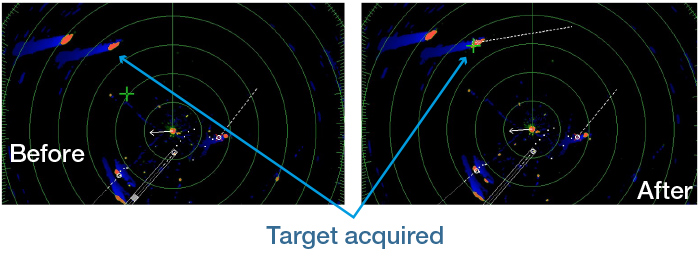

Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector.
The maximum number of TT (Target Tracking) is 100 targets when connected to DRS-NXT or DRS-X_CLASS series.
TARGET ANALYZERTM

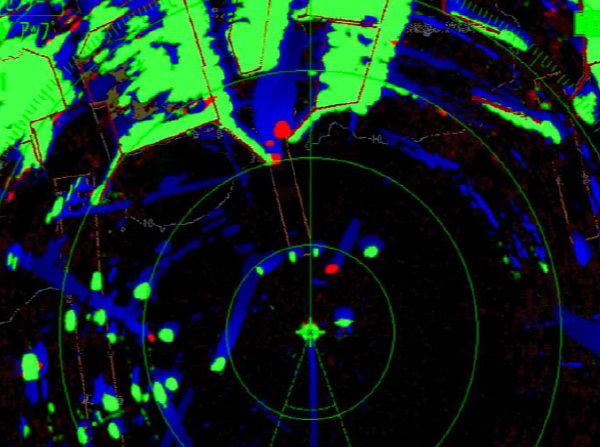

Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.
ECHO AVERAGE

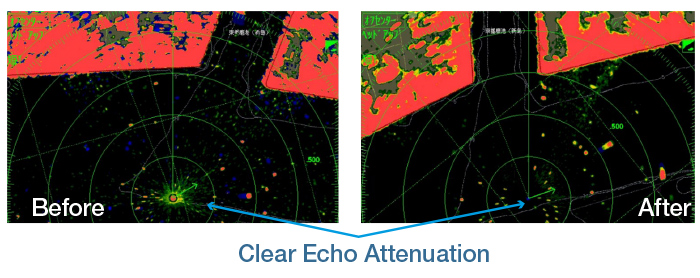

Echo Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation or dense fog.
CUSTOM AIS

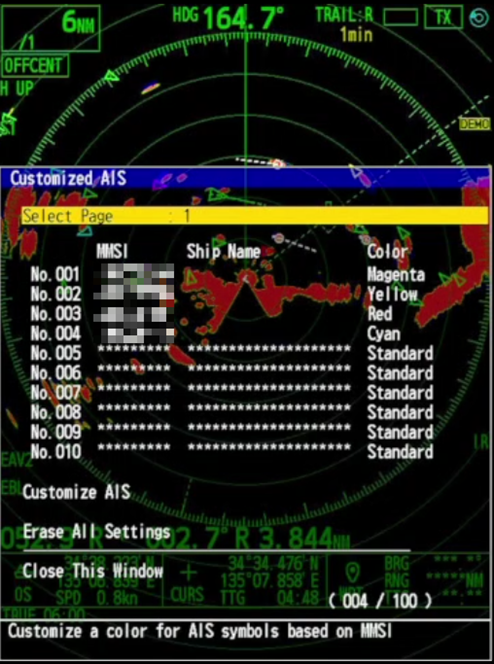

The color of AIS symbols (maximum: 100 sets) can be customized with 9 different colours: 4 extra color options of Red, Yellow, Cyan and Magenta, in addition to the Standard color options of Green, Red, Blue, White, and Black. The color option is saved on the FR-10/12, so when AIS targets with the same MMSI are received again, they will be shown in the registered colors. This is useful when tracking the position of important vessels such as consorts, competitors, patrol boats.
Product advantages
FR-10 and FR-12 offers various amazing features like:
- Risk Visualizer™
- Target Analyzer™
- Target Tracking™
- True Echo Trail
- Echo Average
- Sub Display Unit
- AIS Display
- Radar overlay on charts (FR-12 only, option kit OP03-266 is required)
Features
FR-10 and FR-12 are new 10.4 inch and 12.1 inch Radar displays with key panels used for DRS series Radar sensors. They are the replacement for the MODEL1835, MODEL1935, MODEL1945, MODEL1937, FR-8065, FR-8125, and FR-8225. The new configuration of Radar display with Radar sensors offers superior performance and new features, as well as fitting on wider ranges of vessels in various markets. Thanks to an expanded selection of radar antenna types, from compact domes to a variety of open arrays and Solid-State to magnetron, there are a total of 20 possible combinations. The most inexpensive combination is the FR-10 + DRS4DL+ while the FR-12 + DRS25A-NXT is most luxury one.
In the box
-1x DISPLAY UNIT RDP-161-E
-1x POWER CABLE MJ-A3SPF0024-035C (3.5 M)
-1x INSTALLATION MATERIALS
-1x ACCESSORIES
-1x SPARE PARTS
Technical characteristics
Antenna Rotation Speed : 24/48 RPM
Power : 25W-25k W
Power input : 12-24 V
Range : 96 NM
Resolution : 800 x 600 Pixels
Size : 3.5/4/6 ft
Solid-State : Yes (depending on the antenna type)
