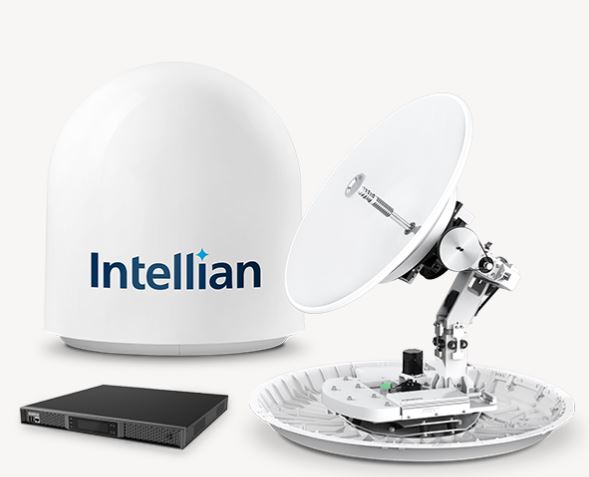

World First 85cm KU-KA convertible VSAT Antenna

PRICE : NC

Find a dealer

Description

Future-Proof System with Industry Leading RF Performance

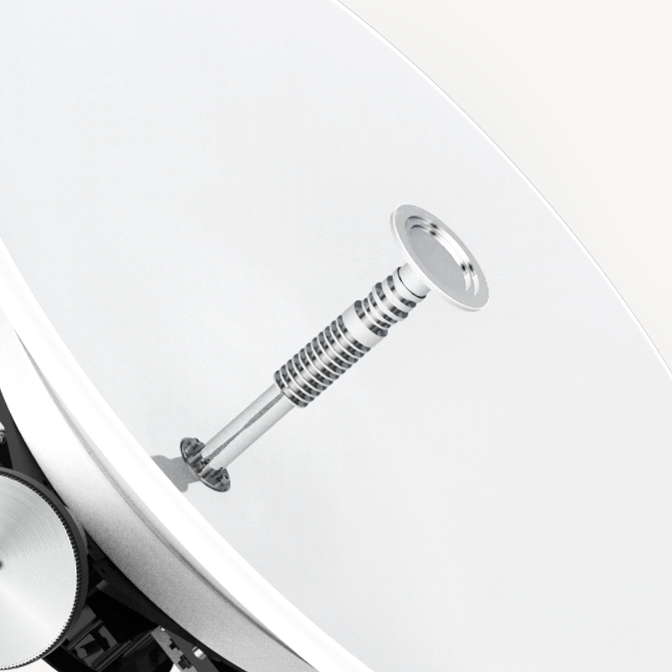

The world's first Ku- to Ka-band convertible antenna, the v85NX can simply be converted from Ku- to Ka-band compatibility by changing the center-mounted RF Assembly and Feed using a conversion kit. The reflector and radome have already been frequency tuned for both satellite bands, which ensures maximum performance across both of them. Also, the v85NX is ready for future NGSO constellation as well as 2.5GHz wideband Ka-band.

Intellian's highly efficient RF design delivers the best performance compared to other 80cm class systems, enabling higher data rates and global operation. The compact 85cm antenna's smaller footprint allows installation on smaller vessels and gives them access to 1-meter designed networks. It also has several different BUC power options available up to 25W that give it a wider operational range. The v85NX is ideal for commercial ships, the oil and gas industry, and mission-critical operations where uninterrupted connectivity is required.

Controlled Costs with Modularized Components

With the modular component design, the number of spare parts is significantly reduced by more than 30%. It now only needs 13 common spare parts to fix most potential problems. Thus, its reliability is improved, its maintenance is simpler, and the total cost of ownership for the system is lowered.

Product advantages

Future-Proof System
Ku-Ka convertible with dual-band optimized reflector and radome
NGSO & 2.5GHz Wideband Ka Ready

Industry Leading RF Performance
Best performing antenna in 80cm-class
Various BUC options up to 25W for wider coverage in a same form factor

Controlled Costs
Reduced spare parts more than 30% with modularized components
Reliability is improved, maintenance is simpler and total cost of ownership is lowered

Simplified Installation
Single coaxial cable with external dome-on connection
Installation wizard with step by step commissioning guide within AptusNX

Enhanced AptusNX
No installation required with embedded web application
Simple operation with automatic and preconfigured settings

Features

Intellian v85NX X-pol and Co-pol w/o BUC Part Number V5-85

BUC OPTIONS :
NJRC mini 8W Extended w/ M&C (NJT8318UNMR)Part Number V1-2212
NJRC mini 16W Extended w/ M&C (NJT8319UNMR)Part Number V1-2213
NJRC mini 25W Extended w/ M&C (NJT 8370UNMR)Part Number V1-2217

RADOME & ANTENNA:
Radome Height 123cm / 48.4?
Radome Diameter 113cm / 44.5?
Reflector Diameter 85cm / 33.5?
Weight 96kg / 211.6lbs

STABILIZED PEDESTAL ASSEMBLY :
Platform 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -20º to +115º
Cross-level Range ±37 º
Stabilization Accuracy 0.2º peak mis-pointing @ max ship motion condition
Motor Brake SystemDynamic braking

RF PERFORMANCE :
TX Frequency 13.75 ~ 14.5 GHz Ku-band
TX Gain 40.7dBi 14.25 GHz (excl. radome)
RX Frequency 10.7 ~ 12.75 Ghz Ku-band
RX Gain 8.9 dBi 11.7 GHz (excl. radome)
G/T 18.3dB / K @12.75 GHz (Clear Sky, 30º Elevation)
BUC Power 8W, 16W, 25W (Optional)

LNB Intellian PLL LNB :
Polarization Linear, Cross & Co-pol
Antenna Cable Single 50 ohm coax cable for Rx, Tx, Fskk, Reference and Power from ACU to ADU

ANTENNA CONTROL UNIT :
Dimensions (WxDxH) 43.1cm x 35.0 cm x 4.4cm / 17? x 13.8? x 1.7?
Weight 5.2kg / 11.5 lbs
Display256 x 64 Graphic OLED
Gyrocompass Interface NMEA2000 / NMEA0183
Mediator InterfaceYes (Embedded in ACU, Primary / Secondary control on AptusNX)
Modem InterfaceEthernet port / RS-232C, -422C / I / O Console)
Remote Management Yes
Wi-Fi OperationYes (w/ Wi-Fi dongle)
Management Port Yes
Intellian LAN Port Yes
Power Requirement 100~240 V AC, 50~60 Hz, 4A)
