Description
GO DEEPER WITH MORE POWER THAN YOU THOUGHT WAS POSSIBLE

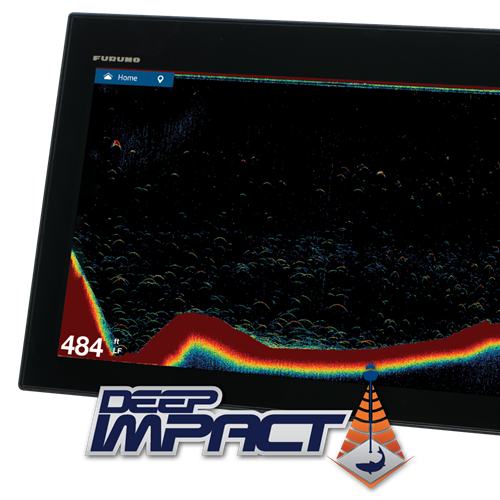

Deep impact TruEcho CHIRP™
High-powered TruEcho CHIRP™ is available for TZtouch3 by interfacing the Deep Impact (DI-FFAMP) to the internal Fish Finder. Deep Impact boosts your power to a 2/3 kW CHIRP Fish Finder. High-powered TruEcho CHIRP™ ensures that your echoes come back strong & clear at every depth range, displaying fish targets and bottom structure with amazing clarity.
Sea trials

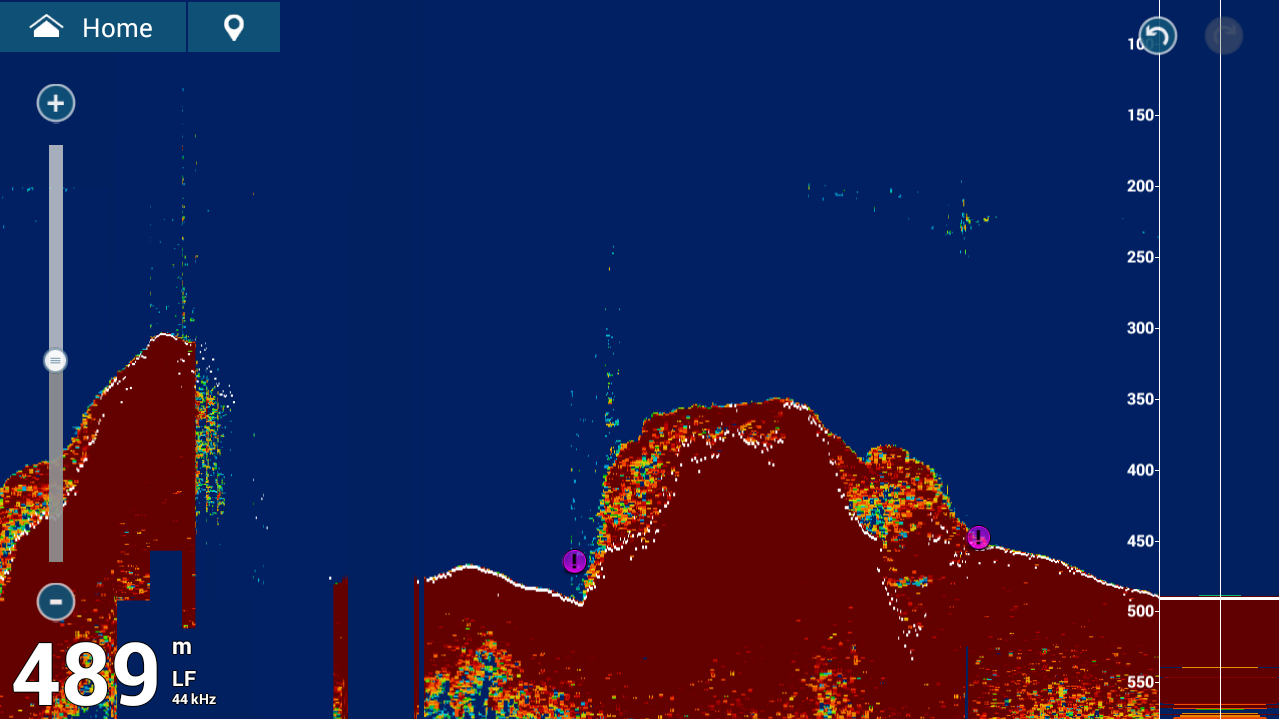

Depth: 489m.

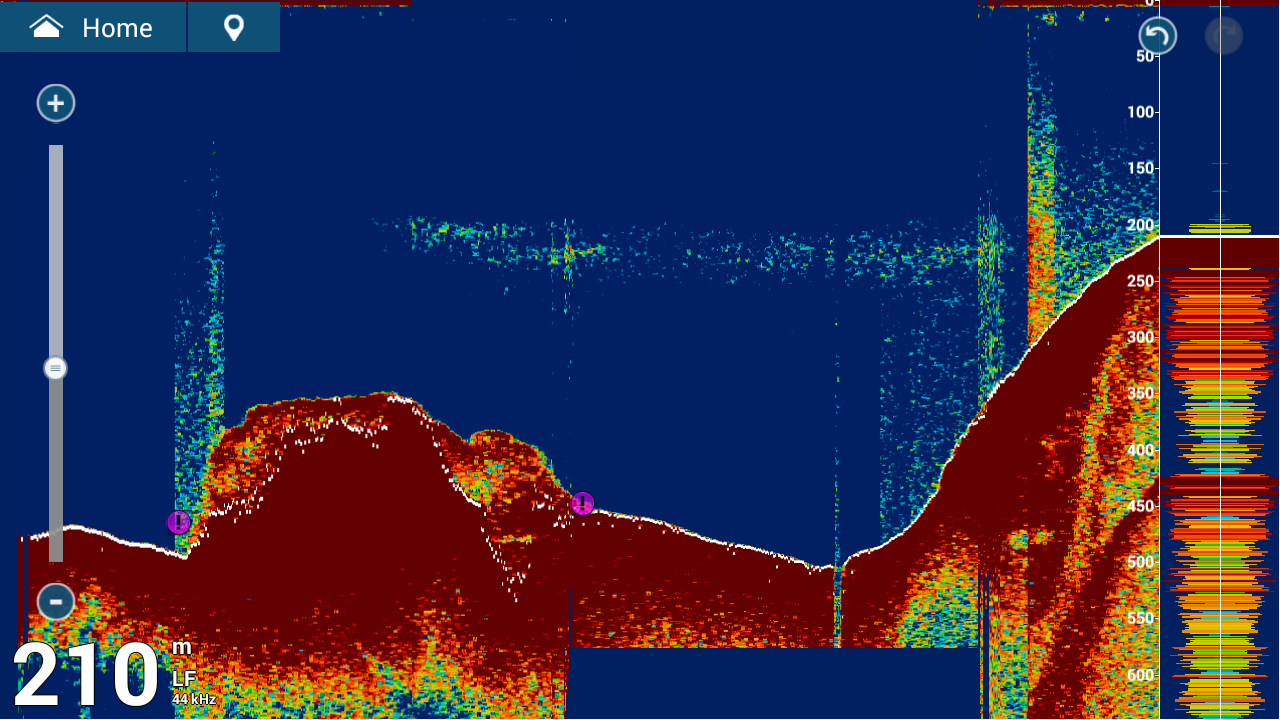

Depth: 210m.
Features
TRANSCEIVER & DISPLAY
Display Modes: Single (High or Low frequency), Dual (Both High and Low frequencies), Bottom-lock, Bottom-Zoom, A-Scope
Frequency : 18 to 225 kHz
Broadband (CHIRP): Available 2 ch
Range Scale: Max. 3,000m
Output Power: 2kW/3kW/5kW*
ENVIRONMENT
Temperature: -15°C to +55°C
Waterproofing: IP22
POWER SUPPLY
12-24 VDC
43.1 W, 3.2-1.9 A
TRANSDUCERS (Specify when ordering)
2 kW Dual-Band CHIRP
PM111LH, PM111LHW, PM111LM, PM411LWM, R109LH, R109LHW, R109LM, R111LH, R111LM, R409LWM
2/3 kW Dual-Band CHIRP
CM599LH, CM599LHW, CM599LM, R509LH, R509LHW, R509LM, R599LH, R599LM
2 kW Single-Band CW
28BL-6HR, 38BL-9HR, 50BL-12HR, 82B-35R, 88B-10, 200B-8/8B
3 kW Single-Band CW
28BL-12HR, 38BL-15HR, 50BL-24HR, 68F-30H, 100B-10R, 150B-12H
5 kW Single-Band CW*
28F-38M**, 50F-38**, 88F-126H, 200B-12H
10 kW Single-Band CW*
28F-72**, 50F-70**
*Rated power of these transducer is 5/10 kW, but actual output power from DI-FFAMP is 3 kW.
**Booster Box BT-5 is needed for these transducers.
Note: DI-FFAMP Requires connection to the TZtouch3 Internal Fish Finder.
Technical characteristics
Bracket : Fixed Mount
Frequency : 18-225 kHz
Function : Fish Finder Amplifier
Power : 2k-3k W
Power input : 12/24 V
Type : Fish Finder Amplifier
universe : Fishing
Waterproof : 22 IP
Parts and accessories
| 00001252100 | BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA - | NC |
| CM599LH | Transducer CHIRP, P & T, XID 28-60/130-210 kHz 2-3kW | NC |
| R509LH-W | R509LHW Wide-beam Chirp-ready External Mount | 7 564,00 € With VAT (22%) |
| 28BL-6HR | Transducer 28BL-6HR - 28kHz - Plastic - cable 15m | NC |
| 50BL-12HR | Furuno FRP Transducer Blt Type 50BL-12HR 2kw 50kHz No Plug | 3 037,80 € With VAT (22%) |
| 88B-10 | Sonde 88B10 - 88kHz - Rubber - câble 15m | 1 182,18 € With VAT (22%) |
| 200B-8B | Transducer 200B8B (1 or 2kW) - 200kHz - Rubber - cable 15m | NC |
| 82B-35R | Transducer 82B35R 65 to 110kHz - Rubber - cable 15m | 4 288,29 € With VAT (22%) |
| 38BL-9HR | 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP | NC |
