I4R

TV antennas Ref : IT-B3-402Q

Terrestrial Satellite TV Antenna 45cm - 4 Outputs

PRICE : NC


Description

Go further with I4

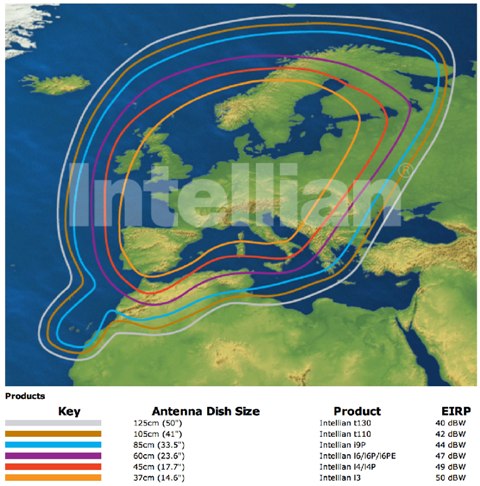

The i4 offers the highest signal strength available with a 45cm (17.7”) reflector, significantly increasing the coverage area.

With iQ² technology, the i4 offers the most precise tracking capabilities and superior satellite signal reception while the vessel is cruising at high speed or in rough sea conditions.


Product advantages

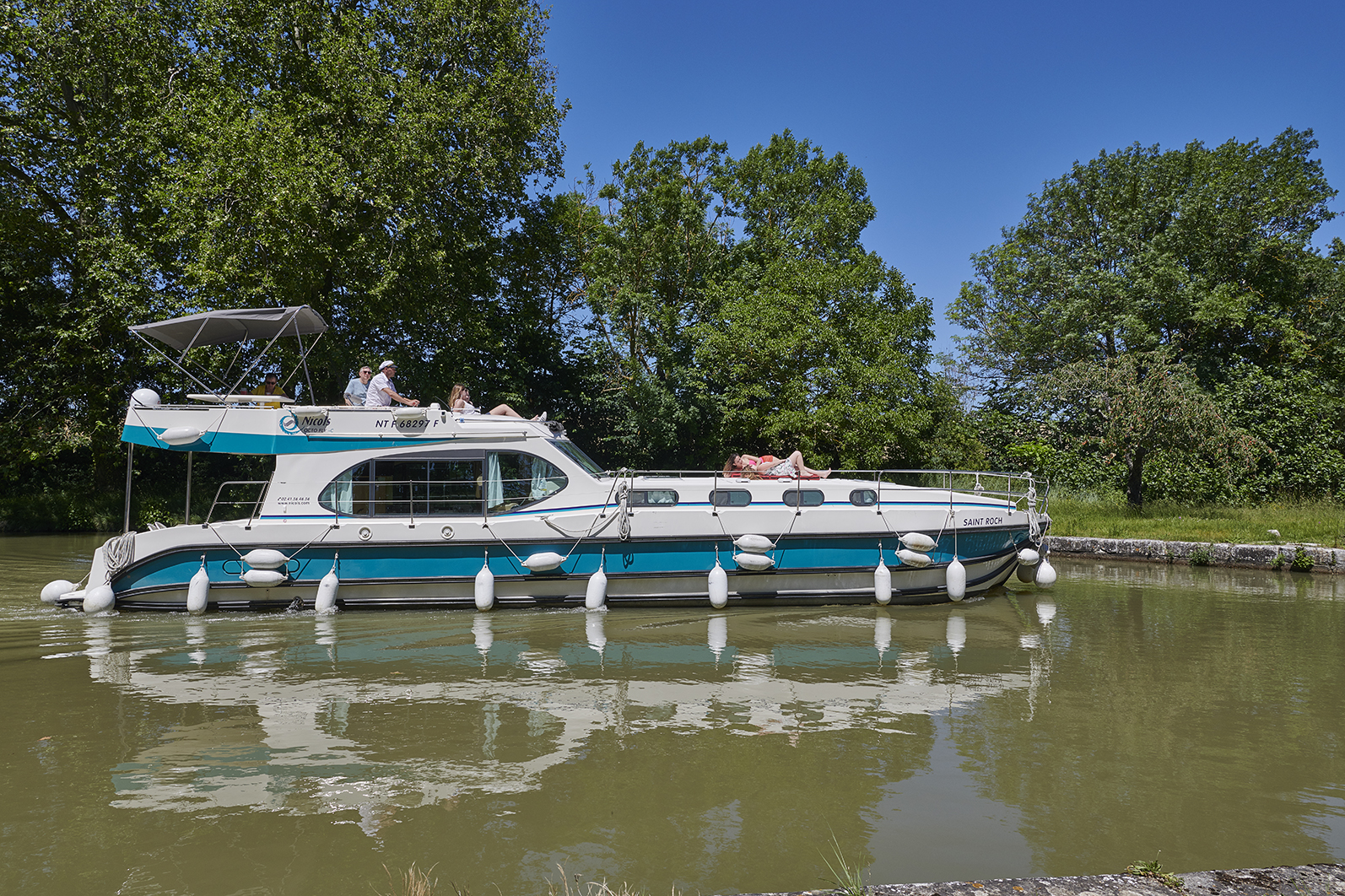

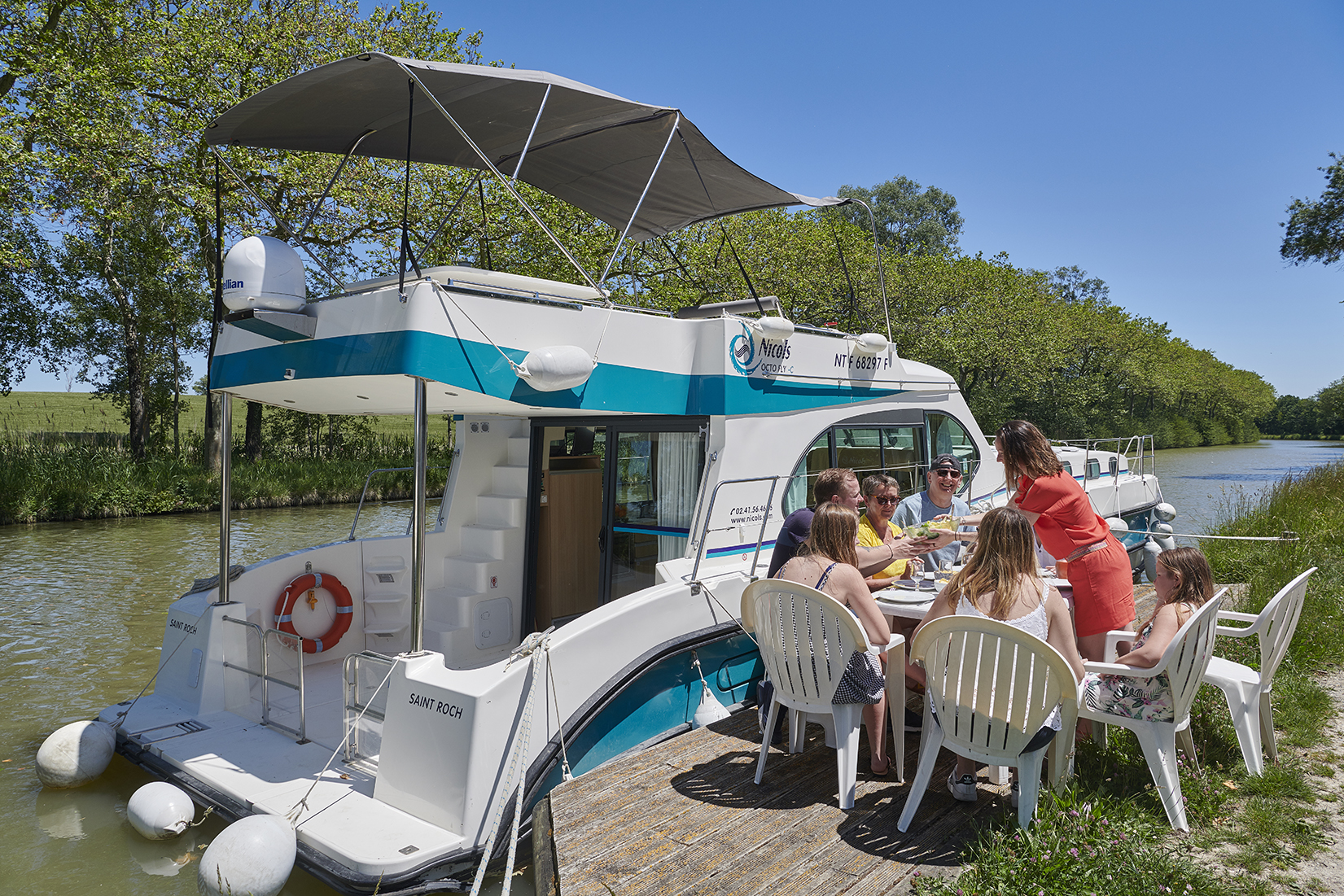

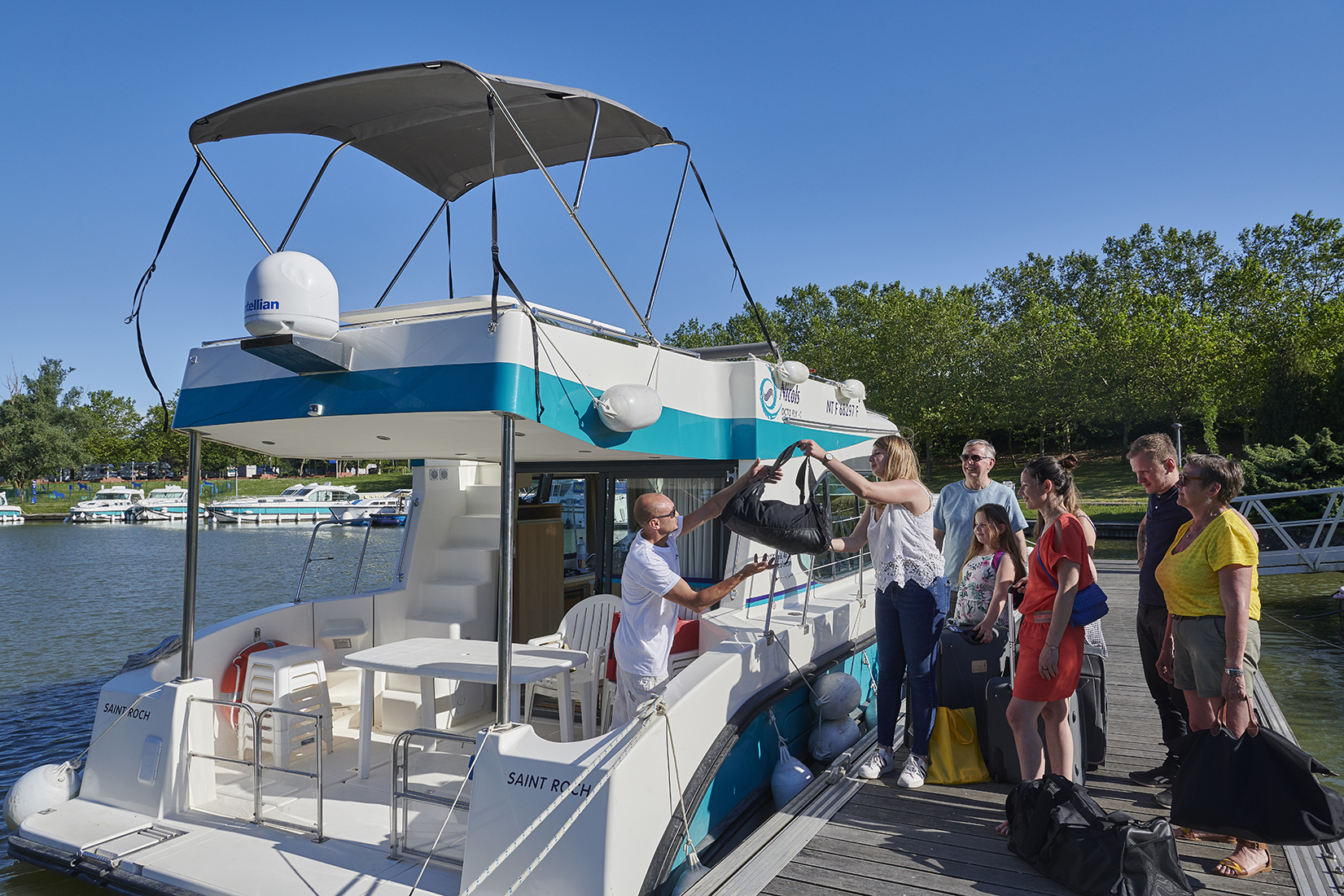

Power and efficiency make the i4R the most popular 45 cm (18 inch) Satellite TV system for pleasure boats, fishing boats, workboats, and commercial vessels approximately 12m (35ft) to 20 (60ft) in length. This TV antennas I4R

  • Compatible with leading satellite TV service providers around the world
  • Travel further North or South with an extended elevation range of 0° to 90°
  • Auto satellite switching function from your remote control
  • 50° per second turn rate ensures signal tracking at high speeds and in rough seas
  • Simplicity of design, no external compass or rate sensors required


Features

The TV antenna I4 INLAND/RIVER

Fully Automated System

  • Automatic Satellite Search and Identification function
  • 2-axis high speed tracking system

 High Performance Antenna

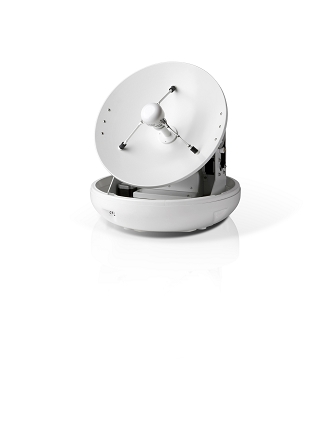

  • 45 cm (17.7 in) diameter parabolic antenna for receiving Ku-band satellite signals
  • Circular or linear polarization depending on the region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

 iQ²: Quick&Quiet Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

 Antenna Control Unit

  • Intuitive controls and digital information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the MIM or the Shaw Decoder Module

 Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home

 Built-in GPS and NMEA 0183 Interface

  • The i4 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

 Stylish Radome Profile

  • 50cm (19.7 inch) antenna radome diameter
  • Antenna weighs less than 11.6 kg (25.5 pounds)


In the box

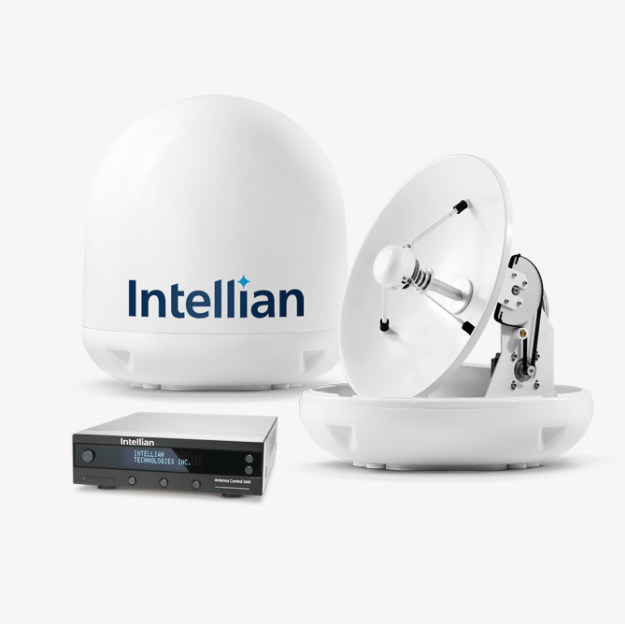

1 X i4R
1 X Cable 15m
1 x ACU WiFi

Technical characteristics

Decoder output : 4
Parabola diameter : 45 cm
PIRE : 49 dBw
Type : 2 axes
LNB : 4


Videos

TUTO - Comment changer la fréquence de tracking d'un satellite ? INTELLIAN SERIE I

Parts and accessories

SMS5808 MULTISWITCH SMS5808 8 SORTIES SERIE 8 - Replaced by RO-00130 NC
IT-S2-4109 DOME VUOTO I4/I4P INTELLIAN 963,80 € With VAT (22%)
SMS5608 MULTISWITCH SMS5608 6 SORTIES SERIE 8 NC
RO-00050 CONNECTEUR F ETANCHE A SERTIR POUR CABLE RG6 D:6.8MM NC
RO-00019025 CABLE COAX. AU MT RG6 D:6.8MM NC
RO-00019050 CABLE COAX. AU MT RG6 D:6.8MM 50m NC
RO-00019100 CABLE COAX. AU MT RG6 D:6.8MM 100m NC
IT-S2-4635 CABLE RF INTERNE (I4) - I4 NC
RO-00049 Straight Cable Mount F Connector Twist On Term. 0 to 1 GHz RG6 L NC
IT-S3-0503 ACB X i3/i4 B3 MODEL INTELLIAN ANTENNA CONTROL BOARD I3/I4R NC
IT-S2-4644 JEUX DE CABLES 4 PORT (I4) - I4 NC
IT-BP-T201P UNITE CONTROLE ANTENNE INLAND 220V I4R NC
IT-S2-4630 CABLE FIN DE COURSE ELEVATION I4 NC
IT-S2-4626 CABLE FIN DE COURSE AZIMUT I4 NC
IT-S2-4411 COURROIE AZIMUT (I4) - I4 NC
IT-S2-0802 LNB QUAD UNIVERSEL - I4P/I4R/I6P/I9P NC
IT-S2-0655 ADAPTATEUR AC/DC (ACU I4R) S2-0655 ACU I4R NC
IT-S2-0325 GPS INTERNE (SERIE I/IW) - SERIE I/IW NC
IT-S2-0314 ENSEMBLE SOUS REFLECTEUR i3/i6 I3/I6P I3/I6P NC
