FICE-100
Radars FR & FAR series Ref : FICE-100Iceberg and ice detection RADAR
PRICE : NCDescription
FURUNO ICE RADAR
FICE-100 is an Iceberg and Ice Detection Radar that connects directly to the Furuno FAR-2xx7, FAR-2xx8, FAR-3000 and FAR-15x8 marine radars.
SAFE NAVIGATION
Usable ice detection down to 3 NM thanks to advanced algorithms.
BETTER CONSUMPTION MANAGEMENT
Using FICE-100 it is possible to locate existing tracks created by icebreakers and other vessels; it is thus possible to consume much less energy and save fuel and time!
FICE-100 ALTERNATIVE TO INFRARED CAMERA
Infrared cameras are difficult to keep operational in very cold conditions. The FICE-100 is an additional system which, using the same antenna as the nautical radar and improving its processing, provides further assistance when navigating in icy waters.
SCREENSHOT

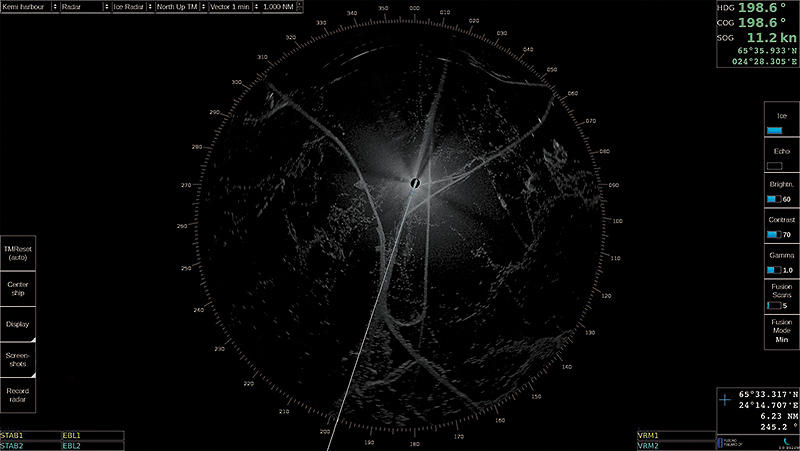

Image 1:
View of the harbour, showing outbound routes and the harbor area.

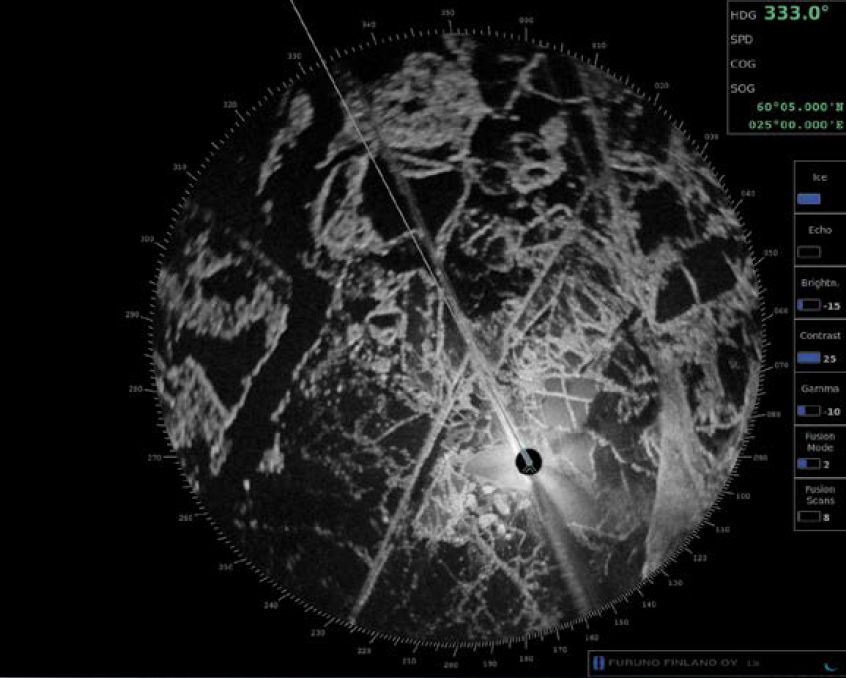

Image 2:
Difficult ice conditions showing the three old broken ice channels.

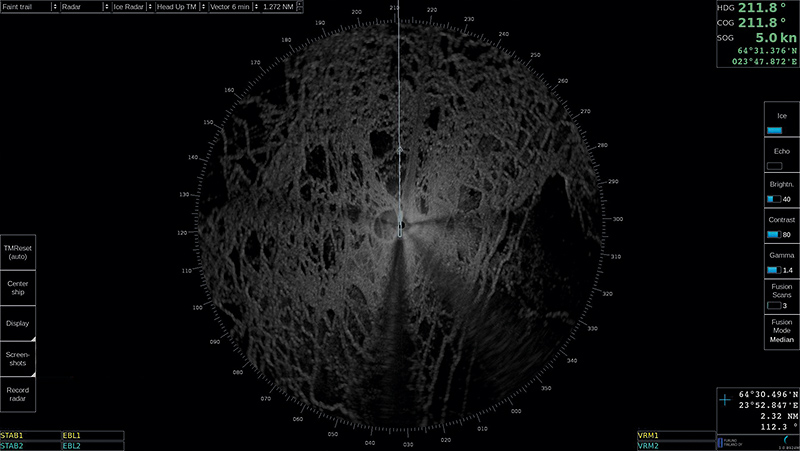

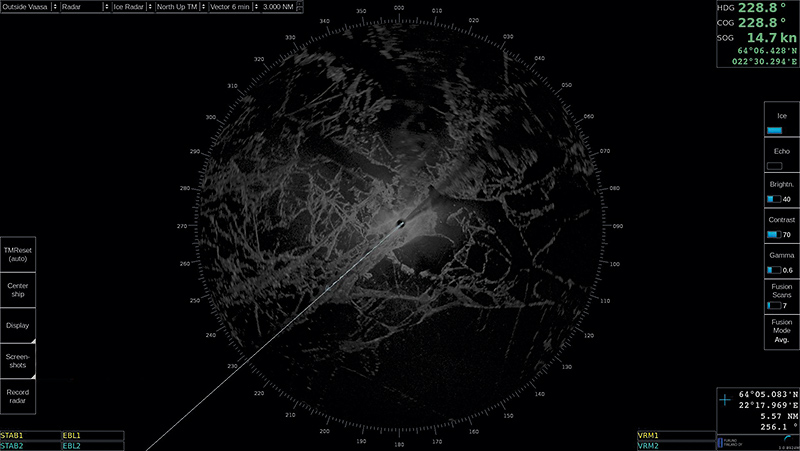

Image 3:
A clear ice channel broken in the direction of 228.8.
Features
- Ice display
- View roads and tracks through ice even in poor visibility conditions
- Detection of blocks of ice up to 3 NM
- Use the same antenna as your FURUNO marine radar FAR2XX7, FAR2XX8 , FAR3XX0 , FAR-15X8
- It is a good alternative to the infrared camera.
- By embossing the already made tracks, you reduce fuel consumption.
In the box
1 X Ice Radar Processor Unit (100-230 VAC)
1 X trackball with 2m USB cable
The screen is an option and does not come standard.
