SCX21

Compass Ref : IMD036670AB

Unprecedented stability with Quad antenna Satellite compass NMEA0183

PRICE : 1 464,00 € With VAT (22%)

Find a dealer

Description

Quad-antenna design for extreme accuracy

Utilizing four separate GNSS Antennas for the ultimate in responsiveness, the SCX-21 set a new standard for reliable and accurate heading for all of your marine electronics. Traditionally, a Satellite Compass™ calculates heading using one baseline between two antennas; the SCX-21 four antennas can calculate heading information using any one of the six baselines drawn between the four antennas.
The unprecedented quad-antenna design of the SCX-21 makes it capable of calculating extremely accurate heading, pitch, roll, and heave information. It is the perfect heading solution for complex vessel installations where the view of satellites may sometimes be obstructed.

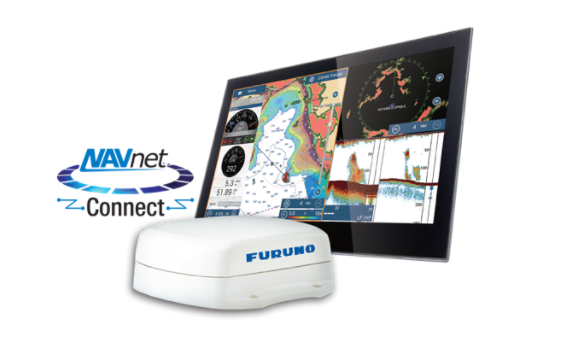

Relay Critical Data

Effortlessly connect with existing Furuno systems in order to elevate your awareness of own vessel and the surrounding area by displaying critical information across several products including NavNet TZtouch MFD's, NAVpilot-300, FI-70, and GP-39! Initial setup can be done from NavNet series MFD, NAVpilot-300 and GP-39.

• 3-Axis Speed

• Pitch, Roll, Heave

• Rate of Turn (RoT)

• Heading (HDG)

Superior accuracy for all your sensors

The SCX-21 enhances the performance of on-board equipment such as Radar, Fish Finders, Sonar, and Autopilots. Accurate heading information empowers your NAVpilot to keep a better course, saving time, fuel, and money on every voyage; meanwhile, precise pitch, roll, and heave information stabilizes the display for many Furuno Fish Finders and Sonars, allowing for an accurate presentation even in the roughest of seas.

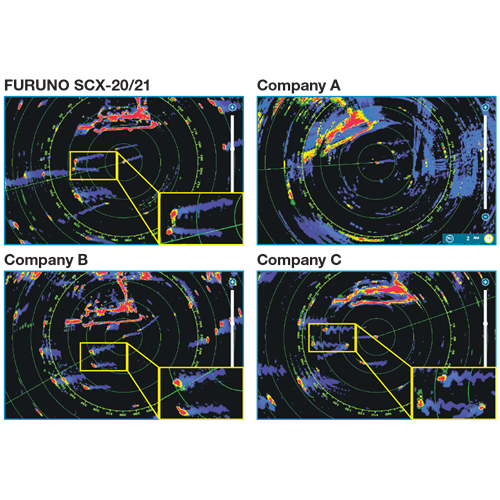

Radar echo trail zig-zag domination!

When connected to Furuno SCX20/21, the Radar’s echo trails hold steady and clearly depict an accurate echo trail thanks to the SCX20/21’s amazing accuracy. Company A’s satellite compass fails to uphold a steady heading, making echo trails virtually unintelligible. Company B’s heading accuracy fluctuates by +/- 3? with a slower update, causing an echo trail that has a wide zig-zag pattern. Company C’s heading accuracy fluctuates by +/- 5? with a faster update, causing an echo trail that is indistinguishable and confusing.

Product advantages

Quad-antenna design for extreme accuracy
Superior accuracy for all your sensors
Relay Critical Data
Perfect for NavNet TZtouch MFD, NAVpilot-300, and WASSP installations
Outputs accurate Time, Position, Heading, COG/SOG, ROT, Roll/Pitch/Heave 3-Axis Speed, Air Temperature and Air Pressure data
Unprecedented heading accuracy for Radars, Sonars, and Navigation
Utilizes four Multi GNSS (GPS, QZSS, GLONASS, Galileo) antennas
1.0 degree heading accuracy, 0.02 knot speed accuracy
Lightweight antenna - only 1.0kg!

Features

Frequency :

• 1575.42 MHz (GPS/Galileo/QZSS/SBAS)

• 1602.5625 MHz (GLONASS)

Tracking code : C/A (GPS/QZSS/SBAS), E1B (Galileo), L1OF (GLONASS)

Heading Accuracy: Heading/Roll/Pitch: 1.0° rms (static) 0.5° rms (dynamic)

Follow-up:45°/secSettling time : 60 seconds approx.

Position Accuracy:

• GPS: 5m approx. (2 drms, HDOP < 4)

• MSAS: 4m approx. (2 drms, HDOP < 4)

• WAAS: 3m approx. (2 drms, HDOP < 4)

Interface:1 Port NMEA0183

Temperature:25°C to +55°C (storage: -30°C to 70°C)

Waterproofing: IP56

Power Supply: 12-24 VDC: 0.2-0.1 A

In the box

1 X Antennas

1 X FRU-CF-F cable (15m)

1 X Pole Mount ONLY

Technical characteristics

Brand : FURUNO
Integrated GPS : 4 antennas
NMEA0183 : 3
Power input : 12/24 V
Type : Satellite Compass

Videos

Furuno SCX20 & SCX21 Satellite Compass

Parts and accessories

00111191010	NO.13-QA330 RIGHT ANGLE MOUNTING BASE 22S0286	NC
00155492000	CP20-04603 POLE MOUNT KIT Kit montage sur matereau EN STANDARD AVEC SCX21	257,44 € With VAT (22%)
00155556000	FRU-CF-F15M CABLE ASSEMBLY 20S105090	120,78 € With VAT (22%)
00155557000	CAVO INTERF 30M SC-33/GS-100 FRU-CF-F30M PER SC-33 E GS-100	225,70 € With VAT (22%)
00155624000	KIT MONTAGG SU ALBERO SCX20/21 CP20-04605 MAST MOUNTING KIT SCX-20/21	317,20 € With VAT (22%)
00155626000	OP20-52 HOSE CLAMP(LARGE)	111,91 € With VAT (22%)
00155628000	OP20-54 BIRD-REPELLENT FIXTURE	64,56 € With VAT (22%)
00155632000	OP20-53 SNOW COVER KIT	830,43 € With VAT (22%)
GL-V9174	V9174 SUPPORT INOX 10CM D:25MM POUR ANTENNE GPS	NC

00003675500	SCX-21-P SATELLITE COMPASS CHINA	NC

00157589000	20P8235B(LF) MAIN PRINTED CIRCUIT BOARD SCX-21 - Replaced by 00162397000	827,61 € With VAT (22%)
00157629000	SCX-20/21 ANTENNA ANTENNA ASSEMBLY - Replaced by 00162398000	129,12 € With VAT (22%)
00157630000	SCX-20/21 ANT CASE ANTENNA CASE ASSEMBLY	142,03 € With VAT (22%)
00162397000	20P8235B(LF) MAIN PRINTED CIRCUIT BOARD CHINA SCX-21	827,61 € With VAT (22%)
00162398000	SCX-20/21 ANTENNA ANTENNA ASSEMBLY CHINA	129,12 € With VAT (22%)

Downloads

SCX (46.0 Mo)

SCX20 21 pole mount (52.1 Ko)

SOFT SC Setting Tool Installer.zip (5.2 Mo)
