SC33

Compass Ref : IMD03668002

Satellite Compass NMEA2000

PRICE : NC


Description

Sleek, fast and accurate



The SC33 Satellite Compass provides highly accurate attitude information for navigation equipment such as Radar, Plotter, Autopilot, Fish Finder and Sonar. With its compact GNSS antenna and built-in processor, it can be used for a wide variety of applications on any type of vessel. This all-in-one system delivers incredibly accurate heading and roll & pitch information as well as heaving information, GPS position, SOG (Speed Over Ground), COG (Course Over Ground) and ROT (Rate Of Turn) data.

Employing a two-antenna system with a 3-axis gyro and acceleration sensors, the SC33 enables high-speed response capability. Advanced digital signal processing techniques compute accurate heading based on sensor data. NMEA2000 interface is standard for simple installation, while the optional interface unit IF-NMEASC is available for conventional NMEA0183, AD10 and contact closure.

A new GNSS antenna and advanced parallel signal processing allows the SC33 to achieve more precise Pitch, Roll and Heading measurement than conventional models, providing enhanced performance for all of your connected equipment. Its Micro-C pigtail NMEA2000 cable provides flexibility to run cables in challenging areas.

Revolutionary 2-antenna and rate sensor system

In order to calculate roll & pitch data, a satellite compass requires two vectors. The SC33 employs a dual GNSS antenna system that calculates a single vector while a 3-axis rate gyro and acceleration sensors add the 2nd vector. This configuration enables the SC33 to calculate highly accurate roll and pitch data without using a third sensor.

Product advantages

Compact Dome Satellite Compass SC33, NMEA2000 (0.4 degree Heading Accuracy) w/6M Cable

Features

The compas SC33 :

  • Antenna Type: Radome
  • Data Type: NMEA2000
  • Display Size: Supplied Separately
  • Display Type: Supplied Separately
  • Power Usage: 12-24 VDC
  • Receiver Type: GPS or GLONASS or Galileo or QZSS or SBAS

In the box

1 X Satellite compass SC33
1 X 6M cable
Installation materials

Technical characteristics

Brand : FURUNO
Integrated GPS : 2 antennas
NMEA0183 : OPTION IF-NMEASC
NMEA2000 : 1
Power input : 12/24 V
Type : Satellite Compass

Parts and accessories

00150706000 TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 NC
00438084000 OP20-37 BIRD-REPELLENT FIXTURE NC
00438083000 OP20-36 (FOR OPEN) BIRD-REPELLENT FIXTURE SC-603 (4PCS.) NC
00153310000 FRU-NMEA-NFF-R30 CABLE30M SC33 CABLE ASSEMBLY 20S105151 NC
00153309000 FRU-NMEA-NFF-R15 CABLE15M SC33 CABLE ASSEMBLY 20S105151 NC
00153308000 FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI NC
00153307000 FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 NC
00153306000 CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI NC
00150709000 FRU-NMEA-NFF-R30 CABLE NMEA2000 30M 20S105151 - Replaced by 00153310000 NC
00150708000 FRU-NMEA-NFF-R15 CABLE NMEA2000 15M 20S105151 - Replaced by 00153309000 NC
00150707000 FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 NC
00150705000 CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA NC
00150704000 FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 NC
00150703000 FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 NC
00150701000 FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 NC
00150700000 FRU-NMEA-PMMFF-060 CABLE ASSEMBLY 20S10510 - Replaced by 00153308000 NC
00150683000 FRU-NMEA-PMMFF-020 CABLE ASSEMBLY 20S10510 - Replaced by 00153307000 NC
00150682000 FRU-NMEA-PMMFF-010 CABLE ASSEMBLY 20S10510 - Replaced by 00153306000 NC
00150681000 OP20-50 KIT RETROFIT SC30/SC33 CABLE CONVERSION KIT NC
00001146900 IF-NMEASC INTERFACCIA NMEA 0183/2000 SC-30_33_70_130 NC
00003644200 SC-33-E-6 SENSOR CHINA NC

Downloads

Recommended Additions

DFF3D

DFF3D

NC

Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch
Details
FI70

FI70

NC

INSTRUMENT / DATA ORGANIZER 4,1" - 320×240 (QVGA) - 700 cd/m² - IPX6 - NMEA2000 - Cable 6m
Details
TZT2

TZT2

NC

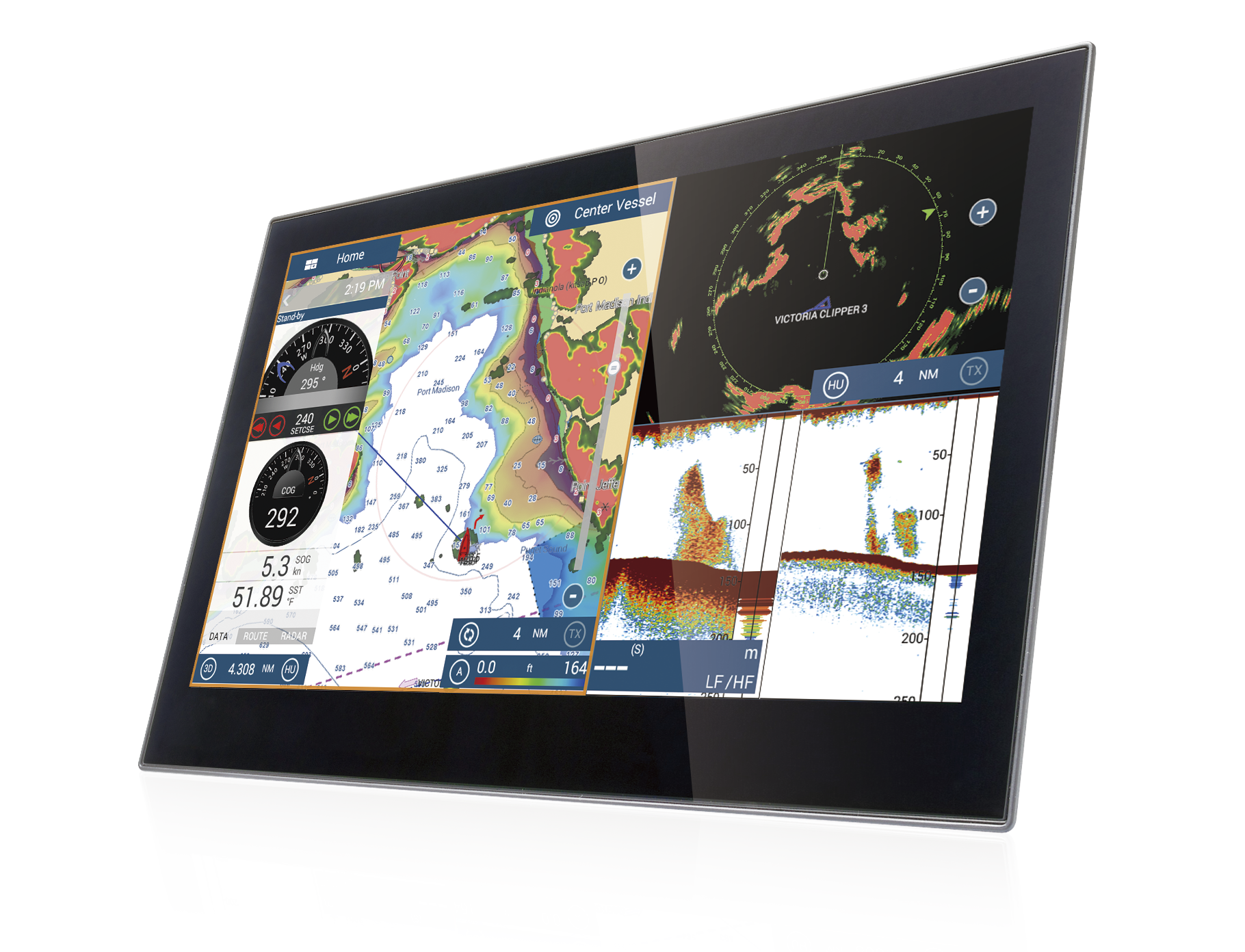

NavNet TZtouch2 Multi Touch, Multi Function Display
