FCV800

Sounder for fishing Ref : IMD040680AA

Fish Finders 8,4" with TruEcho CHIRP.

PRICE : 2 433,90 € With VAT (22%)

Find a dealer

Description

Boost your catch with TruEcho CHIRP™, Furuno's revolutionary broadband, combining multi-frequency features utilizing multiple transducers!

The FCV800 combines the power of TruEcho CHIRP™ with a host of revolutionary identification technologies to clearly distinguish fish from other structures, such as the seabed or reefs. Additionally, it allows you to use TruEcho CHIRP™ and CW technologies, such as bottom discrimination and ACCU-FISH™, together for added capabilities.

TruEcho CHIRP™

Traditional CW (Continuous Wave) Fish Finders transmit a signal composed of a single frequency, while CHIRP Fish Finders transmit a linear frequencymodulated signal - a wave with a frequency that increases over time. The FCV600 and FCV800 can utilize a broadband transducer to transmit across a spectrum of frequencies, resulting in better target resolution. With Furuno’s TruEcho CHIRP™, you’ll see greater detail and target separation for baitfish, game fish, and structure.

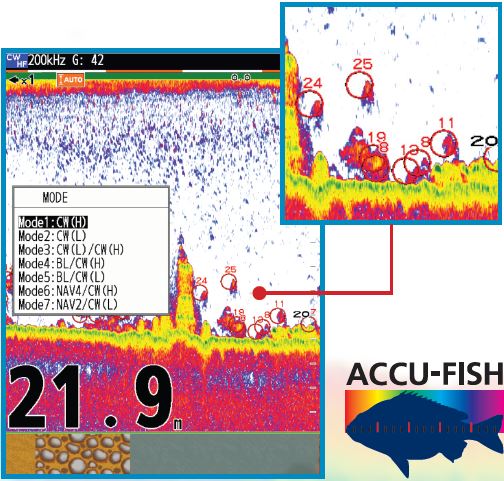

ACCU-FISH™

ACCU-FISH™ size assessment function identifies individual fish instantaneously, a technology that is proprietary to Furuno. To assess individual fish size, echo returns are evaluated based on strength and turned into fish size display (10 to 199 cm, in depths of 2 to 100 m) on the screen.
(In some instances, fish size indicated may differ from actual size. Please read operator’s manual carefully before using this feature.)

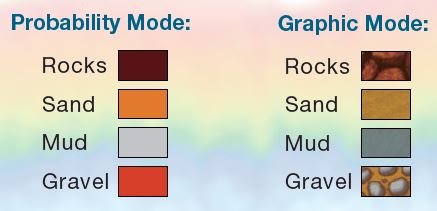

BOTTOM DISCRIMINATION

The Bottom Discrimination function enables the Fish Finder to indicate whether the bottom is composed mainly of rocks, gravel, sand, or mud, providing you with valuable information that helps locate rich fishing grounds and boost your catch of the day. The standard graphic display mode shows the most probable bottom composition by graphic or four colors, while the probability display mode shows the most probable bottom composition in graph form.

(Please read the operator’s manual carefully before using this feature.)

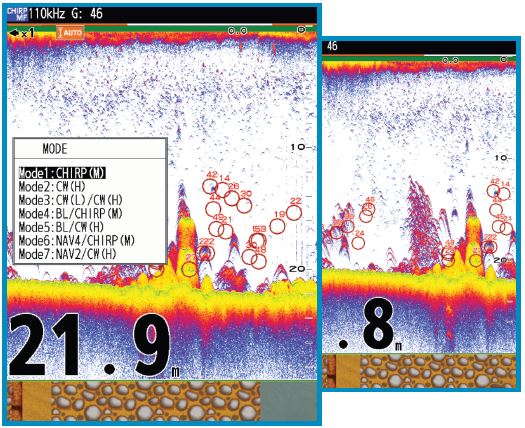

COMBINE CW & TruEcho CHIRP™ FOR ADDED CAPABILITIES

By combining CHIRP and traditional CW transducers*, you’ll see crisp CHIRP echoes on the screen while the ACCU-FISH™ and Bottom Discrimination functions from your CW transducer work in the background, overlaying important information on your CHIRP returns. You will be able to see fish targets, fish size assessment, fish depth, and bottom composition.** Up to three frequencies can be saved as preset selections.

*FCV-800 Single Frequency CHIRP only
**MF or HF CHIRP

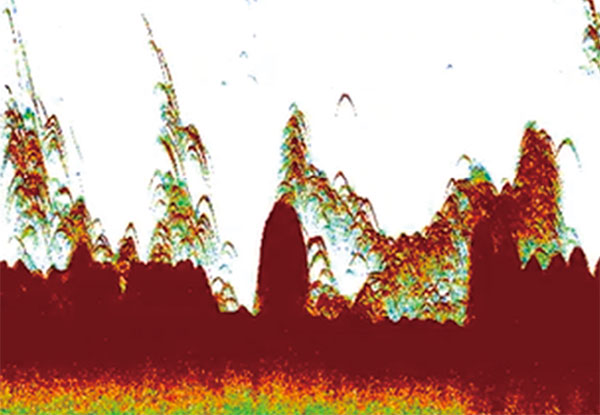

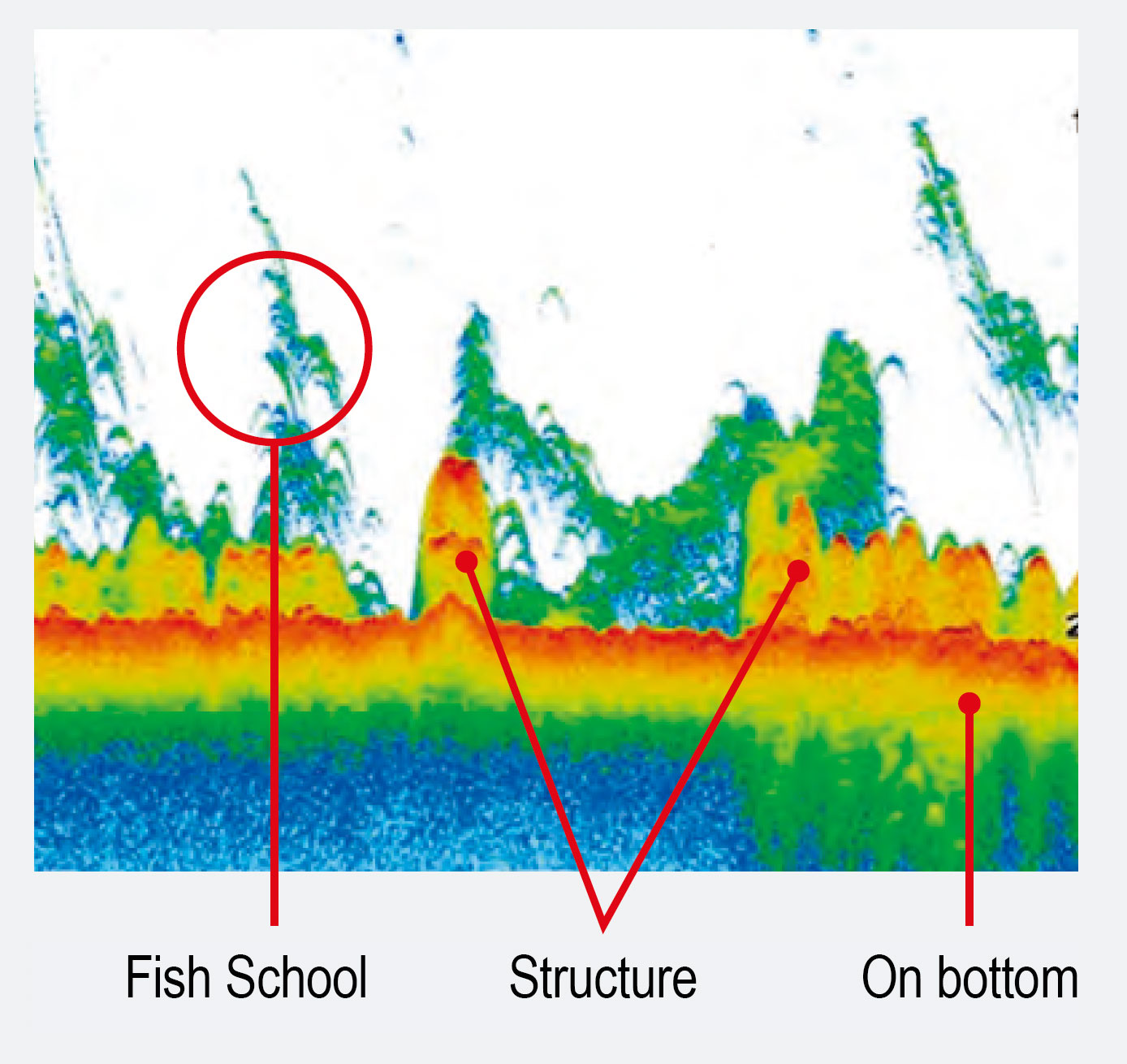

COLOR EXPANSION

With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.

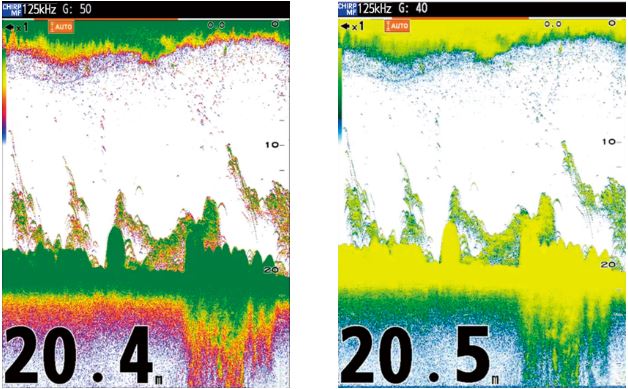

NEW Colors

Sunlight and Yellow color schemes offer enhanced visibility under bright sunlight conditions.

WIRELESS CONNECTIVITY

A second display can be installed to show the echoes and nav data from the FCV600 and FCV800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.

REZBOOST™

RezBoost™ is a revolutionary signal processing technology developed by Furuno that improves resolution and target separation using conventional CW narrowband transducers.

Spot individual game fish surrounding bait balls and fish close to the seabed. With RezBoost™, you can expect higher resolution and crisper visuals and improvements in the ACCU-FISH™ function.

RezBoost™ can dramatically improve the capabilities of conventional narrowband transducers. Compared to conventional signal processing techniques (FDF), a RezBoost™ Fish Finder produces an image up to 8 times* clearer. What can be done with a conventional narrowband transducer, just like the one you might have installed on your vessel, is truly impressive.**

*RezBoost™ performance may vary depending on depth, range, and signal frequency used.
** The Enhanced mode of RezBoost™ capable thru-hull or transom mount transducer.

Product advantages

FISH FINDER TECHNOLOGY JUST TOOK A BIG LEAP WITH TruEcho CHIRP™ AND COMBINED FREQUENCY FEATURES!

NEW ENHANCED FEATURES :

TruEcho CHIRP™ - Operates across a wide range of frequencies using a broadband transducer for better signal clarity & target definition
NEW! Combine TruEcho CHIRP™ & CW Transducers - to see CHIRP targets, ACCU-FISH™, and Bottom Discrimination functions (FCV800 only)
RezBoost™ Signal Processing - Improved clarity & resolution for conventional CW transducers
ACCU-FISH™ - A unique fish size and depth assessment function
Bottom Discrimination - Provides recognition of bottom composition with 4 types of graphic displays (Rock/Sand/Gravel/Mud)
NEW! Bottom Hardness Output - for external plotters such as TZ Professional and Olex
NEW! Color Expansion - Expands echo colors to easily identify fish from seabed
White Line Feature - Finds fish lying near the bottom by displaying the top edge of the bottom in white to clearly show bottom structure
Post Processing Gain - Adjust gain setting to screen history Configurable Alarm Function - Depth, Fish echo, Speed, Arrival, etc.
TLL (Target Lat/Lon) Output - Interface with your Furuno Chart Plotter to mark fishing ground with various information such as Depth, Water Temp, Fish Size, and Bottom Type (Requires a Chart Plotter)
Fast Transmission Rate - 3,000 PRR (Pulse Repetion Rate) per minute
NEW! Colors - Sunlight and Yellow color palettes
NEW! Wireless Connectivity - Allows secondary display capability

Features

DISPLAY

Display unit : 8.4" TFT color LCD
Pixel number : SVGA 800 x 600

FISH FINDER

Frequency :

CW: 50 and 200 kHz

CHIRP: 40 to 225 kHz

Transducer : 300 W / 600 W / 1 kW

Range Scale : 2 - 1200 m

Pulselength & PRR : 0.04 to 3.0 ms, Max 3,000 pulse/min

Display Mode : Single Frequency, Dual-Frequency, Zoom, Nav Data, A-Scope, Marker Zoom, Bottom-Lock, Bottom Discrimination, Color Expand, ACCU-FISH™, RezBoost™

ACCU-FISH™ : Yes

Bottom Discrimination : yes

OTHERS

Waterproofing : IP56
Power Supply : 12-24 VDC: 1.6 - 0.8 A
Size : 290 (W) x 281 (H) x 136 (D) mm
Weight : 2.4 kg (w/Bracket Mount)

In the box

1 X Display Unit With BracketDisplay Unit With Bracket
1 X Installation Materials and Standard Spare Parts

Technical characteristics

Brightness : 800 cd/m2
CHIRP : TruEcho CHIRP
Frequency : 50/200 + CHIRP kHz
Function : RezBoost + ACCU-FISH + Buttom Discrimination
NMEA0183 : 1
Power : 1k W
Power input : 12/24 V
Resolution : 800x600 Pixels
Screan size : 8.4"
Waterproof : 56 IP

B60-20	The bronze B60-20º Traditional/CW	NC
200B-5S	200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800	452,74 € With VAT (22%)
B260	Transducer True-hull 1kW Bronze 50/200 kHz 2 functions	NC
B744VL	Tranducer True-Hull 600W Bronze 50/200kHz 3 Functions	NC
B744V	Transducer True-Hull 600W Bronze 50/200kHz 3 functions	NC
B60-12	The Transducer bronze B60-12º Traditional/CW	NC
P66 DST	P66 TRIDUCER 600W Multisensor features our 50/200 kHz, dual-frequency, single-ceramic element	NC
P66D	Transducer 600W True-Hull plastic 50/200kHz Depth - Replaced by AI-31-470-4-01	NC
B45	Thru Hull transducer 600W 50/200 kHz Bronze 2 functions (B45)	NC
ST-02PSB	ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN	229,36 € With VAT (22%)
ST-02MSB	ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN	352,58 € With VAT (22%)
00002722600	MB-1100 MATCHING BOX 1kW COLLEGAMENTO TRASD. DUAL LINE -	451,40 € With VAT (22%)
50B-6	50B-6 10M SONDE 1KW 50KHZ - Replaced by 00003835100	411,31 € With VAT (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800	396,52 € With VAT (22%)
00001517000	Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000	1 355,81 € With VAT (22%)
50/200-12M	TRANSDUCER 50/200-12M (BRONZE) DUAL FREQ. non ROHS BRONZE 50/200KHz 1KW 12M	1 355,81 € With VAT (22%)
525-5PWD	525-5PWD TRASDUTTORE 600W 50-200kHz CAVO 8M CONN 10-PIN PLASTICA DA POPPA - Replaced by 00003827700	NC
00001521200	520-5MSD TRASDUTTORE 600W 50/200kHz CAVO 8M CONN 10-PIN BRONZO PASSANTE	524,60 € With VAT (22%)
00002689300	T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE	479,46 € With VAT (22%)
00002689400	T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA	161,04 € With VAT (22%)
00001520400	Plastic transducer 600W 50/200kHz (520-5PSD)	225,70 € With VAT (22%)
P319DT	Transducer 600W True Hull Plastic 50/200kHz, bi-function P & T	NC
SS60-0	SS60-0 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M	NC
SS60-12	SS60-12 SONDE TR INOX 600W 50-200KHZ/P-T/XID 10M	NC
B164 12	B164 Traditional/CW 12° 1 kW power, 50/200 kHz multiple-ceramics, Bronze transducer housin, Depth and fast-response water-temperature sensor	NC
B164 20	B164 Traditional/CW 20° 1 kW power, 50/200 kHz multiple-ceramics, Bronze transducer housin, Depth and fast-response water-temperature sensor	NC
SS164-20	Transducer - 50/200 kHz - 1 kW RMS - 20° Tilt - Stainless Steel - Exclusive Xducer ID® technology	NC
M260	Transducer In-Hull 1000W 50/200 kHz	NC
TM260	TM260 Transom, 1 kW, Broadband - Wide 19° beam at 50 kHz - Narrow 6° beam at 200 kHz - Interfaces to any 600 W or 1 kW sounder - Depth and fast-response water-temp	NC
P79 D	Transducer 600W In-Hull Plastic 50/200kHz Depth	NC
AI-33-046-01	INSERT DE REMPLA. POUR B744V POUR SONDE B744V B744V	NC
AI-33-479-01	SUPPORT PLAST. POUR P66 TA POUR SONDE P66	NC
AI-33-476-06	SABOT PROFILE 0 POUR B744V	NC
AI-33-203-04	CAVO 9M PROLUNGA 10PIN M/F DST PER TRASDUTTORI CONN FURUNO SONDE 10B	195,20 € With VAT (22%)
AI-33-509-05	SABOT PROFILE 0 POUR B45	NC
AI-33-113	ST650 ROUE A AUBE 4 PALES POUR B744V / ST800	NC
AI-33-473-01	ROUE A AUBE 4 PALES POUR P66 KIT 33-473-01 POUR P66	NC
AI-20-073	SUPPORT VENTOUSE SONDETRIE PORTABLE TRANSOM MOUNT BRACKET	NC
AI-33-391-01	FAIRING BLOCK B260 HIGH PERFORMANCE - AIRMAR	318,42 € With VAT (22%)
AI-33-523-02	SABOT PROFILE POUR B258 B285 HIGH PERFORMANCE - AIRMAR - Replaced by AI-33-523-01	NC
AI-33-539-02	CAISSON POUR SONDE M260 Model M260 in hull tank kit	NC
AI-33-204-01	CORDON ADAPT 8PM<->10PF 1M C332 1M 8M-F 10F	NC
00164108000	FRU-CF-H16-02M CABLE D'ALIM. FCV800	NC
00163615000	FRU-MJ10CCB12-30 CABLE ADAPTA 10P-10P-12P POUR FCV800 pour CHIRP double bande 1 kW	NC
00163824000	OP02-88 KIT DE MONTAGE ENCASTR FCV800	NC
B265LH	BroadBand Trasducer CHIRP P&T XID 42-65/130-210 kHz 1kW	2 671,80 € With VAT (22%)
CM265LH	Transducer CHIRP, P & T, XID 42-65/130-210 kHz 1kW	2 427,80 € With VAT (22%)
B275LH-W	B275LHW Wide-Beam Chirp	3 525,80 € With VAT (22%)
TM275LH-W	CHIRP Transducer TM275LH-W EXT (TA) Plastic 1KW XID CABLE 12M	2 989,00 € With VAT (22%)
TM150M	Transducer CHIRP simple band 95-155kHz, 300W, True-Hull, plastic, depth and temperature, Beam angle 26°/17°, cable 12m	573,40 € With VAT (22%)
B75M	Transducer CHIRP simple band 80-130kHz, 600W, True-Hull, Bronze, depth et temperature, beam angle 26°/16°, cable 9m	NC
B75H	Transducer CHIRP simple bande 130-210Hz, 600W, True-Hull, Bronze, depth et temperature, beam angle 26°/17, cable 9m	NC
B75H	B75H 20 DT SONDE TR BR CHIRP 130-210HZ/600W/12M/10B GP1X71F	NC
TM165HW	Transducer CHIRP simple band WIDE 150-250kHz, 600W, True-Hull, plastic, depth et temperature, beam angle 30°, cable 9m	NC
B175L	B175L 20 DT SONDE TR BR CHIRP 40-60KHZ/1KW/9M/MM AI-33-1423-01 NECESSAIRE	NC
TM185M	Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, plastic, depth et temperature, beam angle 16 to 11°, cable 12m.	NC
B285M	Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, bronze, Depth and temperature, Beam Angle 24°/16°, Cable 9m de cable	NC
B175M	Transducer CHIRP simple band 85-135kHz, 1KW, True-Hull, Bronze, Depth and temperature, Beam Angle 16°/11°, Cable 9m de cable	NC
B175M	B175M 20 DT SONDE TR BR. CHIRP 85-135KHZ/1KW/9M/MM NEED AI-33-1424-01 NECESSAIRE	NC
TM185HW	Transducer CHIRP simple band WIDE 150-250kHz, 1KW, True-Hull, plastic, depth et temperature, beam angle 25°, cable 9m	2 019,10 € With VAT (22%)
B175HW/20	B175HW 20 DT SONDE TR BR CHIRP 150-250KHZ/1KW/12M/10B GP1X71F	NC
AI-33-1423-01	CABLE M&M CHIRP FREQUENCE L 1 M 12MM 10F	128,10 € With VAT (22%)
AI-33-1424-01	CABLE M&M CHIRP FREQUENCE M/H 1 M 12MM 10F 1M 12M&M 10F	128,10 € With VAT (22%)
MMC-12F-FU	CABLE M&M/12BROCHES CHIRP TZT3 CORDON D'ADAPTATION	168,36 € With VAT (22%)

00004271000	FCV-800-E UNITE DE CONTROLE	NC
