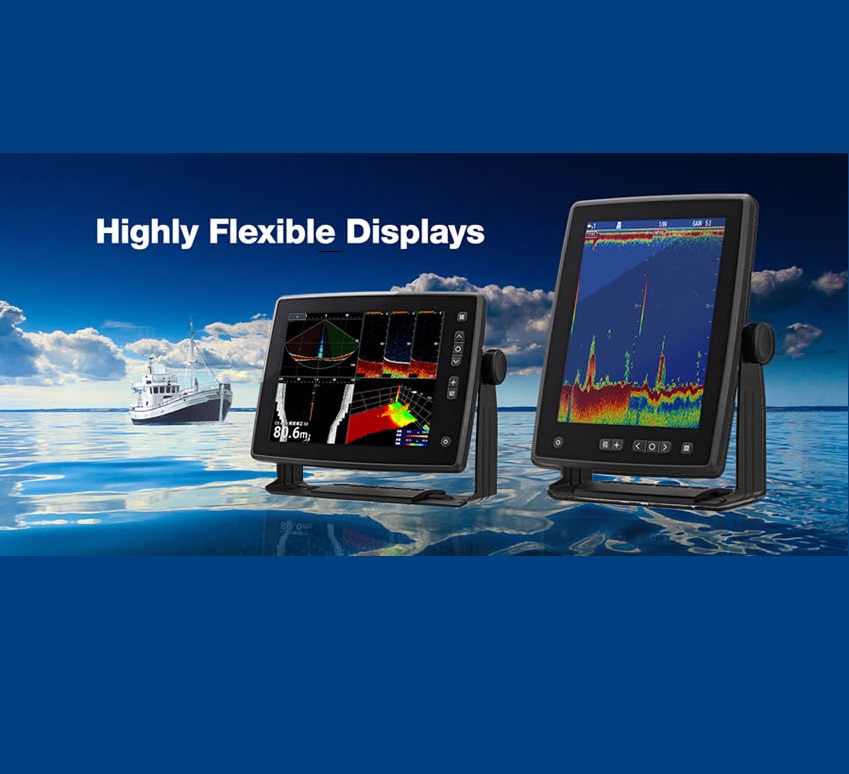

SFD1010
FLEX Function Display Ref : IMD040210AASingle function touch display 10,4" for multi-beam sonar, fish finder or radar
PRICE : 2 183,80 € With VAT (22%)Description
Compatibility with our most popular sensors : Including Multibeam Sonar, Radar and Fish Finder.
Multibeam Sonar

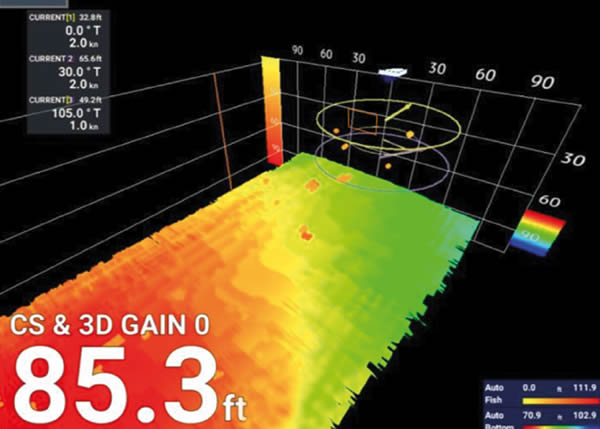

NEW? DFF-3D/SFD Combo features sea current overlay & virtual net mark
Thanks to a virtual fishing net, you will be able to determine the position of the net's mouth in relation to the targeted school of fish and thus increase the efficiency of your catch. In addition, you can overlay sea current information as shown in the picture.

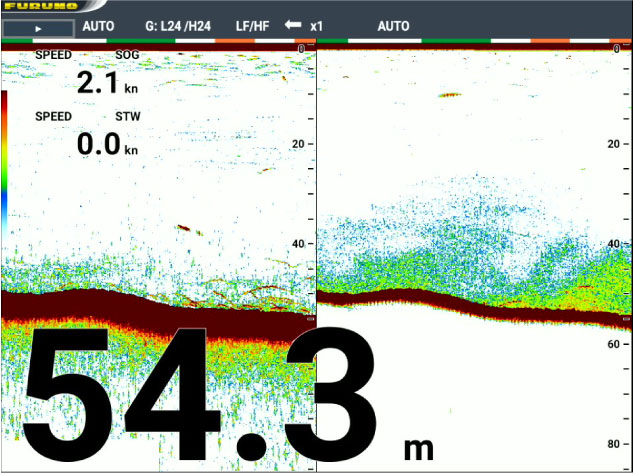

Fish Finder
Choose your best Fish Finder Among BBDS1, DFF1, DFF1-UHD, DFF3 depending on your needs.
High Resolution Fish Finders provide better bottom contours & clearer presentation that separates bottom structure from bottom fish.

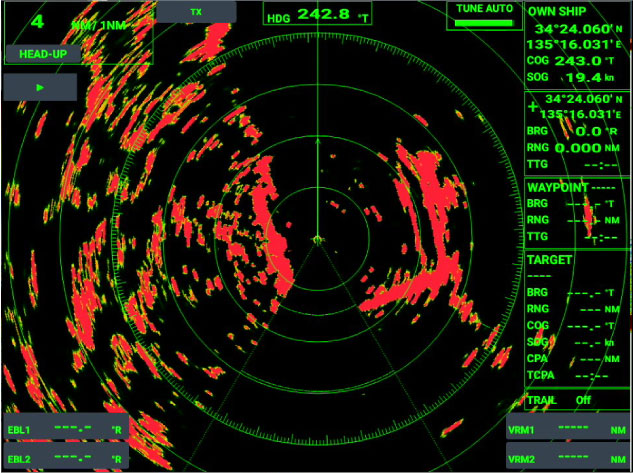

Radar
Connect our Plug-and-Play Radar to ensure your safety at sea with the extremely compact Radome 19" DRS4DL+ which features Fast Target Tracking™ and requires only one LAN cable and one Power Supply cable for its installation.
The Multi-station feature allows you to connect two SFD displays to one Radar. We recommend the vertical orientation when using Off-center. it is perfect for Workboats

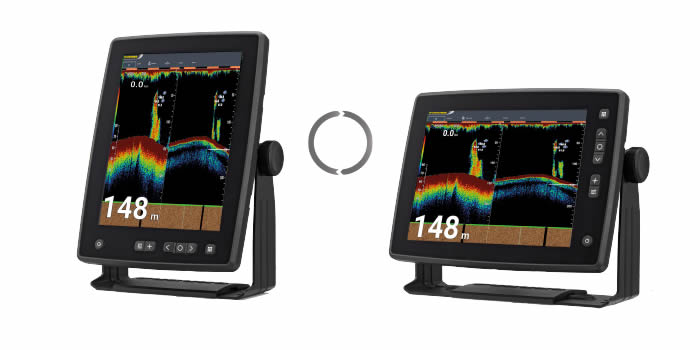

Flexible orientation for your favorite display mode
Freely adjust the orientation of your display in a short time and without the need for any tool to do it!

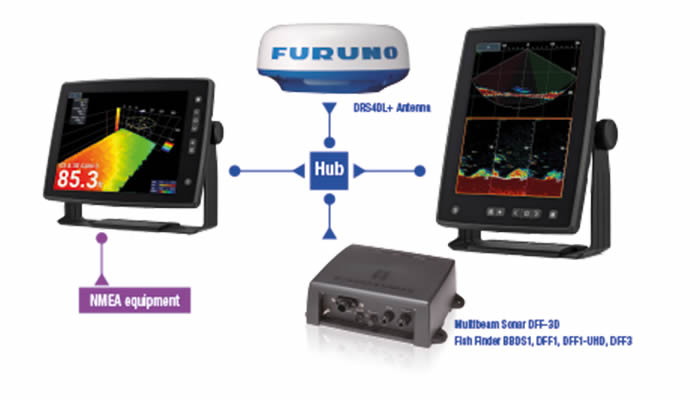

Flexible configuration with the Multi-Station
Connect two SFD-1010/1012 display units with two sensors at the same time or two display units with one sensor through the Hub unit to be able to view your desired modes at the same time with only one setup.
Available configurations:
2 Sensors with 2 Displays
1 Sensor with 2 Displays
1 Sensor with 1 Display
*2 Display units max
*1 Radar unit max for each configuration
Product advantages
Features
Display unit:
SFD-1010 10.4'' TFT color LCD
SFD-1012 12.1'' TFT color LCD
Screen Resolution:
SFD-1010 1024x768 (XGA)
SFD-1012 1024x768 (XGA)
Viewing Angle:
80°(minimum)
Screen Brightness:
800 cd/m²
Interface:
-Serial: 2 ports, NMEA0183
-LAN: 1 port, Ethernet 100Base-TX, RJ45
-USB: 1 port, USB2.0 (Type A), For maintenance
-NMEA2000: 1 port
-HDMI output: 1 port, 1280x768 (HD)
Data sentence:
-Input: GGA, GNS, HDG, HDT, MDA. MWV, RMA, RMB, RMC, THS, TLL, VHW, VTG, WPT, ZDA
-Output:TLL
Temperature:
-15°C~+55°C
Waterproofing:
IP25
Power Supply:
12-24 VDC: 3.0-1.5 A
Weight:
SFD-1010 2.4 kg 5.3 lbs
SFD-1012 2.6 kg 5.7 lbs
Technical characteristics
Screan size : 10,4
Parts and accessories
| RCU-030 | RCU-030 TRACKBALL CONTROL UNIT USB PER ECDIS & RADAR - | NC |
| 00008644300 | OP03-136 OP03-136 - | 122,40 € With VAT (22%) |
| 00003767000 | IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA | 317,20 € With VAT (22%) |
| 00001176200 | HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation) | 963,80 € With VAT (22%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 36,60 € With VAT (22%) |
| 00016797211 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 | 111,91 € With VAT (22%) |
| 00016797311 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 | 193,69 € With VAT (22%) |
| 00107783010 | FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 - | 36,60 € With VAT (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € With VAT (22%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 89,06 € With VAT (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € With VAT (22%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 80,43 € With VAT (22%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 72,64 € With VAT (22%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 101,42 € With VAT (22%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 79,30 € With VAT (22%) |
| 00016796911 | CB-05PM+05BF-020 CABLE ASSEMBLY 19S1164-1 | 135,58 € With VAT (22%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 36,60 € With VAT (22%) |
| 00153306000 | CAVO 1M MICRO NMEA2000 M/F FRU-NMEA-PMMFF-010 CONNETTORI M/F DRITTI | NC |
| 00153307000 | FRU-NMEA-PMMFF-020 NMEA2000 MICRO5C DROITE M/F 2M 20S105101 | NC |
| 00153308000 | FRU-NMEA-PMMFF-060 FRU-NMEA-PMMFF-060 CON CONNETTORI M/F DRITTI | NC |
| 00158889000 | MOD-Z073-030+ CABLE EQUIPE RESEAU PC/HUB POE 19S1146-0 | 58,56 € With VAT (22%) |
| 00016797011 | CB-05PM+05BF-060 CABLE ASSEMBLY 19S1164-1 | 225,97 € With VAT (22%) |
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 250,10 € With VAT (22%) |
| 00016050710 | NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 | 135,58 € With VAT (22%) |
| 00016050810 | LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 | 60,52 € With VAT (22%) |
| 00016050910 | LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 | 44,38 € With VAT (22%) |
| 00016714010 | JOINT BOX TL-CAT-012 - | 37,66 € With VAT (22%) |
| 00016796811 | CB-05PM+05BF-010 CABLE ASSEMBLY 19S1164-1 | 122,40 € With VAT (22%) |
| 00016797111 | CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 | 83,94 € With VAT (22%) |
| 00003807900 | SFD-1010-E DISPLAY UNIT 26S101230 | NC |
| DFF3D | Black Box Sounder Multi-Beam 800 W 165 kHz for NAVnet TZtouch | 2 671,80 € With VAT (22%) |
| DFF1-UHD | Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch | 2 427,80 € With VAT (22%) |
| BBDS1 | Black Box Sounder with BDS 1 kW 50/200 kHz for NNTZT and TZT2 | 1 207,80 € With VAT (22%) |
| DRS4DL+ | 4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable. | 2 379,00 € With VAT (22%) |
| SCX20 | Unprecedented stability with Quad antenna Satellite compass NMEA2000 - Replaced by IMD031520AB | NC |
| SCX21 | Unprecedented stability with Quad antenna Satellite compass NMEA0183 - Replaced by IMD036670AB | NC |
