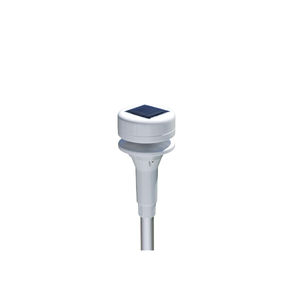

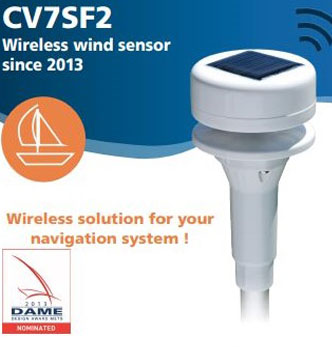

CV7SF2

Wind and weather sensors Ref : LC-CV7SF2

Ultrasound anemometer, wireless solution for your navigation system !

PRICE : NC

Find a dealer

Description

Wireless solution for your navigation system !

This sensor is powered by its own solar panel. The receiver is power supplied. The radio protocol used has been widely tried and tested since 2013 on our previous versions. This model is suitable for cruising boats, sailing clubs, weather stations, sports clubs, harbour master’s offices and many others.

Product advantages

The CV7SF2 is ultrasonic wind sensor solar wireless designed for day-boats, cruise sailing boats, club houses, sport grounds, parks, local weather stations.The major improvement of this product is that it could work under daylight and night time. The ultrasonic wind sensor solar wireless CV7SF2 is endowed wind measurement frequency about 16 Hz. By calculation, it could have a data refresh about 2 Hz frequency.

The ultrasonic wind sensor solar wireless CV7SF2 is provided with a battery last technology, type of LiFePo4. The main feature is that the battery can be charged or discharged lots of time. Moreover, the battery is compatible with high temparatures, that we can see at the top of the mats. On the other hand, the battery is interchangeable.

Furthermore, a barometer has been added on this product.

The ultrasonic wind sensor solar wireless CV7SF2 is compatible with :

NMEA0183
NMEA2000 *
Bluetooth *
Wifi *
* with option

Features

In the box

1 X CVSF72 ultrasonic wind sensor solar wireless with 31 cm vertical arm
1 X Mounting bracket
1 X Receiver box
1 X Installation and operation manual
2 years guaranty parts and labour

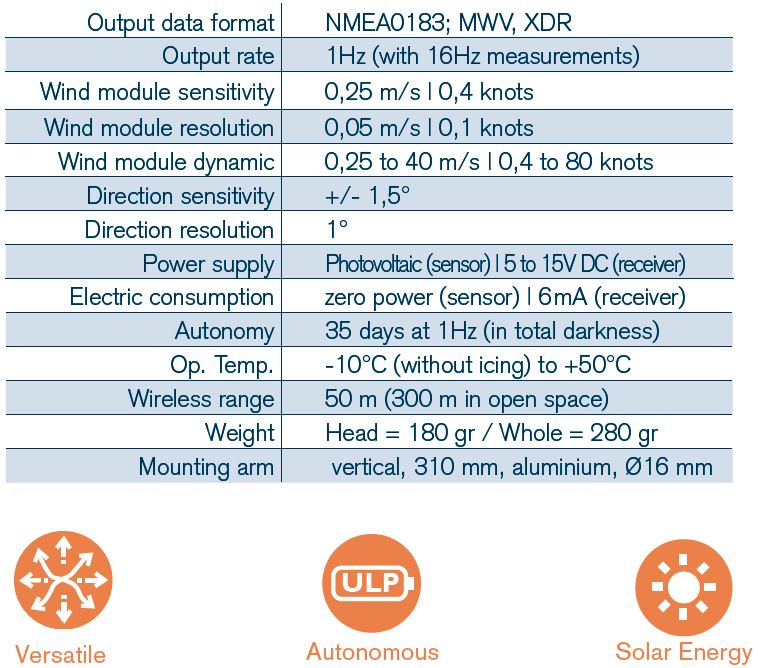

Technical characteristics

Applications : All
Barometer : NO
Bracket : Vertical
Brand : LCJ Capteurs
Dynamics of the wind module : 0.25-80 Nds
NMEA0183 : 1
Sensitivity of direction : ±1 °
Type : Ultrasonic
Weight : 0.2 Kg
Power input : 12 V
Wind module sensitivity : 0.25 Nd
