DS85
Doppler Speed Log & Current Indicator Ref : IMD0338000ADoppler Speed Log pair-beam 2MHz, 4.3" MED approved
PRICE : NCDescription
OVERVIEW
The DS85 is an IMO approved SDME (Speed and Distance Measuring Equipment) utilizing the Doppler Effect principle to obtain highly accurate speed & distance measuring.
Unlike an electromagnetic speed log or other type, this equipment does not require a sensor protruding through the ship hull; this greatly reduces the routine maintenance.
FOCUS
- New transducer works at 2MHz high frequency with capability to measure own ship speeds at slow movement with high accuracy
- Detects less air bubble than DS80, providing more stable and reliable data
- Display Color LCD 4.3" WQVGA (480 x 272)
- Simple user interface and easy-to-read display
- LAN interface (comply with IEC61162-450)
- Serial Output IEC 61161-1/2-450 for ARPA, AIS and other shipborne equipment interface
- Complies with the latest IMO, IEC standards
- DS-820 (transducer for DS-80) compatible* - This compatibility allows retrofit of the speed log DS80 without having to replace the tank & transducer
*1MHz frequency when used with DS85 - New compact and lightweight Ball valve DS-854 for easy installation - only 27Kg

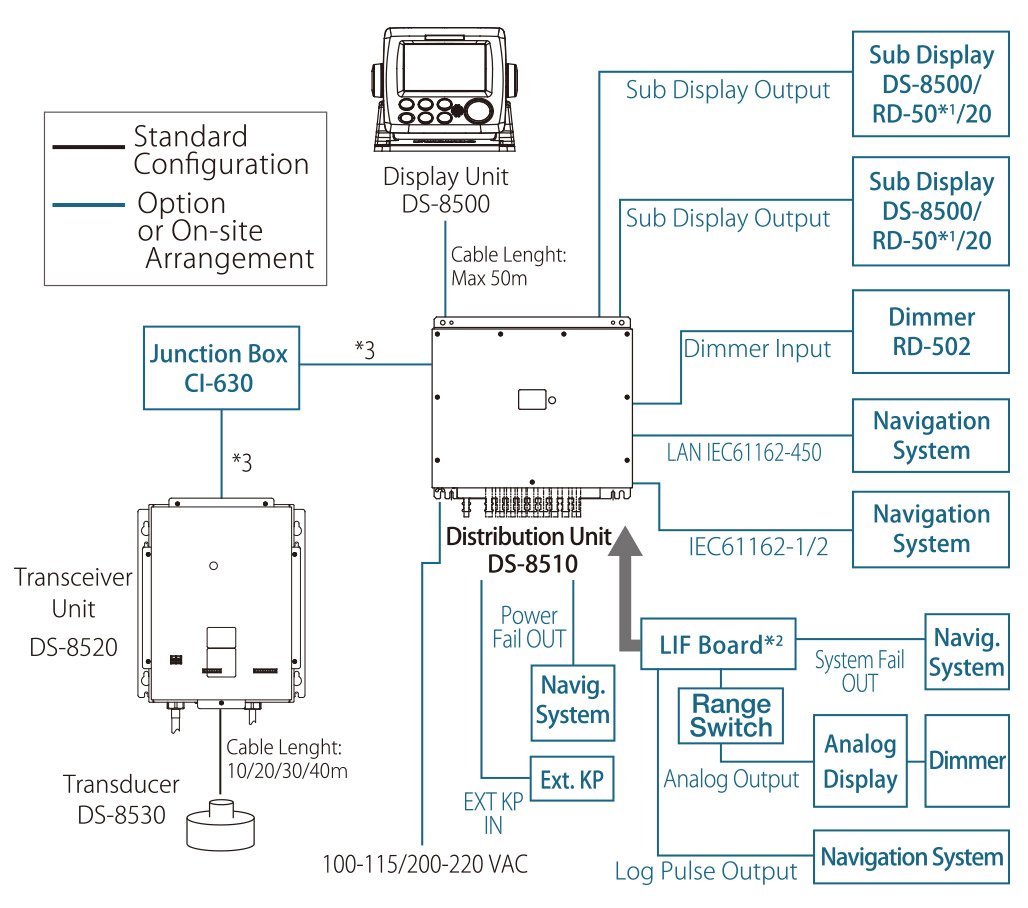

INTERCONNECTION DIAGRAM
*1 _When connecting two RD-50, use the power supply onboard. The Distribution Box can only supply power to one device.
*2 _LIF board for analog signal output is option
*3 _The cable lenght (Distribution Box to Tranceiver Box) is up to 400m. If necessary, use the Junction Box.
Product advantages
Thanks to its new transducer, the 2MHz high frequency transmission and narrow beam width detects less air bubbles, providing more stable and reliable data.

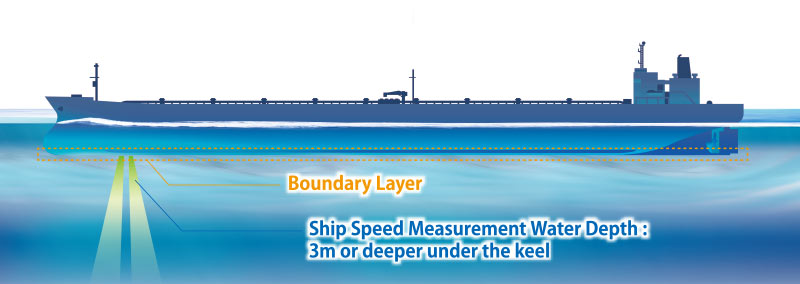

In addition, by measuring speed through water (STW) farther away from the keel - 3m or deeper under the keel - the DS-85 resulting in a more stable and accurate speed measurement compared to an electromagnetic speed log.
Features
The main features of the DS-85 are:
-Measures ship's speed through the water using Doppler effect
-Pair-Beam system for minimize error caused by pitching

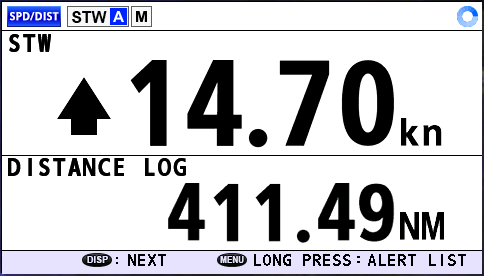

-Speed and distance information on new 4.3" color LCD display with simple user inteface easy-to-read
-When the speed measurement is abnormal, the speed value from external navigation device can be displayed
-MED type approved - conforms to latest IMO, IEC standards:
IMO A.824(19) / MSC.97(72)
IMO A.694(17)
IEC 60945: 2001
IEC 62288
IEC 61023/IEC 61162 (SDME)
IEC 62923-1: 2018/ IEC 62923-2: 2018 (BAM - Bridge Alert Management which to be mandatory in August 2021)
In the box
1 x DISPLAY UNIT DS-8500
1 x DISTRIBUTOR UNIT DS-8510
1 x TRANSCEIVER UNIT DS-8520
1 x INSTALLATION MATERIALS
1 x SPARE PARTS
Parts and accessories
| 00003798800 | TRANSDUCER TANK BALL VALVE | NC |
| 00001926800 | DS-786-NK-N-KA GAVE VALVE DS85 PER TRASDUTTORE DS-80_85 GATE VALVE & TANK | NC |
| 00001926700 | DS-784 TANK TRASDUTTORE DS-85 MONTAGGIO A BASSO PROFILO PER SPEED LOG DS-80_85 | NC |
| 00003415500 | DS-781 TANK CARENAGE POUR SONDE PROJECTION TYPE | 2 549,80 € With VAT (22%) |
| 00001619800 | DIMMER (RD20/ RD50) | NC |
| 00003772100 | SL-200-4 ANALOG INDICATOR | NC |
| 00001599710 | FL-200S-1 INDICATORE ANALOGICO ANALOG INDICATOR | NC |
| 00003772200 | SL-200-5 ANALOG INDICATOR | NC |
| 00006939100 | MF-22R-1 RANGE SELECTOR FLUSH MOUNT | NC |
| 00120805000 | CP24-02900(10M) INSTALLATION MATERIALS | NC |
| 00120806000 | CP24-02910(20M) INSTALLATION MATERIALS | NC |
| 00120807000 | CP24-02920(30M) INSTALLATION MATERIALS | NC |
| 00124725000 | KIT MONTAGGIO A INCASSO SC-70 FRONT FIXING PANEL FRONT MOUNT KIT | NC |
| 00142650000 | KIT TENUTA STAGNA DS-8500 OP05-139 WATER PROOF KIT DS85 | 42,70 € With VAT (22%) |
| 00142651000 | OP05-140 REPLACEMNT KIT | NC |
| 00143688000 | OP05-141 F_MOUNT CUSHION KIT | NC |
| 00150992000 | CP66-02201 INSTALLATION MATERIALS FOR J-BOX | NC |
| 00156449000 | OP65-3(65P6111) PCB(LIF) DS-85 OPTION | NC |
| 00157142000 | OP65-4 SC LOCK DS-85 | NC |
| 00692733000 | CP66-00703 INSTALLATION MATERIALS FOR J-BOX | NC |
| 00003414700 | DS-F25 DIMMER 100V 65S100110 | NC |
| 00001599810 | FL-200S-2 ANALOG INDICATOR | NC |
| 00001520600 | TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE | NC |
| 00002029710 | FL-200S-1W ANALOG INDICATOR | NC |
| 00001600010 | SL-200-1 INDICATORE ANALOGICO ANALOG INDICATOR | NC |
| 00001616410 | SL-200-2 INDICATEUR ANALOGIQUE | NC |
| 00002914600 | CI-630-CS JUNCTION BOX 10M CBL COLLEGAMENTO TRASDUTTORE CI-68/88 DS-80/85 | NC |
| 00002942500 | SL-200-3 ANALOG INDICATOR | NC |
| 00001619700 | Remote controle (RD20 / RD50) | NC |
| 00003414800 | DS-FE25 DIMMER 200V 65S100110 | NC |
| 00003414900 | DS-S25 DIMMER 100V 65S100110 | NC |
| 00003415000 | DS-SE25 DIMMER 200V 65S100110 | NC |
| 00003736100 | TRANSDUCER FOR DS85 WITH 20 M CABLE | NC |
| 00003736200 | TRANSDUCER FOR DS85 WITH 30 M CABLE | NC |
| 00003736300 | DS-8530-40 TRASDUTTOR 40M CAVO PER DS-85 | NC |
| DS-8530 | DS-8530-10 TRANSDUCER UNIT | 3 664,72 € With VAT (22%) |
| 00003736900 | DS-8510 DISTRIBUTOR UNIT DS85 | NC |
| 00003734800 | DS-8500 DISPLAY UNIT PER DS-85 UNITA' CONTROLLO CHINA | NC |
| 00003735400 | DS-8520 TRANSCEIVER UNIT DS85 | NC |
| 00160046000 | 65P6121(LF) TRX PRINTED CIRCUIT BOARD DS-8520 | 991,43 € With VAT (22%) |
| 00160045000 | 65P6120(LF) MAIN PRINTED CIRCUIT BOARD DS-8520 | 1 067,70 € With VAT (22%) |
| 00160035000 | 65P6110(LF) DST PRINTED CIRCUIT BOARD DS-8510 | 2 375,36 € With VAT (22%) |
| 00160027000 | 20P8200G(LF) MAIN PRINTED CIRCUIT BOARD CHINA DS-8500 | 824,78 € With VAT (22%) |
| 00160024000 | DS-8500 CVR/LCD/PCB FRONT COVER & MAIN PCB CHINA | 1 242,83 € With VAT (22%) |
| 00144336000 | FA-1702 REAR COVER ASSEMBLY CHINA | 101,42 € With VAT (22%) |
| 00144330000 | FA-1702 C-IF ASSEMBLY CHINA | 790,89 € With VAT (22%) |
| 00130704000 | 12P1003(LF) FIL PRINTED CIRCUIT BOARD | 618,59 € With VAT (22%) |
