FCV1900

Sounder for fishing Ref : IMD02200000

Black Box Sounder 1-3 kW 28-200 kHz

PRICE : NC

Find a dealer

Description

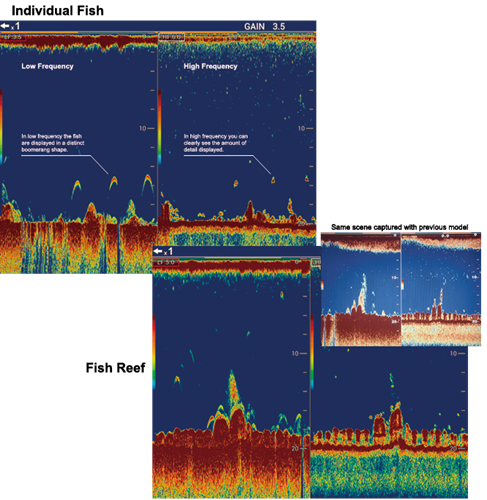

See underwater with incredible high definition echoes

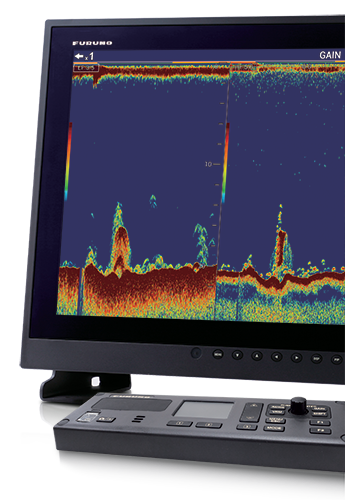

The FCV1900 is a powerful, dual-frequency Fish Finder designed for both commercial and sport fishing boats. It comes with an easily set 1kW, 2kW or 3kW transmitter. It features the Furuno Free Synthesizer (FFS) transceiver, which allows easy selection of a broad range of operating frequencies (15 kHz to 200 kHz).
Retrofitting is made easy with FFS technology. You can easily replace an older FCV1200 processor unit while utilizing the same transducer for convenient installation. Plus we've made the operation of the FCV1900 simple and intuitive with the improved control unit. The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

More vivid details due to our increased transmission rate

With a transmission rate that has been increased by up to 1.4 times (200m range), the FCV1900 series ensures excellent target separation and clarity. You will be seeing individual targets and fish reefs like never before.

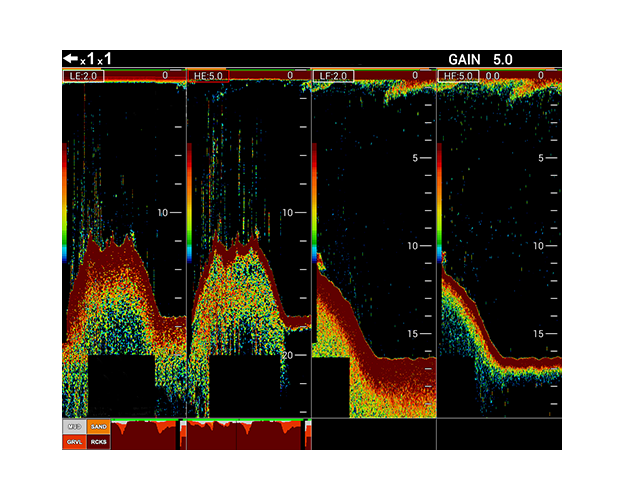

Display up to four different frequencies

Display up to four different frequencies together in a compact and easy way by connecting a required network Fish Finder. Since there is no need to install additional displays, this system is especially useful for small vessels. When connected to the BBDS1 you gain the bottom discrimination function, which indicates whether the bottom is composed mainly of rocks, gravel, sand or mud. This information aids in identifying fish species and minimizing bycatch, which can increase efficiency.

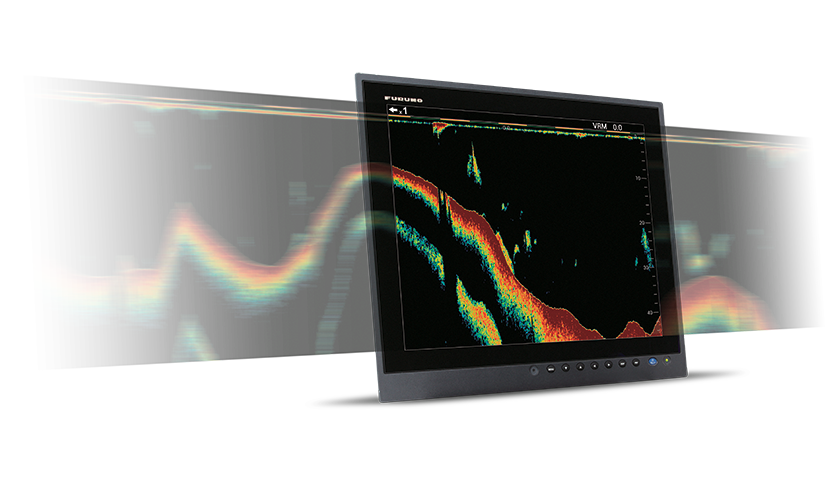

Did you see that? now you can with the scroll back function

With the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

Instantly see what you've been missing

Use the Simultaneous Gain Setting to increase the visibility of the echo returns on the screen. Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

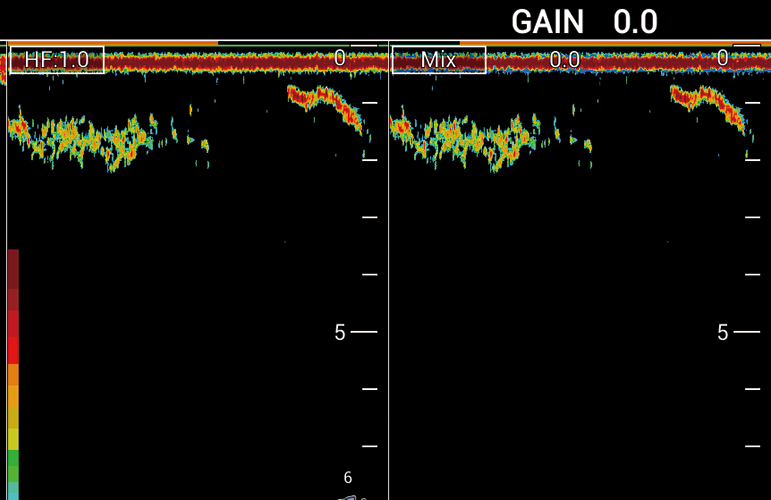

Enjoy outstanding shallow water performance

Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyze the water column from near to far.

Product advantages

Increased transmission rate
Display up to four frequencies
Simultanous gain settings
Zero Line Rejection
Scroll back function

Features

See underwater clearly and accurately with incredible high definition echoes. With a transmission rate that has been increased by up to 1.4 times (200m range), FCV-1900 ensures excellent target separation and clarity.

In the box

1 x Processor Unit FCV-1901
1 x Control Unit FCV-1902
1 x HDMI Adapter Cable 1 m
1 x Installation Materials

Technical characteristics

Frequency : 15-200 kHz
NMEA0183 : 1
Power : 1k-3k W
Power input : 12/24 V
Resolution : 1024 x 768/1280 x 1024/1920 x 1080 Pixels
Screan size : Black box
Waterproof : 22 IP
HDMI OUTPUT : 1
LAN : 1

Parts and accessories

00001024600	FP05-05700 HS-2003 COMBINE HS2003 + SUPPORT FS2571C	503,05 € With VAT (22%)
00001252000	BT-5-1 BOOSTER BOX 10KW/MONOFREQUENCE -	1 024,80 € With VAT (22%)
00001252100	BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA -	NC
00001363200	PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT	NC
28F-8	28F-8 15M SONDE 1KW 28KHZ 15M RICOPERTO IN GOMMA - Replaced by 00003834900	1 530,67 € With VAT (22%)
28F-38M	28F-38M 30M SONDE 5KW 28KHZ 30M 5KW 28KHz 30M	4 620,52 € With VAT (22%)
28F-72	28F-72 15M SONDE 10KW 28KHZ 15M 10KW 28KHz 15M	5 921,99 € With VAT (22%)
50F-38	50F-38 15M SONDE 5KW 50KHZ 15M 5KW 50KHz 15M FCV1200+BT5	4 247,39 € With VAT (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 30M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835200	788,06 € With VAT (22%)
88B-8	Transducer 88B8 (1kW) - 88kHz - Rubber - cable 15m	908,90 € With VAT (22%)
88B-10	Sonde 88B10 - 88kHz - Rubber - câble 15m	1 182,18 € With VAT (22%)
200B-5S	200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800	452,74 € With VAT (22%)
200B-8B	Transducer 200B8B (1 or 2kW) - 200kHz - Rubber - cable 15m	NC
200B-8B	200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 30M NO CONNETTORE RICOPERTO IN GOMMA	689,30 € With VAT (22%)
200B-8B	200B-8B 50M SONDE 2kW 200kHz 200kHz/ 2kW	1 163,73 € With VAT (22%)
50BL-24H	50BL-24H SONDE 3KW 50KHZ 3kW 50kHZ	NC
50B-6	50B-6 10M SONDE 1KW 50KHZ - Replaced by 00003835100	411,31 € With VAT (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800	396,52 € With VAT (22%)
00001506500	Transducer 50B9B - 50kHz - Rubber - cable 15m - Replaced by 00003835400	646,83 € With VAT (22%)
200B-12H	5 kW/ 200 kHz / 4 degree Beam Angle / 11 lbs. Rubber Coated - Tank Mounted / 15-Meter Cable, no connector provided	NC
28BL-6HR	Transducer 28BL-6HR - 28kHz - Plastic - cable 15m	NC
28BL-12HR	28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	NC
38BL-9HR	38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	NC
82B-35R	Transducer 82B35R 65 to 110kHz - Rubber - cable 15m	4 288,29 € With VAT (22%)
50BL-12HR	Furuno FRP Transducer Blt Type 50BL-12HR 2kw 50kHz No Plug	3 037,80 € With VAT (22%)
00001509400	50BL-24HR SONDE 3KW 50KHz 15M 3KW 50 KHz	NC
00001517000	Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000	1 355,81 € With VAT (22%)
00001520600	TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE	NC
00001520700	TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) -	1 135,49 € With VAT (22%)
00001520900	TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE	1 024,80 € With VAT (22%)
00001521300	TPB-9000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.9 THRU-HULL PIPE	152,50 € With VAT (22%)
CM265LHG	CM265LHG TRASDUTTORE CHIRP 1kW 42-65/130-210kHz BROADBAND URETANO CAVO 12M CON TEMPERAT	NC
00002689300	T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE	479,46 € With VAT (22%)
00002689400	T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA	161,04 € With VAT (22%)
00003043900	RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP	NC
00015402810	MJ-A7SPF0007-050C	NC
00015402910	MJ-A6SPF0003-020C CABLE EQUIPE	66,44 € With VAT (22%)
00015405410	Data cable (6PF<->Nu) 5m	48,80 € With VAT (22%)
00116788010	LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181	83,94 € With VAT (22%)
00116789010	MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB	89,06 € With VAT (22%)
00116790010	LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181	151,72 € With VAT (22%)
00124051000	FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124052000	FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124053000	FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00140716000	CABLE ASSEMBLY A-TO-D-ADAPTER 02S10091	NC
00140718000	HDMI-TO-DVI-L=5.3M CABLE EQUIPE - - Replaced by 00147145000	NC
EXU00001000	UPGRADE KEY FCV1900/FCV1900B MOD. CHIRP FURUNO	NC
EXU00001001	UPGRADE KEY FCV1900/FCV1900G MOD. CHIRP & FISH SIZE GRAPH FURUNO	NC
EXU00001002	UPGRADE KEY FCV1900B/FCV1900G MOD. CHIRP & FISH SIZE GRAPH FURUNO	NC
CM265LH	CM265LH SONDE EXT COQUE PLAST 1KW/CHIRP/P-T/XID 20M CM265LH CABLE 20M	NC
CM599LH	Transducer CHIRP, P & T, XID 28-60/130-210 kHz 2-3kW	NC
00001176200	HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation)	963,80 € With VAT (22%)
00001500500	28F-38M 15M SONDE 5 kW ; 28 kHz	4 336,84 € With VAT (22%)
00001500800	28F-72 30M TRANSDUCER	6 195,57 € With VAT (22%)
00001501100	50F-70 15M SONDE 10 kW ; 50 kHz	5 185,98 € With VAT (22%)
00001503000	200B-8 10M TRANSDUCER	635,53 € With VAT (22%)
00001506700	68F-8H TRANSDUCER	1 135,49 € With VAT (22%)
00001506800	88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA	3 750,28 € With VAT (22%)
00001507300	68F-30H TRANSDUCER	2 785,60 € With VAT (22%)
00001507400	150B-12H 15M TRANSDUCER	4 421,18 € With VAT (22%)
00001509200	38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP	4 623,80 € With VAT (22%)
00001521500	TRB-1000(1) THRU-HULL PIPE	NC
00001521800	TRB-1100(2) THRU-HULL PIPE	2 378,05 € With VAT (22%)
00002036700	RJB-002 JUNCTION BOX	NC
00002253200	TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE	1 024,80 € With VAT (22%)
00002740300	CM265LM 12M SONDE EXT COQUE CHIRP/PLAST. 1KW/P-T/XID/NU	NC
00002740400	PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA	NC
00002740500	PM111LM TRANSDUCER	NC
CM599LHG	CM599LHG TRANSDUCER URETANO CON SENS TEMP	NC
CM599LM	CM599LM TRANSDUCER 28-60 kHz et 80-130 kHz	NC
00002740800	CM275LHW TRANSDUCER	NC
00002740900	TRB-1100(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE	NC
00002743800	100B-10R TRANSDUCER	NC
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM	NC
200B-5S	200B-5S 10M SONDE 1KW 200KHz 10M 02S3110-2	348,92 € With VAT (22%)
28F-8	28F-8 TRASDUTTORE 28kHz 1kW SONDE 1KW 28KHZ 15M caoutchouc	NC
50/200-1T (RUBBER)	Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic	1 232,20 € With VAT (22%)
50B-6	Transducer 1kW 50kHZ 50B-6 10M 28 degree Beam Angle ; 6.6 lbs. ; Rubber Coated - Chest, Housing or Tank Mounted ; 10-Meter Cable, no connector provided ; May be used for 75 kHz frequency setting feature, available only FCV1100/1200 and FCV1200BB	411,31 € With VAT (22%)
50B-6B	50B-6B TRASDUTTORE 50kHz 1kW SONDE 1KW 50 KHz 30M RICOPERTO IN GOMMA	719,80 € With VAT (22%)
50B-9B	Transducer 50B9B - 50kHz - Rubber - cable 15m	561,20 € With VAT (22%)
00003835500	68F-30H TRANSDUCER	2 785,60 € With VAT (22%)
00003835600	68F-8H TRANSDUCER	NC
50B-6B	50B-6B 15M TRANSDUCER	NC
00003908800	88F-126H TRANSDUCER 02S3024-2	4 221,85 € With VAT (22%)
00015964310	MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1 - Replaced by 00159608000	NC
00016892410	MJ-A6SPF0003-100C SIGNAL CABLE ASSEMBLY 20S0093-1	NC
00110754010	RNS-08-132 CABLE ASSEMBLY 03S0020	NC
00124766000	NCS-2RNCTSB 20M CABLE ASSEMBLY 02S4191-1	NC
00124767000	NCS-2RNCTSB 50M CABLE ASSEMBLY 02S4191-1	NC
00124768000	NCS-2RNCTSB 100M CABLE ASSEMBLY 02S4191-1	NC
00137458000	C44-02 50M EXTENSION CABLE	NC
00137462000	C44-02 30M CABLE RALLONGE	1 022,51 € With VAT (22%)
00137464000	C334 30M EXTENSION CABLE	NC
00140717000	HDMI-TO-DVI-L=10.3M CABLE ASSEMBLY 02S10090	NC
00147144000	HDMI-TO-DVI-A-L10.3M CABLE POUR ECRAN DEPORTE CH-500/600 - Replaced by 00159466000	NC
00147145000	HDMI-TO-DVI CAVO HDMI/DVI 5M PER DISPLAY ESTERNO SONAR CH-500/600 - Replaced by 00159467000	NC
00149891000	CP013638-07-A(550MM) CABLE ASSEMBLY(USB) 02S101150	NC
00159466000	HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540	NC
00159467000	HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540	NC
00159608000	MJ-A6SPF0003-150C SIGNAL CABLE ASSEMBLY 20S0093-1	138,81 € With VAT (22%)

00002738500	FCV-1901-E PROCESSEUR	NC
00002739700	FCV-1902-E UNITE DE CONTROLE	NC

MU150HD	15" LCD Display High Bright - Replaced by IMD040540BA	NC
MU190HD	19" LCD Display High Bright - Replaced by IMD040530BA	NC
MU190	19" LCD Display IMO for Radar and ECDIS - Replaced by IMD033080BC	NC
MU231	23.1" LCD Display IMO for Radar and ECDIS - Replaced by IMD033100AC	NC

00141878000	19P1084A(LF) MAIN PRINTED CIRCUIT BOARD FCV-1901 - Replaced by 00153637000	3 792,50 € With VAT (22%)
00141880000	02P6392(LF) CTRL PLATINE FCV-1901 - Replaced by 00155831000	3 368,27 € With VAT (22%)
