FAR2228BB

IMO APPROVED

The Black Box FAR-2xx8 BB marine radar series is IMO Cat. 1 , Cat. 2 and Cat. 3 compliant.

• Cat 1 in combination with the following monitors FURUNO MU-231, FURUNO MU-270W, HATTELAND 23", 26", 27", 32", 55"
• Cat 2 in combination with the following FURUNO MU190, HATTELAND 19", 20" and 24" monitors
• Cat 3 in combination with the following monitors FURUNO MU-152, HATTELAND 15" monitors

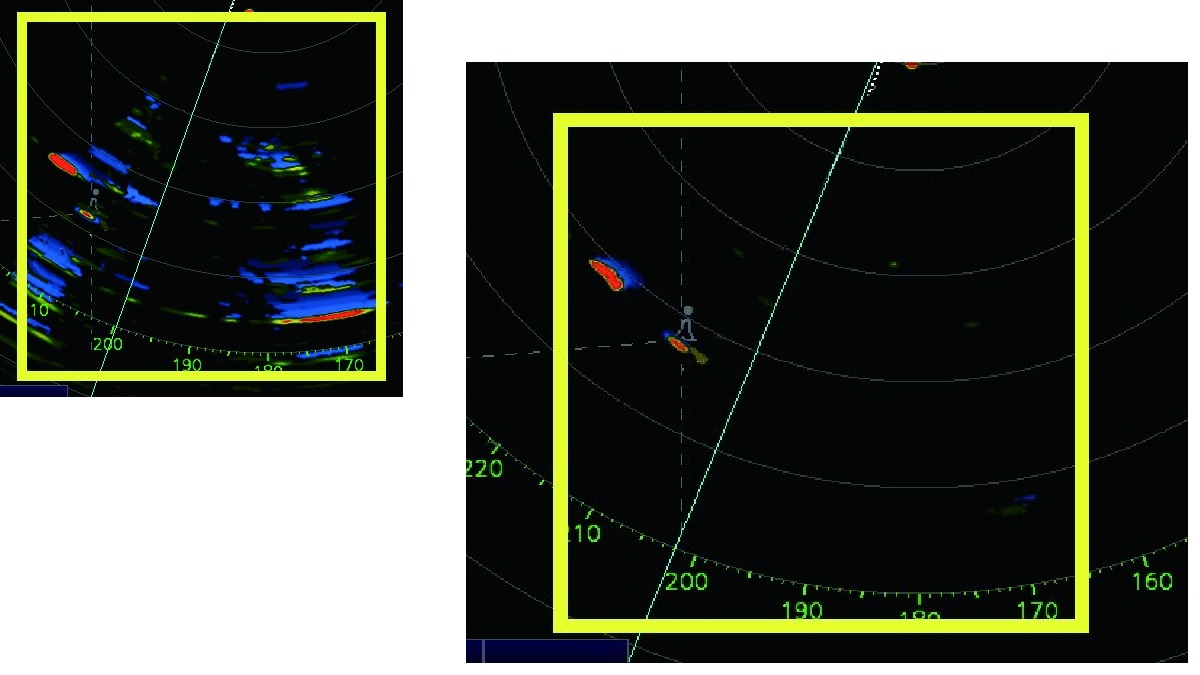

Automatic Clutter Elimination (ACE)

This new feature allows the improvement of target visualization through a dedicated ACE command. Once activated, the system automatically adjusts the clutter, gain, anti-sea and anti-rain filters based on the user's preset (calm/rough sea/heavy rain).

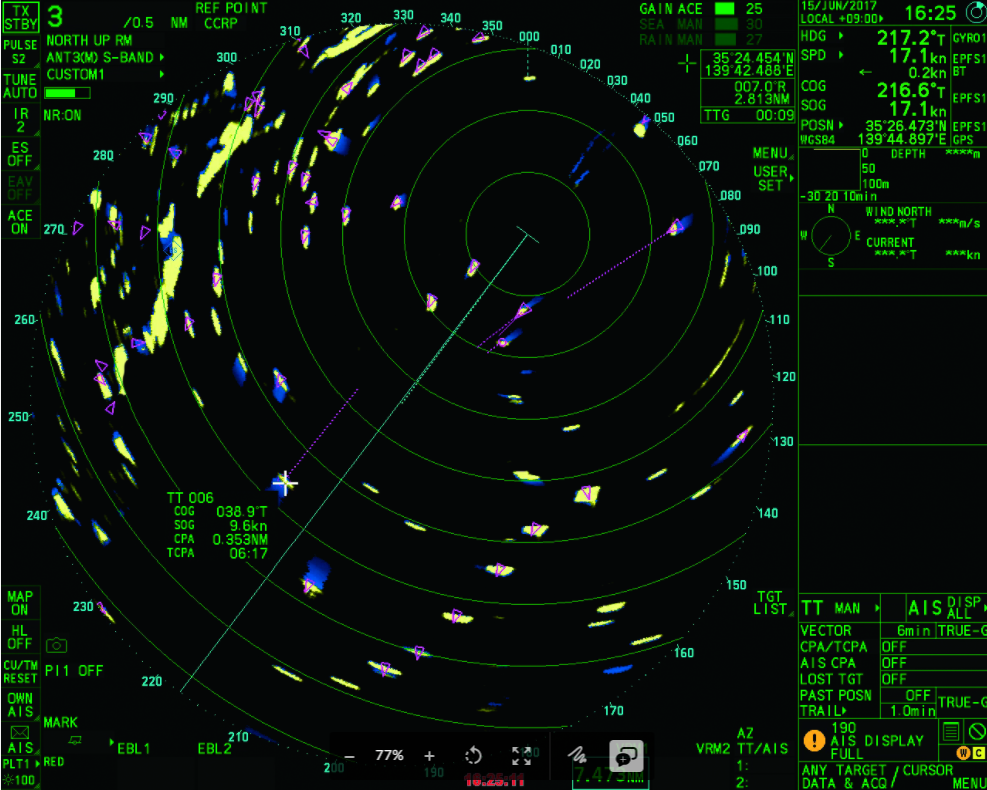

Fast Target Tracking™ (ARPA)

The target tracking™ (ARPA) function has been significantly improved by significantly reducing the target acquisition time. All the new FAR-15XX series nautical radars feature the advanced ARPA 50 fast tracking targets acquisition feature with which the nautical radar is able to lock on to targets automatically in just a few moments.

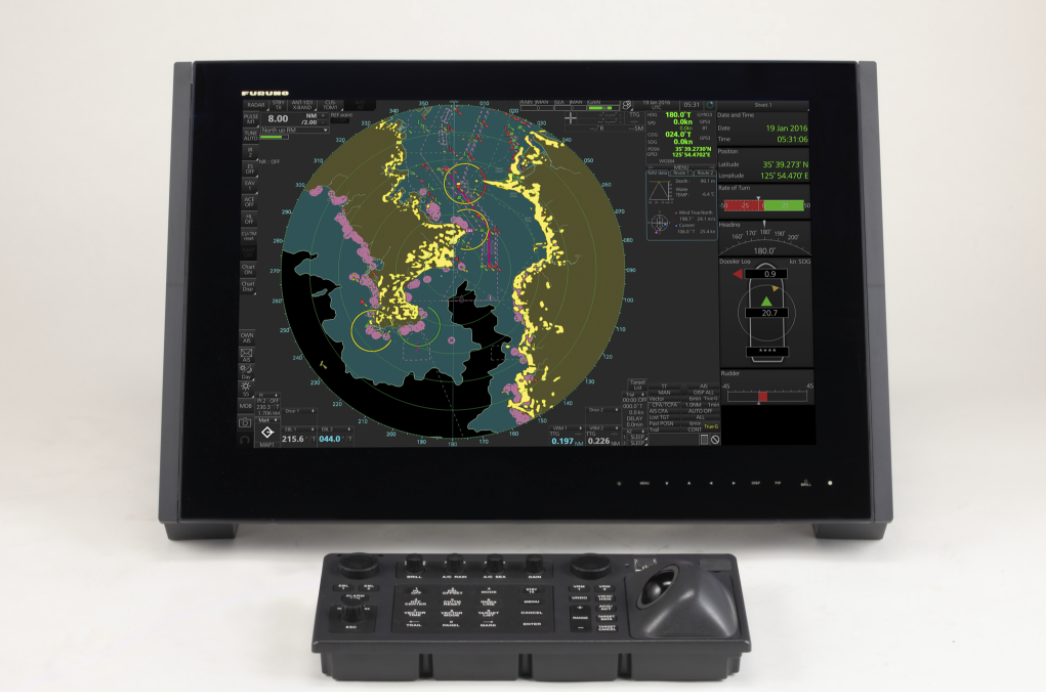

Wide DISPLAY COMPATIBLE

The FAR-2xx8 series provides compatibility with WIDESCREEN format monitors also in the IMO version. The WIDE approved monitors are the FURUNO MU-270W and the HATTELAND models from 26" to 55". Despite the different sizes, the number of PPI remains unchanged in order to clearly show on the screen the data necessary for navigation as per legislation. The convenient InstantAccess bar™ allows, through a series of very intuitive icons, to change the radar settings with a simple click of the trackball.

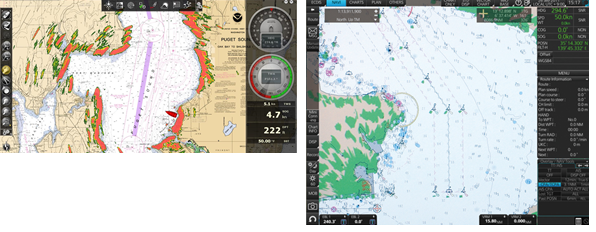

RADAR OVERLAY ON ECDIS AND MAXSEA TIMEZERO

As on other nautical radar models, the FAR2XX8 series also allows the overlapping of the radar beat (Overlay) both on ECDIS devices and on MaxSea TIMEZERO software. An Ethernet connection between the two peripherals is sufficient to activate this function.

* required for HUB-100 or HUB-3000 Switching Hub connection.

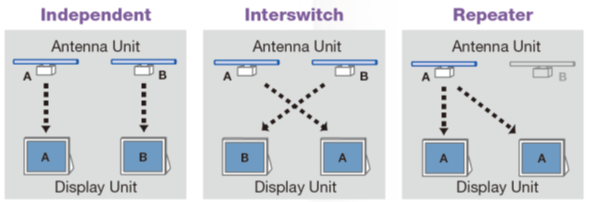

Interswitch FUNCTION

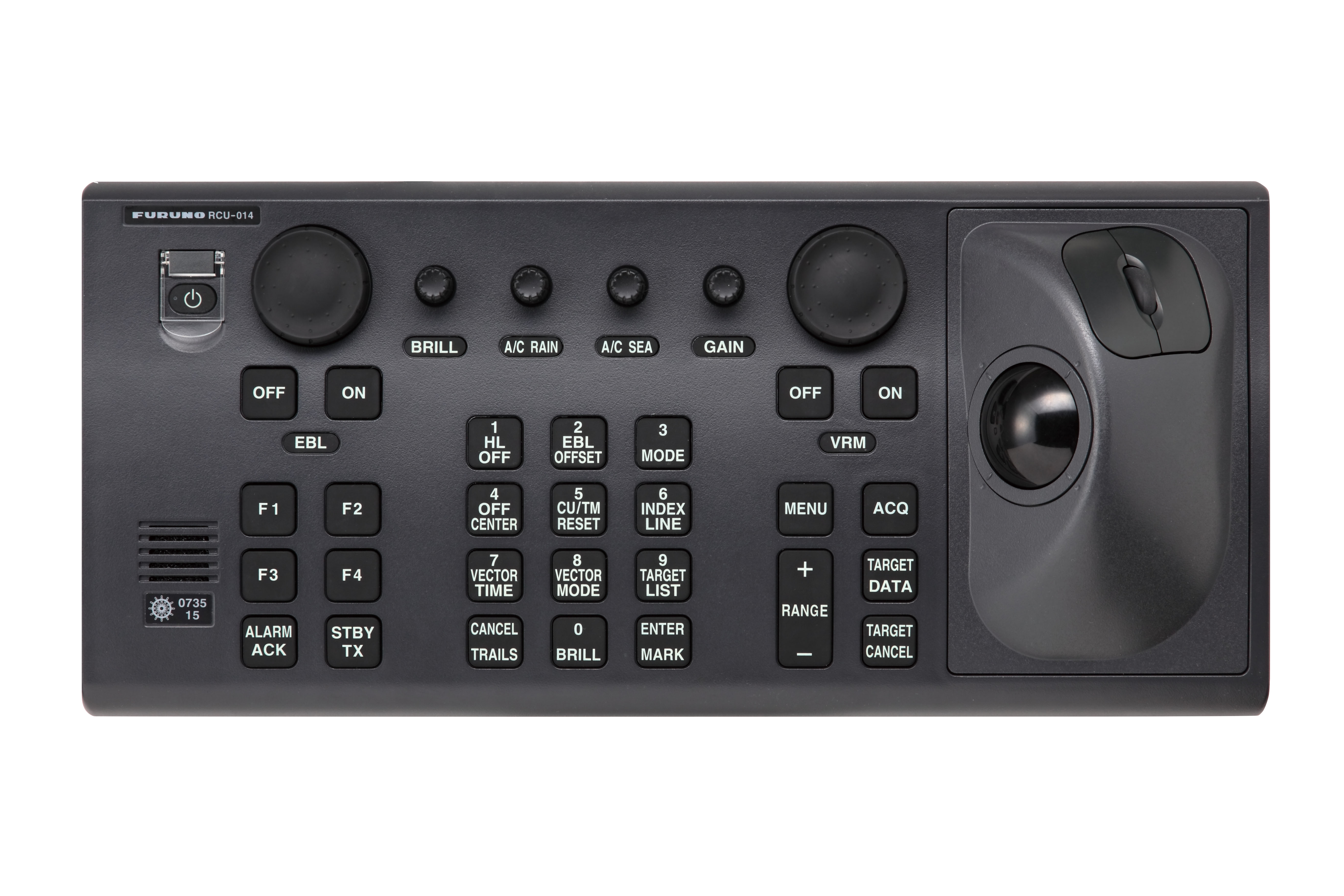

CONTROL UNIT
