FAR1513BB/12KW/24RPM

Radars FR & FAR series Ref : IMD03468000

Radar X-Band Black Box - 12kW - ARPA 50 TARGETS - 96MN - 24V - 24rpm

PRICE : NC

Find a dealer

Description

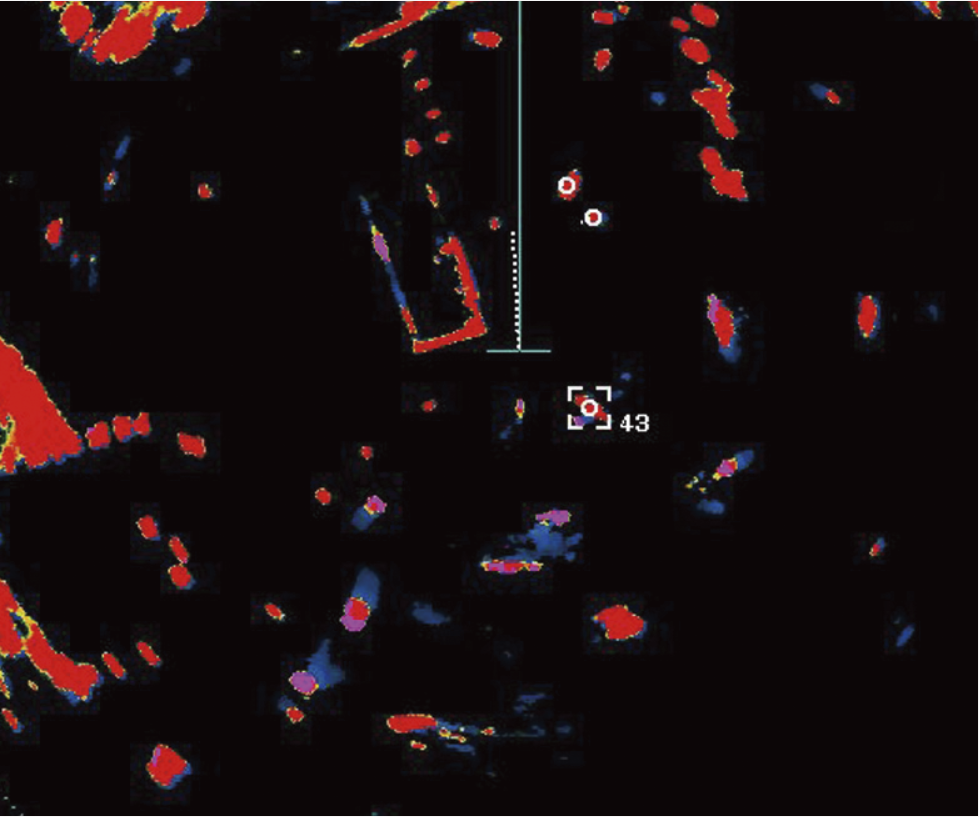

Target Analyzer™:

This new technology gives you even more safety on board. An automatic and continuous calculation is made on each target. All potentially dangerous targets for your ship change color from green to red. You immediately identify the vessel that is becoming a danger to you. Do not confuse the echoes of buoys or boats at anchor with those of boats advancing towards you. You can even detect thunderstorms (rain) represented in blue, as well as the movement of targets (Echo trail).
https://www.youtube.com/watch?v=cKGPg4bKCWs

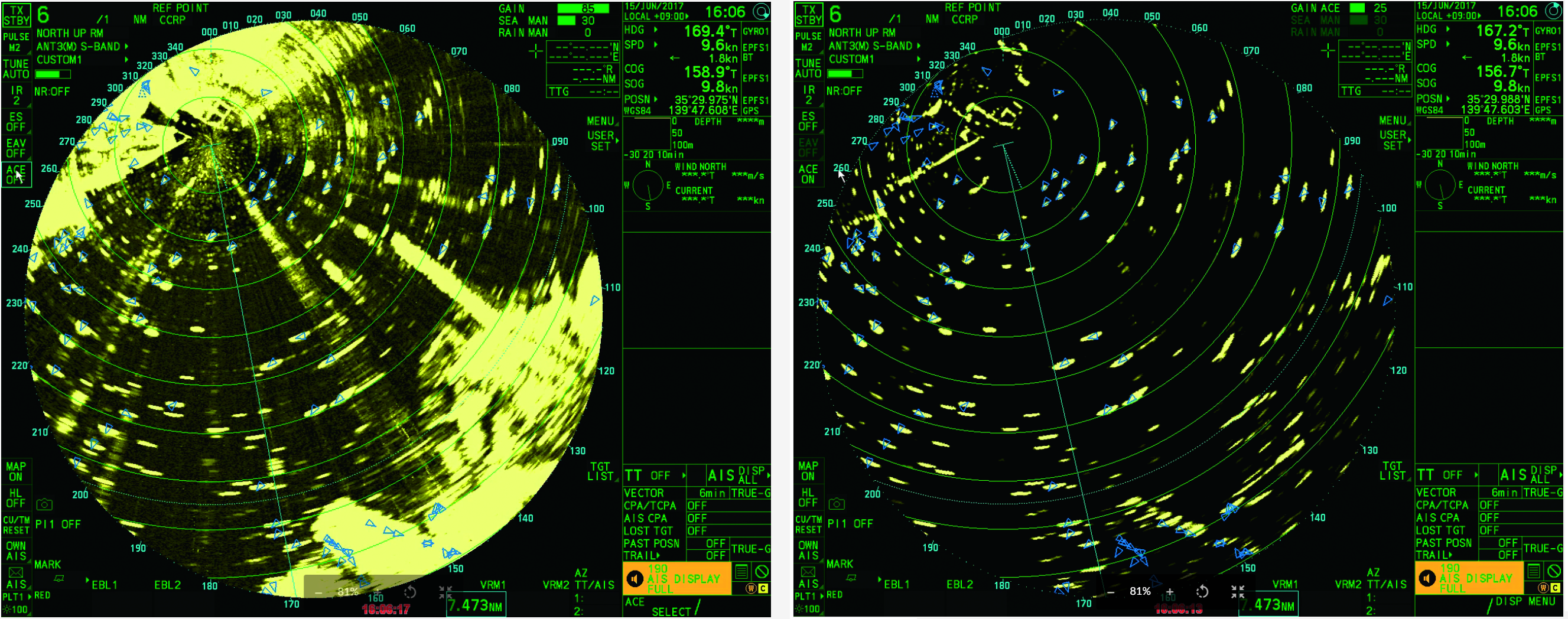

ACE FEATURE SUPPRESSES FALSE ECHOES

The new ACE (Anti Clutter Elimination) function allows a clearer display of echoes. The ACE's automatic mode allows the noise reduction filter settings to be adjusted according to sea or weather conditions without the user having to make complex adjustments.
https://www.youtube.com/watch?v=wUFtWY7nrOw

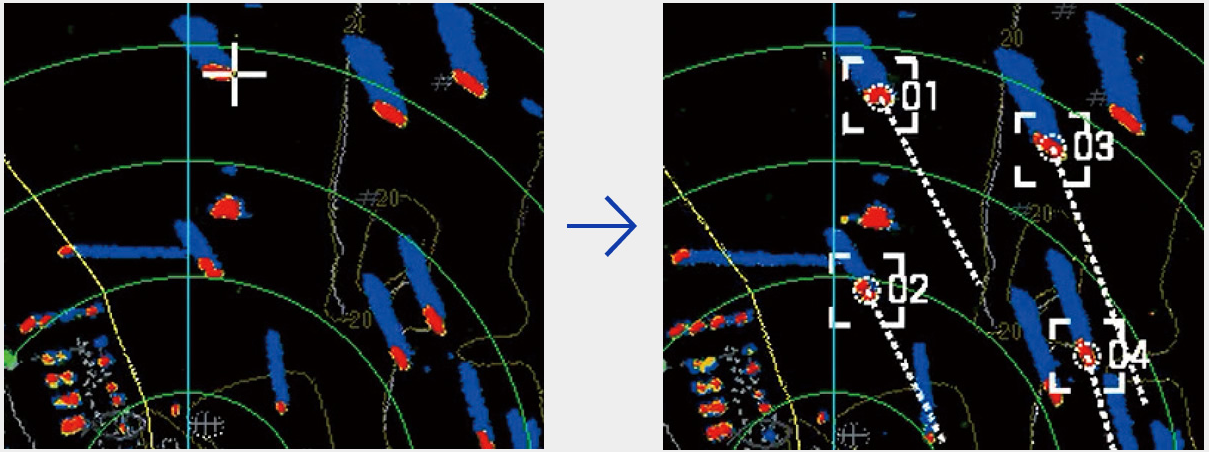

Fast Target Tracking TT :

A few seconds after the target is selected, the heading and speed vector appears.

The estimation of the direction and the speed is thus facilitated.

https://www.youtube.com/watch?v=15vAKYvVZKY

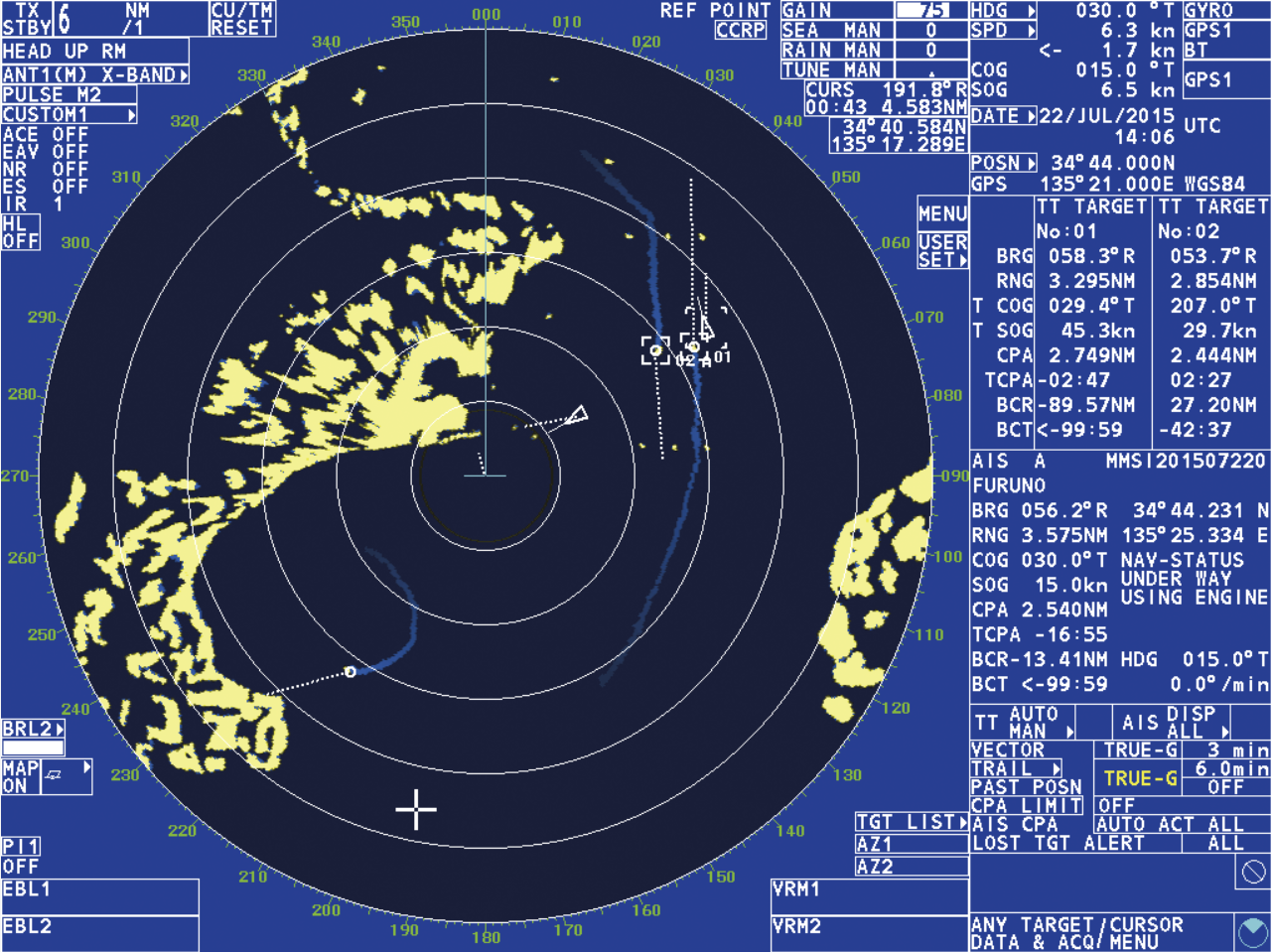

CUSTOMIZE THE DISPLAY TO YOUR NEEDS

The FAR-1513-BB offers impressive display customization and freedom. Choose how you want echoes to display to maximize visibility and efficiency.

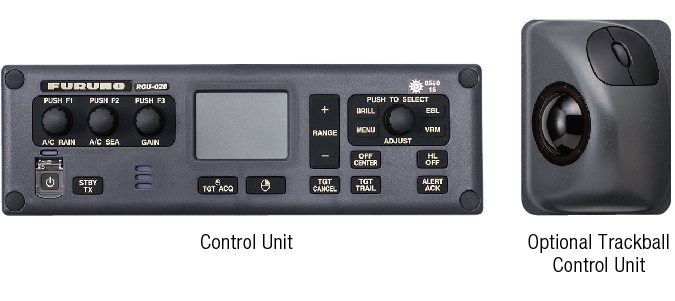

EASY-TO-USE COMPACT KEYBOARD

Individual buttons for gain/rain/sea clutter suppression as well as the Rotokey™ and a touchpad allow efficient and simple operation. An optional trackball as well as a standard USB mouse can also be used.

CUSTOMIZABLE DATA DISPLAY FOR EFFICIENT AND SIMPLE OPERATION

You can customize the display of targets to select only the information you need.

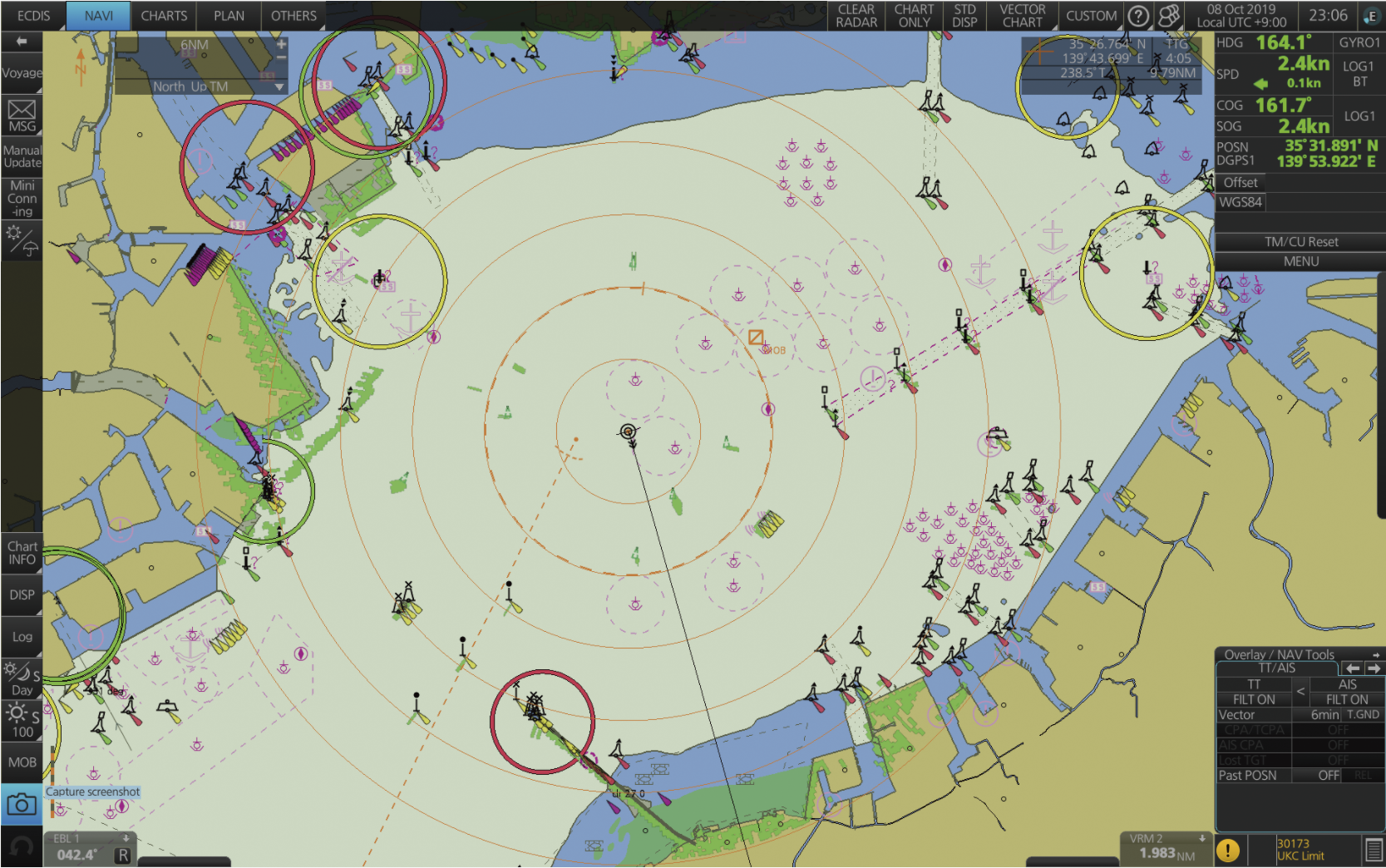

RADAR OVERLAY ON MAXSEA TIMEZERO

The FAR15X3 series allows the superposition of radar echoes (overlay) on MAXSEA TIMEZERO software. All you need is an Ethernet connection between the two devices to enable this feature.

Product advantages

The FAR15x3 professional radar range presents real advances in terms of improvements in target detection as well as in the ease of use of its user interface.

Features

The FAR1513BB RADAR is a 12kW X-band radar for non-IMO vessels.
Two radar antennas available: 4 feet and 6.5 feet

Presented in Black-Box version, without screen, it is possible to decline it in two screen sizes:

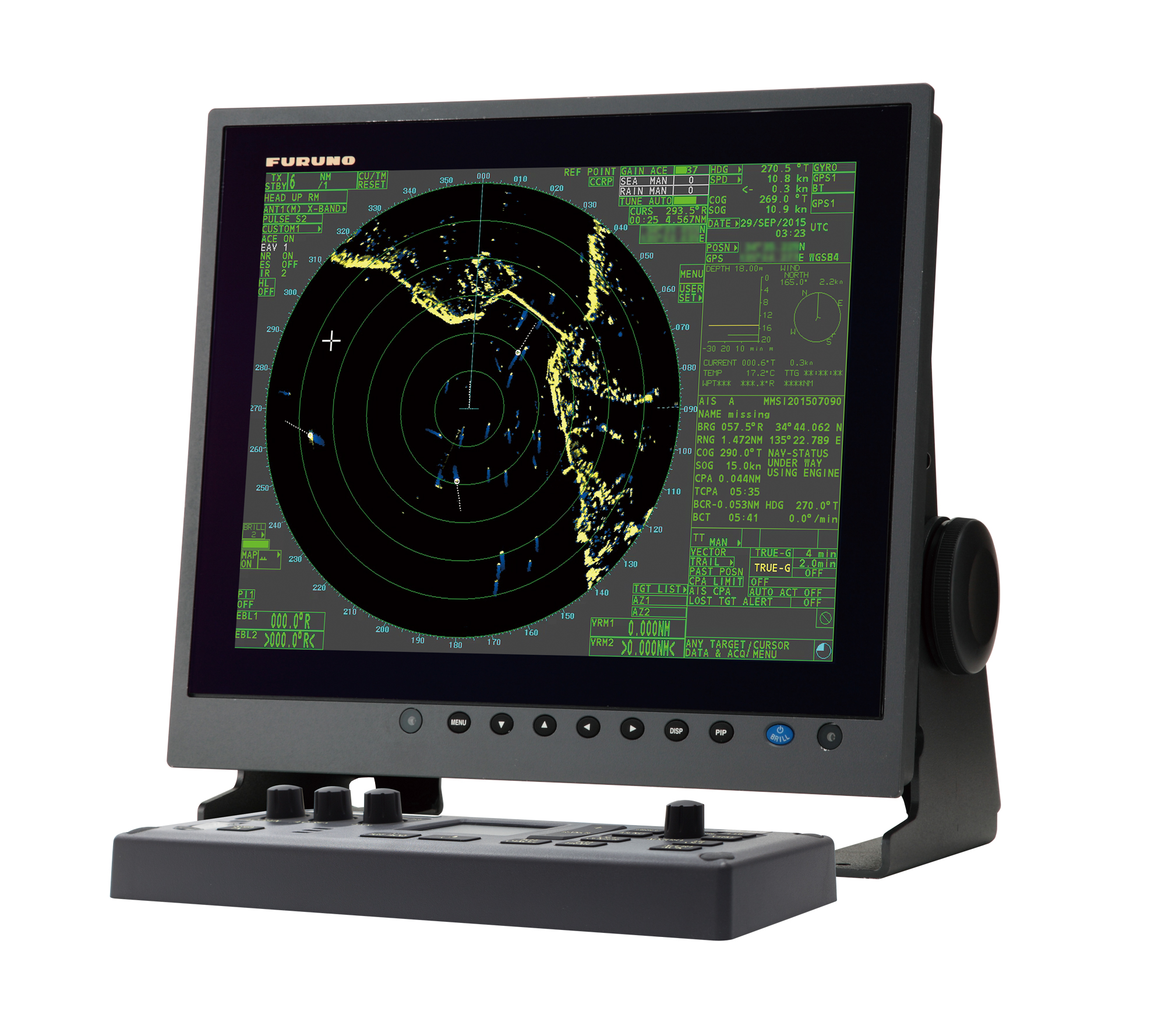

15 inch color with the MU-150HD display
19 inch color with the MU-190 display

Integrated TARGET TRACKING function (50 targets)
Display of targets from an AIS (300 targets)

In the box

1 x Processor Unit RPU-024
1 x Control Unit RCU-028
1 x DVI-D Cable Assembly 5 m
1 x Installation Materials

Technical characteristics

Antenna Rotation Speed : 24 RPM
DVI OUTPUT : 1
Power : 12k W
Power input : 24 V
Range : 96 NM
Resolution : 1024 x 768 Pixels
RGB OUTPUT : YES
Size : 4/6 ft

Parts and accessories

00001363200	PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT	NC
00002515900	PR-850A ALIMENTATION AC/DC FS2570-75/FS5070-75	NC
RCU-030	RCU-030 TRACKBALL CONTROL UNIT USB PER ECDIS & RADAR -	NC
00002870000	RSB-0070-087A-1 AERIEN	7 897,60 € With VAT (22%)
00003043900	RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP	NC
00003044300	RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V	1 276,72 € With VAT (22%)
00003049700	RU-3424 ALIMENTATION AC/DC 220VAC--->24V	2 259,68 € With VAT (22%)
HUB-100	HUB-100 SWITCH RESEAU LAN FAR-28X7	NC
00113398010	DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658	912,35 € With VAT (22%)
00116788010	LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181	83,94 € With VAT (22%)
00116789010	MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB	89,06 € With VAT (22%)
00116790010	LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181	151,72 € With VAT (22%)
00124051000	FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124052000	FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00124053000	FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0	NC
00854246000	CP03-28901 CONNECTEUR	60,52 € With VAT (22%)
00002870100	RSB-0073-087A-1 ANTENNA DRIVE UNIT FR8XXX/FAR1523/	NC
00002930400	RCU-028-NI CONTROL UNIT	NC
00003042000	RU-1803 700DOT8-6 AC440V-AC110V	1 355,81 € With VAT (22%)
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM	NC
00015794310	MJ-A3SPF0024-035C CABLE ASSEMBLY 08S0358-1	NC
00017895210	TS-10-066 CABLE ASSEMBLY 02S100580	NC
00110362010	RW-4864 1M 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE	NC
00110363010	RW-4864 5M 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE	NC
00110364010	RW-4864 10M 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE	NC
00110365010	RW-4864 15M 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE	NC
00113296010	DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4	NC
00157811000	TM000-FDX06_TXRX_30M DVI/USB_REPEATER 86S000050	NC
00157812000	TM000-FDX06_RX DVI/USB_REPEATER 86S000050	NC
00157813000	TM000-FDX06_TX DVI/USB_REPEATER 86S000050	NC
00157814000	WO2511 30M CABLE ASSEMBLY 86S000050	NC
00157815000	WO2512 50M CABLE ASSEMBLY 86S000050	NC
00157816000	WO2513 100M CABLE ASSEMBLY 86S000050	NC
00157817000	TM000-FDX06_TXRX_50M DVI/USB_REPEATER 86S000050	NC
00157818000	TM000-FDX06_TXRX100M DVI/USB_REPEATER 86S000050	NC
00157819000	TM000-FDX06_TXRX DVI/USB_REPEATER 86S000050	NC
00158956000	TS-10-068 CABLE ASSEMBLY 86S000070	NC

00107722010	3COX-2P-6C CAVO VGA RGB 10M 3COX-2P-6C 10M 10S2195	251,32 € With VAT (22%)
00107723010	3COX-2P-6C CAVO VGA RGB 5M 3COX-2P-6C 5M 10S2195	178,12 € With VAT (22%)
00142152000	CABLE ASSEMBLY RW-00224 L10M 03S002240	539,50 € With VAT (22%)
00142153000	CABLE ASSEMBLY RW-00224 L15M 03S002240	NC
00142154000	RW-00224 CAVO ANT 20M FAR-1513 RW-00224 L20M 03S002240	NC
00142155000	RW-00224 CAVO ANT 30M FAR-1513 CABLE ASSEMBLY 03S002240	NC
XN12A	XN12A	1 403,00 € With VAT (22%)
XN13A	XN13A 6' (FR8065/FR8125/XCLASS/DRS12A)	2 379,00 € With VAT (22%)

00002869800	RSB-0070-086A-1 AERIEN	NC
00002879500	RC28RP24-12KE2R2S-13 PROCESSEUR/UNITE DE CONTRï¿½	NC

00142304000	03P9405A(LF)RTB *NEW RTB PCB RTR-085/A/86/A	352,13 € With VAT (22%)
00142857000	RCU-028 PANEL PANEL ASSEMBLY -	334,38 € With VAT (22%)
00142868000	03P9547A(LF) SPU SPU ASSEMBLY -	4 318,96 € With VAT (22%)
00821061000	RSB-0070/72/73 ROTARY JOINT ASSEMBLY -	547,98 € With VAT (22%)
00822043000	RSB-0035/36/37/70/72 RADIATOR BRACKET /73/82/83/118	443,87 € With VAT (22%)
00848449000	03-1906(REED SW-2P) ILS AVEC CONNECTEUR NH RSB-0070/72/73 - Replaced by 00149921000	72,64 € With VAT (22%)
00855397000	03P9236(LF) PTU PRINTED CIRCUIT BOARD FR-8122	598,81 € With VAT (22%)
00855646000	03P9404B(LF) PRINTED CIRCUIT BOARD RTR-086/A/87/A	1 194,81 € With VAT (22%)
00857027000	RU-9792 RTR085/86/87 MIC ASSEMBLY RTR059A/64A	1 208,93 € With VAT (22%)
00114622000	05-106-5611/12/13 DISTRESS SWITCH COVER ASSY FS-2575C	80,43 € With VAT (22%)
00116956000	MU3955N1 BALL TAS4728N1 SP	233,76 € With VAT (22%)
00116957000	MU3955N2 RING UNIT TAS4728N1 SP	227,85 € With VAT (22%)
00116958000	MU3955N3 BALL&RING UNIT TAS4728N1 SP	455,71 € With VAT (22%)
00118312000	RU-9792/9099 RTR085A MIC WITH DIODE LIMITER 086A/87A59A/64A	1 831,96 € With VAT (22%)
00118316000	RT-9025 W/HARNESS PULSE TRANSFORMER ASSEMBLY RTR-086A	652,48 € With VAT (22%)
00119462000	03-2350(10-10P) PH CONNECTOR ASSEMBLY	42,37 € With VAT (22%)
00128073000	MU3955N4 BOARD RCU-030 SP	145,27 € With VAT (22%)
00128074000	MU3955N5 TAPPING SCREWS RCU-030	44,38 € With VAT (22%)
00128075000	MU3955N6 SEMS SCREW RCU-030	44,38 € With VAT (22%)
00132486000	03P9523(LF) MD PRINTED CIRCUIT BOARD RTR-086A	836,08 € With VAT (22%)
00132488000	03P9523(LF)HEAT SINK MD BOARD WITH HEAT SINK RTR-086A	934,95 € With VAT (22%)
00141692000	24-045(BUZZER-2P) BUZZER ASSEMBLY CHINA	164,64 € With VAT (22%)
00141701000	03-177-2034/#6601-P KNOB (W/D SPRING) CHINA - Replaced by 00160547000	66,44 € With VAT (22%)
00142312000	03P9576(LF) FIL *NEW PRINTED CIRCUIT BOARD RPU-023/024	782,41 € With VAT (22%)
00142328000	RTR-086A-1 RF MODULE E3566/MAF1425B	7 139,79 € With VAT (22%)
00142846000	RPU-024 DC FIL DC FIL ASSEMBLY	1 189,16 € With VAT (22%)
00142849000	03P9547A(LF) SPU PLATINE SPU SEULE RPU-024 - Replaced by 00161716000	4 270,40 € With VAT (22%)
00142853000	03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD RPU-024 - Replaced by 00161719000	1 931,49 € With VAT (22%)
00142854000	SP03-18001 SPARE PARTS RPU-024(DC)	28,24 € With VAT (22%)
00142856000	03P9528B(LF) KEY PCB PLATINE RCU-028 - Replaced by 00161683000	635,53 € With VAT (22%)
00142858000	CP03-36601 INSTALLATION MATERIALS RCU-028	28,24 € With VAT (22%)
00142863000	03P9497C(LF) PWR(DC) PRINTED CIRCUIT BOARD	2 471,26 € With VAT (22%)
00142871000	03P9497C(LF)PWR ASSY PWR ASSEMBLY (DC) RPU-024	2 854,60 € With VAT (22%)
00149921000	03-1906(REED SW-2P) REED SWITCH W/NH-CONNECTOR RSB-0070/72/73	72,64 € With VAT (22%)
00150323000	RT-9025A W/HARNESS PULSE TRANSFORMER ASSEMBLY RTR-086A	652,48 € With VAT (22%)
00150328000	03P9523A(LF HEATSINK MD BOARD WITH HEAT SINK RTR-086A	934,95 € With VAT (22%)
00150332000	03P9523A(LF) MD PRINTED CIRCUIT BOARD RTR-086A	836,08 € With VAT (22%)
00150343000	RTR-086A-1 RF MODULE E3566/MAF1425B	7 139,79 € With VAT (22%)
00155364000	TB5211 50G ADHESIVE	48,42 € With VAT (22%)
00160547000	03-177-2034 KNOB ASSEMBLY	66,44 € With VAT (22%)
00161431000	RPU-024/027 DC FIL DC FIL ASSEMBLY CHINA 03P9576	1 189,16 € With VAT (22%)
00161683000	03P9528B(LF) KEY PRINTED CIRCUIT BOARD CHINA RCU-028	635,53 € With VAT (22%)
00161716000	03P9547A(LF) SPU PRINTED CIRCUIT BOARD CHINA RPU-024	4 270,40 € With VAT (22%)
00161719000	03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD CHINA RPU-024	1 931,49 € With VAT (22%)
00848976000	RSB-0070 (LESS RF) SCANNER ASSEMBLY (LESS RF) 24RPM	4 486,28 € With VAT (22%)
00848977000	RSB-0073 (LESS RF) SCANNER ASSEMBLY (LESS RF) 48RPM	5 021,34 € With VAT (22%)
00852369000	CP03-22901 INSTALLATION MATERIALS XN10A/12A/13A	225,97 € With VAT (22%)

OMFR-904	MU FAR15x3_15x8_BB Manuel d'utilisation Franï¿½?a	NC

Downloads

FAR15X8-15X3 ENGLISH (15.6 Mo)

FAR-15x3 ENGLISH (1.6 Mo)
