RV1 12V

Drive units Ref : LE-2200843

Reversible Power Packs with Adjustable Flow - 12V, 0,1 to 1L/min

PRICE : NC


Product advantages

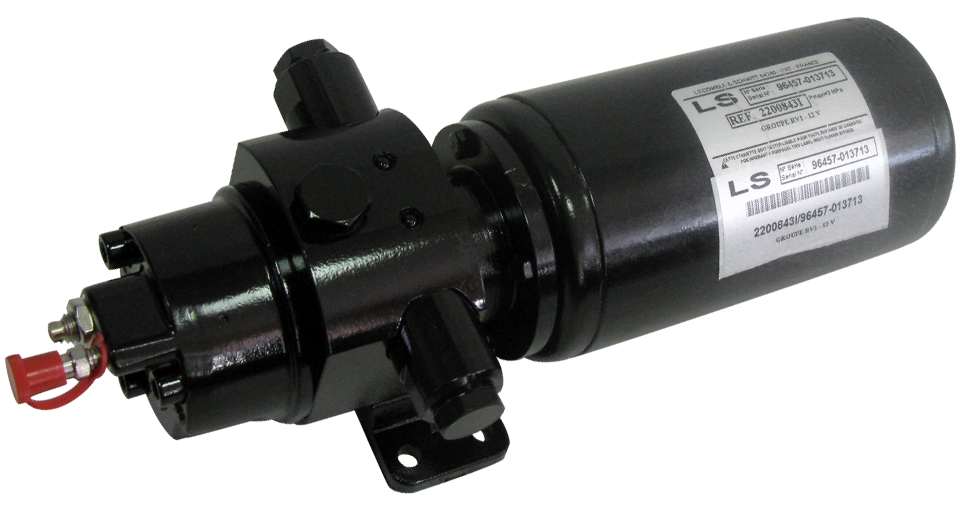

The RV112V is a hydraulic reversible Power Packs with adjustable flow in 12 V for pleasure, fishing and work boats. They are reversible by changing the polarity on the motor terminals. Flow adjustment is done through a screw which allows accurate regulation of the time required for lock to lock displacement. These power packs are fitted with lock valves.


In the box

1 X Reversible Group RV1 with adjustable flow 12 volts
1 X Installation manual in English

Technical characteristics

Cylindrée max vérin : 216 cm3
Debit : 0.1-1 L/min
Max cylinder consumption : 16 A
Power input : 12 V
Type : Groupe réversible barre hydraulique
