TZT14
Multifunction displays Ref : IMD03345004NavNet TZtouch 14.1" Multi Touch, Multi Function Display W/3M LAN Cable (GPS/WAAS receiver, UHD Radar, and Network Fish Finder can be added.)
PRICE : NCDescription
Nothing is faster than TimeZero
NavNet TZtouch’s TimeZero™ technology delivers chart processing like you’ve never seen before – seamless chart handling, zooming and panning without the screen disappearing. TimeZero™ technology redefines the meaning of stress-free operation by smoothing out your chart handling actions.
Equipped with powerful TimeZero™ technology, NavNet TZtouch will completely transform the way you navigate. You can scroll, pan, zoom in/out with a smooth, fast and seamless graphics engine. Navigating in a fully 3D environment offers you a true perspective and wider area of view around the ship, which allows you to better plan your routes, while TimeZero technology updates the information on your screen with virtually no redraw.
TZtouch Delivers A Huge Step Forward In Touch Screen Technology
Today's NavNet has come a long way from the first multi function display. Take one look and you will see just how far. A generous 9" or 14.1" display with edge-to-edge glass makes for a clean and stylish installation. The LED backlighting pushes light through every pixel on the screen for remarkable brightness. Anti-reflective glass coating is visible under any lighting condition. Configure the displays with a wide variety of sensors to build a navigation suite that meets your individual requirements.

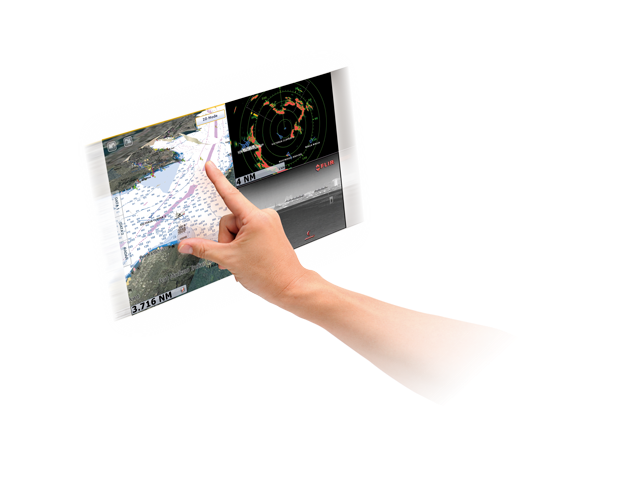

Pinch to zoom and other intuitive gestures
Be more hands-on with our easy-to-understand touch screen interface. TZtouch brings you pinch-to-zoom capability, as well as other multi touch gestures for the most intuitive navigation experience. You'll have full control of each component connected to the network right at your fingertips. Navigation is simplified by using your fingers to zoom and pan around the chart. As soon as your fingers touch the display, taps, pinches and swipes are instantly transformed into action. You will learn your controls so quickly that you'll be up and running in no time. To make operation even easier while underway, adjustments such as range and gain are easily made from either the on-screen touch menu or our patented RotoKey™.
Remotely view and control your bridge with apps for your smartphone and tablet
Engineered to utilize the latest technology, NavNet TZtouch opens the door to cutting edge WiFi features, such as tablet and smartphone apps, points of interest (POI), real time weather data, software updates and more. Take full control of your NavNet in a whole new way. The TZtouch Remote app allows you to operate your system remotely with your smartphone or tablet over WiFi, when connected to the network.

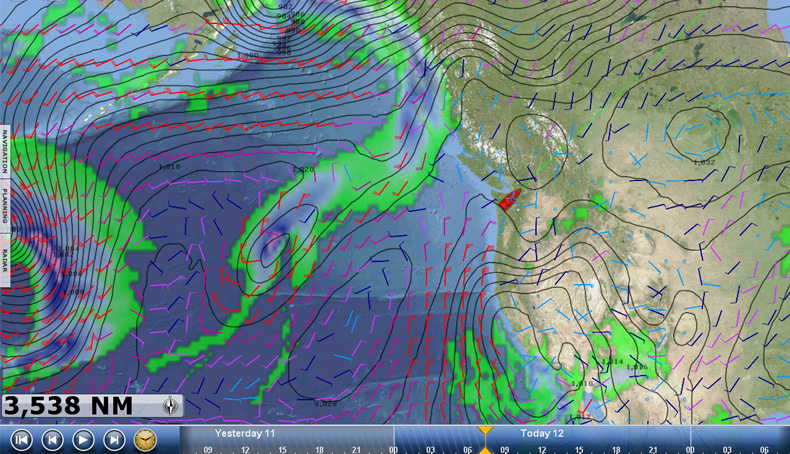

Free & easy-to-use marine weather forecasts
The weather tool is completely free and easy to use, giving you unlimited access to weather forecasts worldwide 24 hours a day provided by NavCenter. Select geographic coverage, data type, period of time, and then choose how to receive the file. NavNet TZtouch provides up to 16 days of weather forecasting.
Bonded LCD - Clear Readability
Our bonded LCDs offer a fog-free structural design that has been applied to both the TZT9 and TZT14. This ensures the display will never be affected by water condensation, caused by an air gap between the LCD and the front cover plate.
Polarized Friendly - Clearly Remarkable
NavNet TZtouch TZT9 and TZT14 have an LCD screen that does not "black out" when wearing polarized sunglasses, providing clear visibility from virtually any angle.
Product advantages
Pinch-To-Zoom - Multi Touch Control - RotoKey
Tablet & Smartphone Apps
Marine Weather Forecast
Bonded LCD - Clear Readability
Polarized Friendly - Clearly Remarkable
NavNet TZtouch Radar Sensor (Options) : Target Tracking/AIS + Real-Time Digital Auto Gain/Sea Controls + Real-Time Dual Range Radar Presentation with Dual Progressive Scan + Radar-Chart Overlay
Dual DRS4D-NXT, the NXT step in Radar technology + Fast Target Tracking? + X-Class series a whole new class of Radar + Bird Mode
NavNet TZtouch Fish finder (Options) : FURUNO Digital Filter (FDF?) Fish Finder + ACCU-FISH? (Fish Size Analyzer) + Bottom Discrimination + Multi Beam Sonar Innovative tool for exploring a wide range of water column and seabed + Find More Fish With TruEcho CHIRP? Fish Finder
The Only Acceptable Wait Time is Zero: TimeZero? Technology Changes Your Perspective on Chart Redraw + Satellite PhotoFusion + Screen Capture With Event + Fuel Max Range
In the box
1 X Multi Function Display
1 X White Plastic Cover
1 X Spare Parts
1 X Installation Manual
1 X Operator's Guide
1 X Operator's Manual on CD
1 X LCD Cleaning Cloth
1 X Installation Materials
1 X 18 Pin Cable Assembly 2 m
1 X LAN Cable Assembly 3 m
1 X PWR Cable Assembly 5 m
Technical characteristics
Brightness : 900 cd/m2
Consuption : 60 W
LAN : 3
NMEA2000 : 1
Power input : 12/24 V
Resolution : 1280x800 Pixels
Screan size : 14
Video INPUT : 2
Video OUTPUT : 1
Waterproof : 56 IP
Weight : 7,1 Kg
Videos
Parts and accessories
| 00110580010 | M12-05BFFM-060 M12-05BFFM-060 19S1163 - Replaced by 00150704000 | 94,43 € With VAT (22%) |
| 00016860410 | TERMINATION RESISTOR(MICRO) LTWMC-05BMMT-SL8001 MALE NMEA2000 - Replaced by 00150707000 | 42,37 € With VAT (22%) |
| 00016860510 | TERMINATION RESISTOR(MICRO) LTWMC-05BFFT-SL8001 19S1186-0 - Replaced by 00150706000 | 42,37 € With VAT (22%) |
| RO-00058 | SD208-I2-DD-AL ALIM. CRISTEC CONVERTISSEUR CONTINU 24V-48V 200W/4A/PC RADAR (DRS2D/DRS4D) | NC |
| RO-00057 | SD208-I1-DD-AL ALIM. CRISTEC CONVERTISSEUR CONTINU 12V-48V 200W/4A/RADAR PC (DRS2D/4D) | NC |
| 00107783010 | FRU-0505-FF-IS TERMINAISON EN LIGNE F/F NMEA2000 - | 36,60 € With VAT (22%) |
| 00110575010 | CABLE ASSEMBLY M12-05BM+05BF-010 19S1162 - Replaced by 00153306000 | 66,44 € With VAT (22%) |
| 00110578010 | M12-05BFFM-010 M12-05BFFM-010 19S1163 | 64,56 € With VAT (22%) |
| 00110579010 | M12-05BFFM-020 M12-05BFFM-020 19S1163 - Replaced by 00150703000 | 72,64 € With VAT (22%) |
| 00016860310 | MICRO T-CONNECTOR SS-050505-FMF-TS001 NMEA2000 - Replaced by 00150705000 | 115,40 € With VAT (22%) |
| 00113296010 | DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4 | NC |
| 00113398010 | DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658 | 912,35 € With VAT (22%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 83,94 € With VAT (22%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 89,06 € With VAT (22%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 151,72 € With VAT (22%) |
| AI-33-580-01 | CONNECTEUR MICRO-T NMEA2K FICHE EN T M/F/F (MICRO5C) NN3D/TZT/TZT2/FI70/SC30 | NC |
| AI-33-579-01 | TERMINAISON MALE NMEA2K TERMINAISON NMEA2K M (MICRO5) NN3D/TZT/TZT2/FI70/SC30 | NC |
| 00003044300 | RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V | 1 276,72 € With VAT (22%) |
| 00001176200 | HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation) | 963,80 € With VAT (22%) |
| 00001313600 | NMEA2000 NMEA183 INTERFACE | 1 155,27 € With VAT (22%) |
| 00001348600 | PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT | 750,30 € With VAT (22%) |
| 00002051000 | IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Replaced by 00003767000 | 369,89 € With VAT (22%) |
| PSU-012 | PSU-012 BLOC ALIMENTATION 24/48V DRS12A - PC,TZT&TZT2 | 1 355,81 € With VAT (22%) |
| PSU-017 | POWER SUPPLY UNIT PSU-017 CHINA | 754,17 € With VAT (22%) |
| MCU-002 | Remote controle TZTL12F TZTL15F TZT2BB TZT12F TZT16F TZT19F | 206,18 € With VAT (22%) |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00008644300 | OP03-136 OP03-136 - | 122,40 € With VAT (22%) |
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 250,10 € With VAT (22%) |
| 00016050710 | NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 | 135,58 € With VAT (22%) |
| 00016050810 | LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 | 60,52 € With VAT (22%) |
| 00016714010 | JOINT BOX TL-CAT-012 - | 37,66 € With VAT (22%) |
| 00016717110 | MOD-Z073-030+ CAVO LAN 3M RJ45/RJ45 PER HUB 19S1146-0 - Replaced by 00158889000 | 83,94 € With VAT (22%) |
| 00016797110 | CB-05BFFM-010 CB-05BFFM-010 19S1165-0 | 80,43 € With VAT (22%) |
| OD-STARTER-KIT | KIT DE DEMARRAGE NMEA2000 CERTIFIE | NC |
| 00016460910 | MOD-WPAS0001-030+ MOD-WPAS0001-030+ 19S1129-0 | 138,81 € With VAT (22%) |
| 00002753100 | TZT14-EU MULTI FUNCTION DISPLAY CHINA | NC |
| M612L | M612L CAMERA THERM.&DIURNE 640x480 9 Hz PAL - Replaced by | NC |
| DFF1-UHD | Black Box Sounder 1 kW CHIRP 50±20 & 200±25 kHz for NAVnet TZtouch | 2 427,80 € With VAT (22%) |
| PG700 | NMEA2000 Rate Compensated Heading Sensor w/ 6M NMEA2000 Cable | 719,80 € With VAT (22%) |
| BBDS1 | Black Box Sounder with BDS 1 kW 50/200 kHz for NNTZT and TZT2 | 1 207,80 € With VAT (22%) |
| GP330B/NMEA2000 | Active GPS/SBAS receiver antenna - NMEA2000 ( NMEA0183 cable in option) A high performance NMEA2000 GPS Receiver designed for any type of vessel. | 585,60 € With VAT (22%) |
| DRS12A | RADAR SENSOR DRS12A FURUNO SANS CABLE NI RADIATEUR | NC |
| DRS6A | DRS6A/LESS CBL ANTENNE DRS6A 4'/6KW/64MN SANS CABLE | NC |
| DRS4A | DRS4A/LESS CBL ANTENNE DRS4A 3.5'/4KW/48MN SANS CABLE | NC |
| DRS4D | RADAR SENSOR DRS4D FURUNO SANS CABLE | NC |
| DRS2D | RADAR SENSOR DRS2D FURUNO SANS CABLE | NC |
| FA30 | The FA-30 delivers "Real-Time" AIS information to navigation systems providing critical collision avoidance information in all weather conditions - Replaced by IMD040100AA | NC |
| FA50 | AIS Black Box Transmitter / Receiver (NMEA or Ethernet) - Replaced by IMD031500AA | NC |
| DFF1 | Black Box Sounder 1 kW 50/200 kHz for NNTZT and TZT2 | NC |
| SC30 | Satellite Compass NMEA2000 | NC |
| M625L25 | M625L25 CAMERA THERM.&DIURNE 640x480 25 Hz PAL - Replaced by | NC |
| M324L25 | THERMOCAMERA M324L 25HZ PAL FLIR - Replaced by | NC |
| M625XP | FLIR M625XP -9HZ PAL THERMOCAMERA - Replaced by | NC |
| M324XP | THERMOCAMERA M324XP 9HZ PAL FLIR - Replaced by | NC |
| 200WX | WeatherStation Instrument - Replaced by AI-44-854-1-03 | NC |
| DFF3D/B54 | Black Box Sounder Multi-Beam 800 W 165 kHz for NNTZT and TZT2 - Replaced by IMD03357000/B54 | NC |
| DRS6A-NXT | 25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable. | 7 307,80 € With VAT (22%) |
| DRS4DL+ | ANTENNA RADAR RADOME 4 kW - Replaced by IMD03660001 | NC |
| 00015966211 | CR-2032L/BK LI-METAL BATTERY 0.07G | 23,53 € With VAT (22%) |
| 00104382000 | 19P1039 NMEA2K PRINTED CIRCUIT BOARD IF-NMEA2K1 | 1 175,03 € With VAT (22%) |
| 00102645000 | KNOB(N2.5) KNOB MFDBB | 44,38 € With VAT (22%) |
| 00017665310 | B8304870 THERMAL PAD 19S112800 | 94,43 € With VAT (22%) |
| 00120056000 | TZT9/14 ROTOKEY TZT ROTOKEY CHINA | 76,93 € With VAT (22%) |
| 00120045000 | 19P1064(LF) CON PRINTED CIRCUIT BOARD CHINA TZT9/14 | 547,98 € With VAT (22%) |
| 00120054000 | TZT9/14 CARD SLOT SDXC CARD SLOT CHINA | 819,13 € With VAT (22%) |
| 00146197000 | TZT14 PANEL/19P1070A LCD ASSEMBLY - - Replaced by 00152192000 | 2 154,78 € With VAT (22%) |
| 00142148000 | TZT14 PANEL/19P1070A LCD ASSEMBLY - - Replaced by 00146197000 | 2 154,78 € With VAT (22%) |
| 00120132000 | TZT9/14/BBCFAST CARD CFAST CARD WITH SOFTWARE CHINA | 1 175,03 € With VAT (22%) |
| 00120065000 | 19P1067 PNL PNL BOARD SET CHINA TZT14 | 550,79 € With VAT (22%) |
| 00120064000 | TZT14 CPU CPU ASSEMBLY CHINA | 6 050,31 € With VAT (22%) |
| 00120062000 | 19P1072(LF) HUB PRINTED CIRCUIT BOARD CHINA TZT14 | 1 234,76 € With VAT (22%) |
